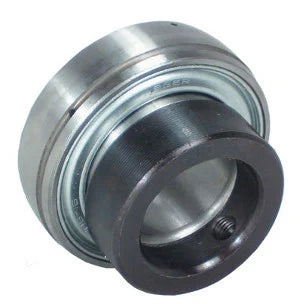

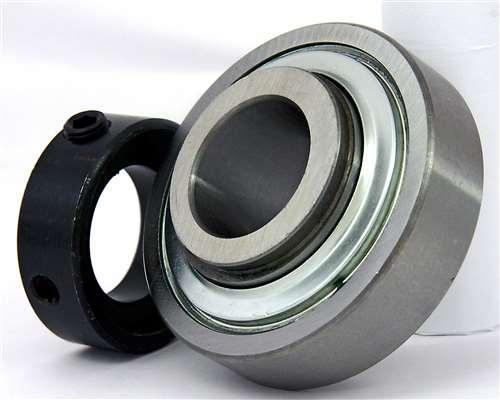

FH204-12G Insert Bearing Eccentric Locking Collar 3/4 Inch Bearing
FH204-12G Insert Bearing Eccentric Locking Collar 3/4 Inch Bearing
Regular price
$35.99 USD
Regular price
$39.99 USD
Sale price
$35.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
FH204-12G Insert Bearing Eccentic Locking Collar 3/4" inch Inner Diameter |
FH204-12G Insert Bearing, bearing is Eccentic Locking Collar, bearing is narrow inner ring with Spherical outer ring, bearing is standard load capacity, bearing is relubrication groove with oil hole on locking collar side(shown), bearing is oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screws, Standard seal is RST tight riiding, full cover and metal shroud seals.
|

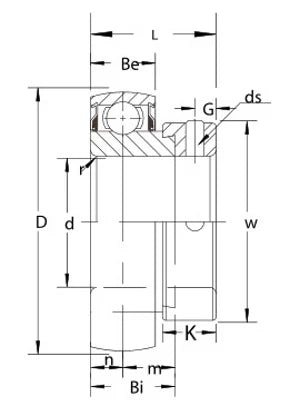

| Dimensions (inches) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | Bi | Be | r | n | m | W | K | G | ds(UNF-Thread) |
| 1-55/64" | 1-7/32" | 27/32" | 19/32" | 1/16" | 19/64" | 35/64" | 1-1/4" | 17/32" | 3/16" | 1/4-28x1/4" |
