Female Rod End PHSB5 5/16 Right hand Joint

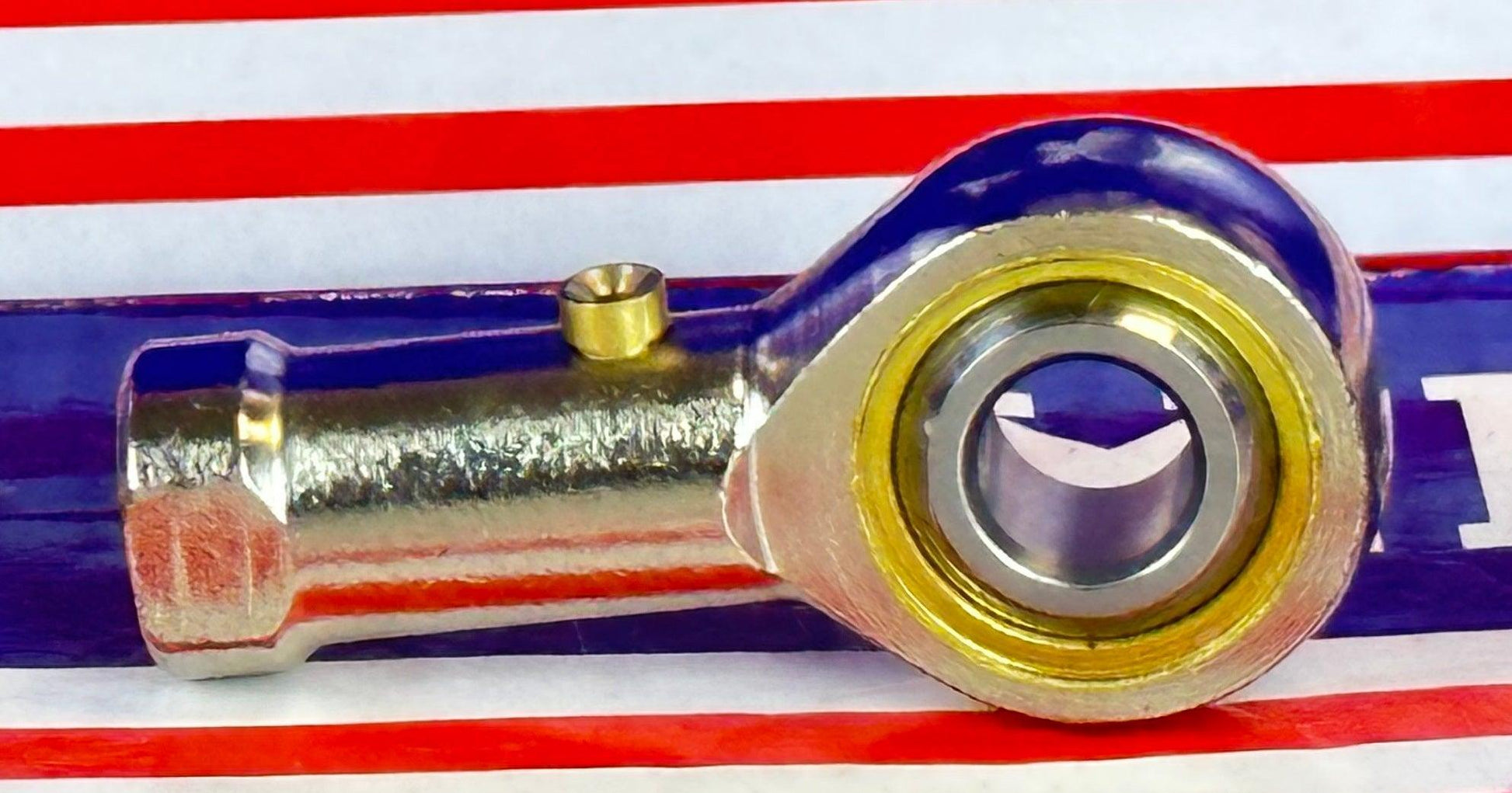

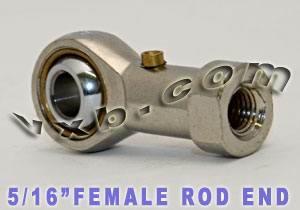

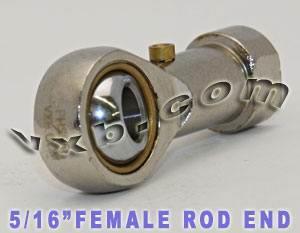

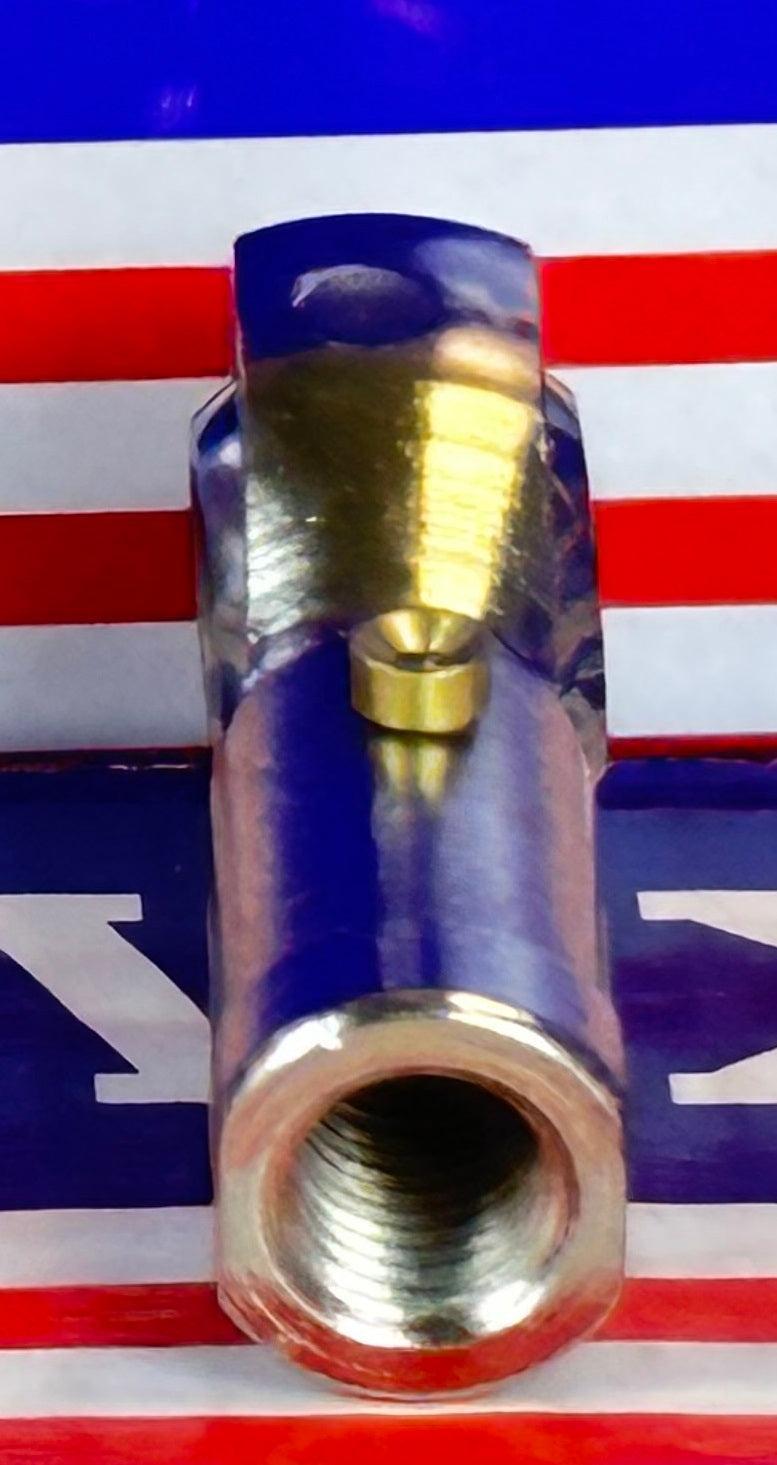

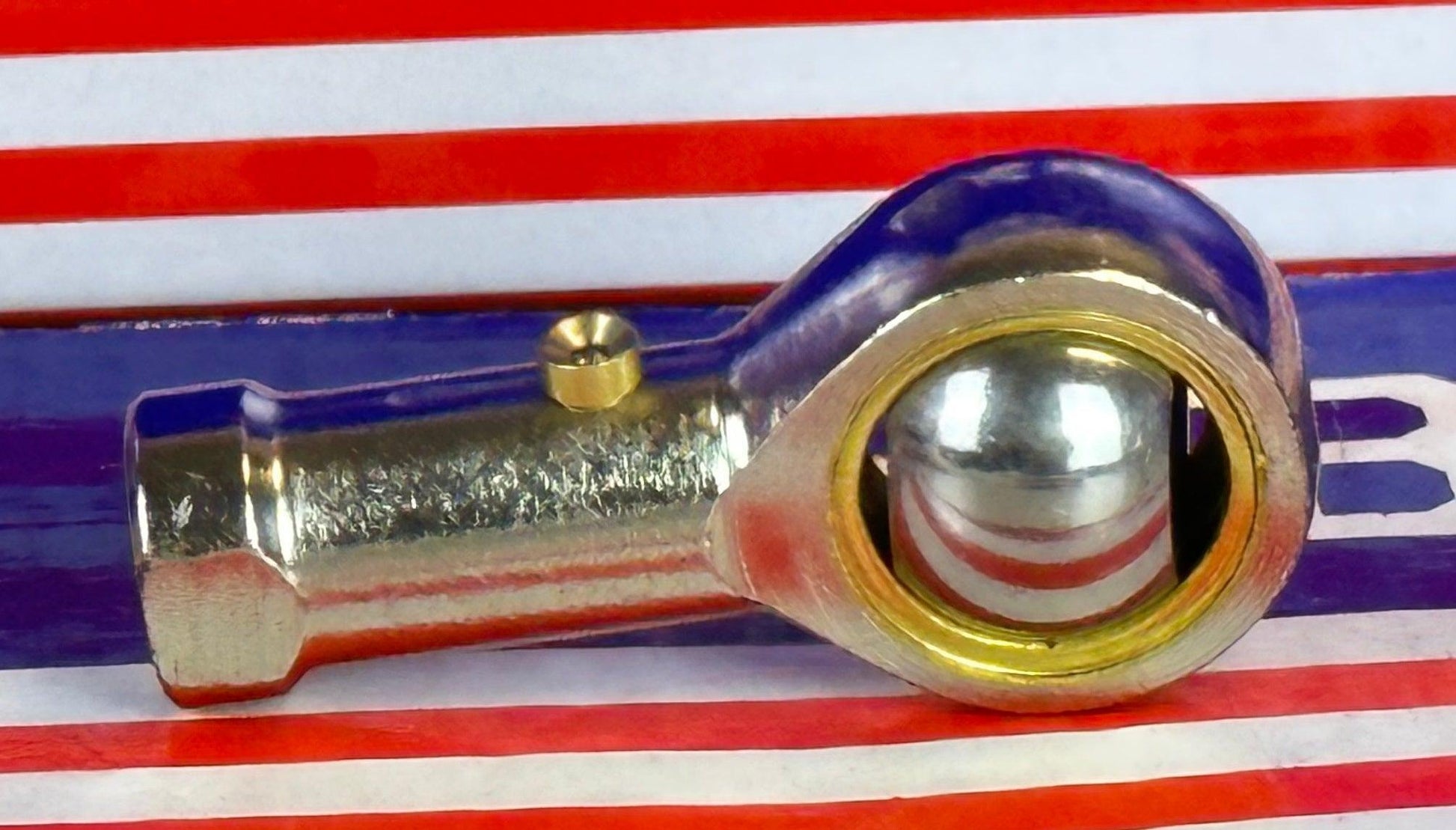

PHSB5 Female Rod End Bearing
 💡 Right Hand - 5/16" UNF Thread - Works with 5/16" Shafts

This PHSB5 right-hand female rod end bearing is designed for motion control applications requiring reliable articulation and strength. With a 5/16" internal bore and UNF threads, it's perfect for linkage systems in steering, suspension, automation, and more.

✅ Thread: 5/16"-24 UNF (Right-Hand)
✅ Bore Diameter: 5/16"
✅ Ball Diameter: 5/8"
✅ Dynamic Load Rating: 6.9 kN
✅ Static Load Rating: 8.4 kN
✅ Material: Durable Steel Construction
✅ Quantity: 1 Rod End

💡 What is a female rod end used for?
Female rod ends provide a strong and adjustable connection point in control linkages and pivot systems. They’re widely used in automotive, industrial, and robotic applications where precise movement and load-bearing joints are needed.
