Female Rod End 4mm Red PHS4 Right Hand Mini Heim Joint
Female Rod End 4mm Red PHS4 Right Hand Mini Heim Joint
Couldn't load pickup availability
Red PHS4 Female Rod End Bearing
✔️ 4mm ID - M4x0.7 Thread - Right Hand
This PHS4 right-hand female rod end features a 4mm inner diameter and M4x0.7 threaded housing, ideal for miniature linkage applications like RC builds, robotics, or light mechanical control arms. Its bold red finish adds visibility and style.
✅ Pack size: 1 bearing
✅ Type: Female rod end (Heim joint)
✅ Thread: M4 x 0.7, right-hand
✅ Inner diameter (d): 4mm
✅ Color: Red
✅ Dynamic load capacity: 170 KGF
✅ Static load capacity: 190 KGF

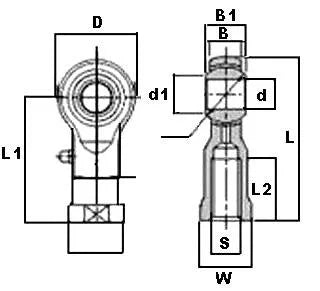

Dimensions (mm):
| d | Thread | S | D | B | B1 | d1 | L | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|
| 4 | M4x0.7 | 14 | 5.25 | 7 | 6.5 | 31 | 24 | 8 |
💡 What makes miniature rod ends like the PHS4 great for small-scale linkages?
-
Threaded design provides easy installation in tight assemblies.
-
Spherical joint allows smooth pivoting and angular motion.
-
Ideal for lightweight applications like RC models or compact mechanisms.
Small but strong - designed to handle motion in places where precision and compact form factor matter.
