E5034X NNTS1 Nachi Sheave Bearing 2-Row Full Complement Bearing

E5034XNNTS1 Nachi Sheave Bearing, E5034XNNTS1 Nachi is a double row full Complement cylindrical roller bearing, E5034XNNTS1 Nachi has hightest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, E5034XNNTS1 Nachi lubricates with a lithium soap-based grease containing an EP additive, E5034XNNTS1 Nachi lubricates through lubrication hole & grooves only in inner ring.

• E5034XNNTS1 Nachi Sheave Bearing
• Double Row Full Complement Cylindrical Roller Sheave Bearing

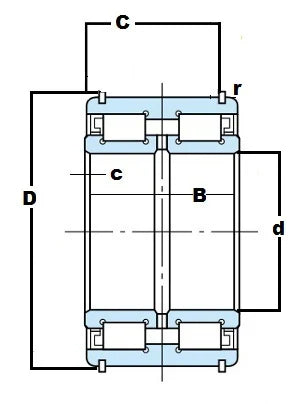

• Dimensions: 170mm x 260mm x 122mm/Metric
• ID (inner diameter)/Bore: 170mm
• OD (outer diameter): 260mm
• Width: 122mm
• Size: 170 x 260 x 122 mm
• Snap Ring: WRE 260 (not included)
• Quantity: 1 Bearing
• Dynamic load rating Cr: 850,000 N
• Static load rating Cor: 1,730,000 N
• Limiting Speed:
  • Grease Lubrication: 600 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Application: Highly suitable in rope sheave
• Snap Ring: WRE 260
• E5034XNNTS1 = SL04 5034 PP
• E5034XNNTS1 = NNF5034 ADA-2LSV
• E5034XNNTS1 = NAS5034UUNR
• E5034XNNTS1 = NNF5034EDA.2LS.V
• Made in Japan
