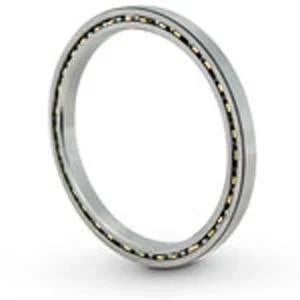

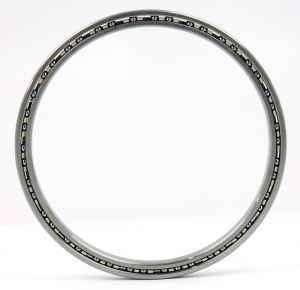

CSCG080 Thin Section Bearing 8" x 10" x 1" inch Open Slim

CSCG080 Thin Section Bearing 8" x 10" x 1" inch Open Slim

$410.35 USD
$455.94 USD $410.35 USD
Sale Sold out
Shipping calculated at checkout.
CSCG080 Ball Bearing
Chrome Steel : Brass Cage

CSCG080 Thin Section Open Ball Bearing with 8" Inch cross section width, the dimensions are 8" x 10" x 1" inch, CSCG080 bearing has Brass balls retainer, CSCG080 bearing is oil preserved.

  • CSCG080 Ball Bearing
  • Deep groove Radial Ball Bearing
  • Material: Chrome Steel
  • Cage: Brass
  • Closures: Open
  • Dimensions: 8" x 10" x 1" Inch
  • ID (inner diameter)/Bore: 8" inch
  • OD (outer diameter): 10" inch
  • Width: 1" inch
  • Size: 8" x 10" x 1" inch
  • Cross Section: 1" inch
  • Dynamic load rating: 31120 N
  • Static load rating: 75927 N
  • Quantity: 1 Bearing



💡 Why choose thin section bearings? Because they offer high precision and smooth performance in compact spaces - ideal for applications where saving space and reducing weight is critical, such as robotics, aerospace, and automation systems.
