B542 Extra Light Torque Tube Type Airframe Control Bearing 1.3125" x 1.75" x 0.25"

B542 Extra Light Torque Tube Type Airframe Control Bearing 1.3125" x 1.75" x 0.25"

$13.99 USD
$19.99 USD $13.99 USD
Sale Sold out
Shipping calculated at checkout.
B542 Extra Light Torque Tube Type Airframe Control Bearing
1 5/16" x 1 3/4" x 1/4" inch
NON-AIRCRAFT USE!




B542 Single row, extra light duty Air-frame control Ball Bearing

  • Extra light duty
  • Single row ball bearing
  • Open Type
  • Full complement.
  • 1.3125"x 1.75"x 0.25" inch
  • 1 5/16" x 1 3/4" x 1/4" inch
  • Lubricated with a preservative
  • made of chromium-alloy, high carbon steel and not cadmium plated
  • Quantity: 1 Bearing

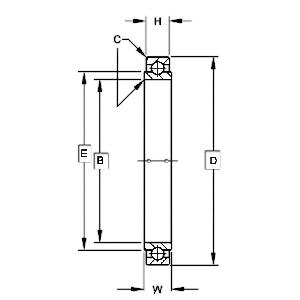

Bore B(in.) Outside Diameter D(in.) Inner Ring Width H(in.) Outer Ring Width W(in.) E C Radial Limit Load Rating Thrust Limit Load Rating
1.3125" 1.75" 0.250" 0.281" 1.454" 0.015" 5950lbs 2700Nlbs
