• AS50 One-Way 50x90x20 Bearing Support Required Backstop Clutch
1 1

VXB

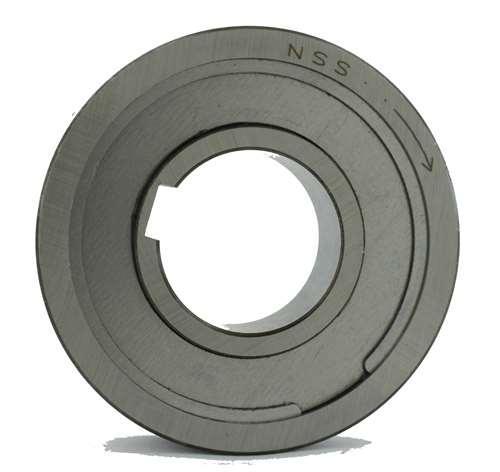

AS50 One-Way 50x90x20 Bearing Support Required Backstop Clutch

AS50 One-Way 50x90x20 Bearing Support Required Backstop Clutch

$169.99 USD
$188.88 USD $169.99 USD
Sale Sold out
Shipping calculated at checkout.
AS50 One Way Clutch
One Clutch


 AS50 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. AS50 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • AS50 Clutch
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • Dimensions: 50mm x 90mm x 20mm (Metric)
  • Inner Diameter: 50mm
  • Outer Diameter: 90mm
  • Width: 20mm
  • Torque: 184 TKN
  • Resistance Torque: 13 TKN
  • Inner Race Overrun: 950 RPM
  • Outer Race Overrun: 1,500 RPM
  • Quantity: One Clutch


Dimension (mm)
d D D1 L s e f
50 90 82 20 2.5 1.2 1
