AS45 One-Way 45x85x19 Bearing Support Required Backstop Clutch

AS45 One-Way 45x85x19 Bearing Support Required Backstop Clutch

$134.99 USD
$149.99 USD $134.99 USD
Sale Sold out
Shipping calculated at checkout.

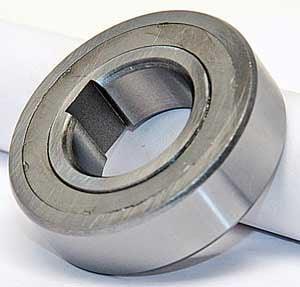

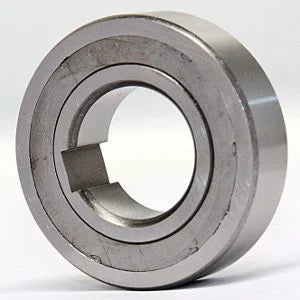

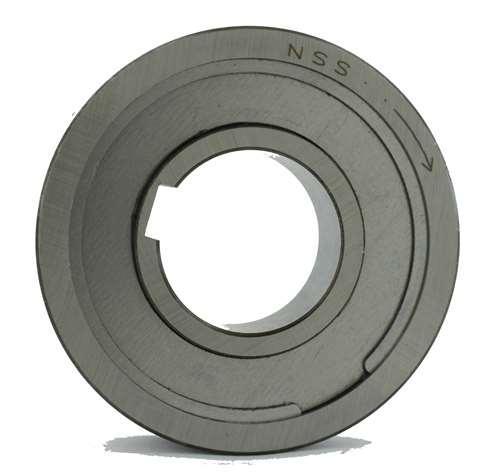

AS45 One Way Clutch
One Clutch


 AS45 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. AS45 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • AS45 Clutch
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • Dimensions: 45mm x 85mm x 19mm (Metric)
  • Inner Diameter: 45mm
  • Outer Diameter: 85mm
  • Width: 19mm
  • Torque: 174 TKN
  • Resistance Torque: 11 Tr
  • Inner Race Overrun: 1,000 RPM
  • Outer Race Overrun: 1,600 RPM
  • Quantity: One Clutch

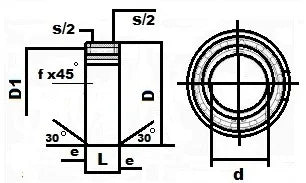

Dimension (mm)
d D D1 L s e f
45 85 77 19 2.5 1.2 1
