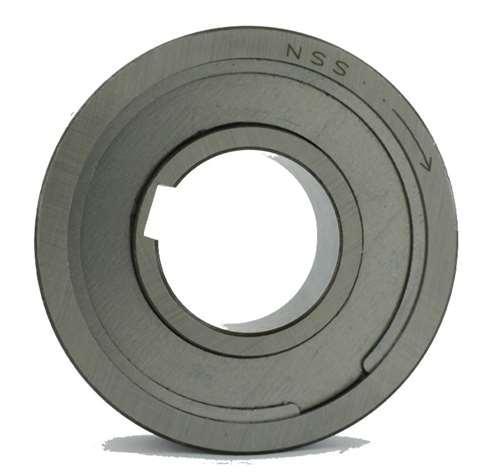

AS20 One-Way Backstop Freewheel Clutch - 20x47x14mm

AS20 One-Way Clutch Bearing
✔️ 20x47x14mm - Backstop Freewheel - Same as NSS20

The AS20 one-way clutch provides directional control for applications like conveyors, motors, and machinery. Same size as a 6204 ball bearing, it requires separate bearing support. Ideal for setups where rotation must only occur in one direction.

✅ Size: 20mm ID x 47mm OD x 14mm Width
✅ Type: One-Way Clutch (Sprag / Freewheel)
✅ Applications: Overrunning, Indexing, Backstopping
✅ Torque: 32 TKN Nominal / 80 TKN Max
✅ Inner Race Overrun Speed: 2,200 RPM
✅ Outer Race Overrun Speed: 3,300 RPM
✅ Requires: Bearing support (fits with 6204 ball bearing)
✅ Quantity: 1 Clutch

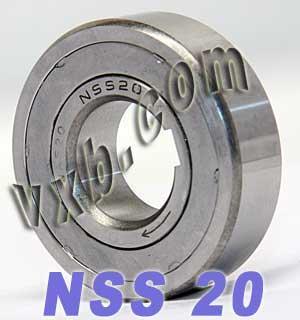

✅ Equivalent: NSS20

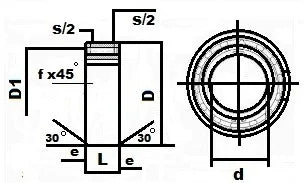

Dimensions Table (mm):

💡 What makes one-way clutches essential in industrial design?

1. They ensure components rotate in only one direction to prevent backflow or system reversal.

2. Common in conveyor systems, they stop gravity-driven rollback during power outages.

3. Used in hydraulic and printing systems for indexing, where precise step-by-step motion is needed.

Designed for reliability in demanding systems requiring controlled, one-way motion.
