Nachi

7214CYP4 Nachi Angular Contact Bearing 70x125x24 ABEC-7 Japan Made

7214CYP4 Nachi Angular Contact Bearing 70x125x24 ABEC-7 Japan Made

$505.79 USD
$561.99 USD $505.79 USD
Sale Sold out
Shipping calculated at checkout.
High Precision Ball Bearing
7214CYP4 Nachi Angular Ball Bearing
15 degrees Contact Angle
Abec-7
70mm x 125mm x 24mm
Made in Japan

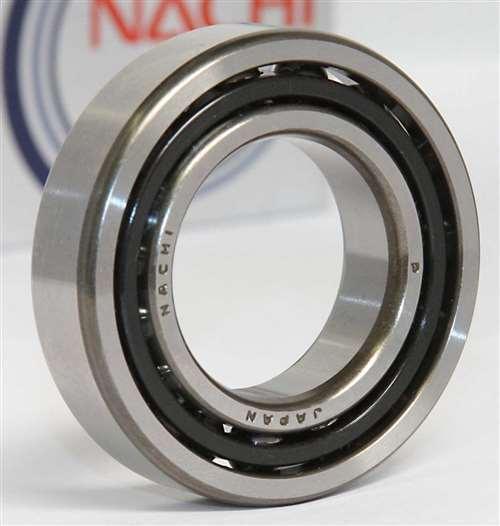

7214CYP4 Nachi high precision Angular Ball Bearing with 15 degrees contact angle and Polyamide resin cage, bearing is ABEC-7 (P4) quality and made in Japan.

  • 7214CYP4 Nachi Ball Bearing
  • Nachi Angular Ball Bearing
  • Cage: Polyamide resin cage
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 70mm x 125mm x 24mm/Metric
  • ID (inner diameter)/Bore: 70mm
  • OD (outer diameter): 125mm
  • Width: 24mm
  • Size: 70 x 125 x 24 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 80,000 N
  • Static load rating Cor: 65,000 N
  • Limiting Speed:
    • Grease Lubrication: 8,200 RPM
    • Oil Lubrication: 11,000 RPM
  • Made in Japan

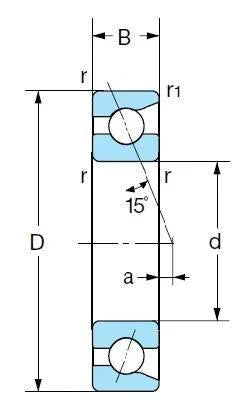

Dimensions
d D B r r1 a
70mm 125mm 24mm 1.5mm 1mm -0.7mm


💡 What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
