• 7212CYP4 Nachi Angular Contact Bearing 60x110x22 ABEC-7 Japan Made
  • 7212CYP4 Nachi Angular Contact Bearing 60x110x22 ABEC-7 Japan Made
  • 7212CYP4 Nachi Angular Contact Bearing 60x110x22 ABEC-7 Japan Made
1 3

Nachi

7212CYP4 Nachi Angular Contact Bearing 60x110x22 ABEC-7 Japan Made

7212CYP4 Nachi Angular Contact Bearing 60x110x22 ABEC-7 Japan Made

$452.69 USD
$502.99 USD $452.69 USD
Sale Sold out
Shipping calculated at checkout.
High Precision Ball Bearing
7212CYP4 Nachi Angular Ball Bearing
15 degrees Contact Angle
Abec-7
60mm x 110mm x 22mm
Made in Japan

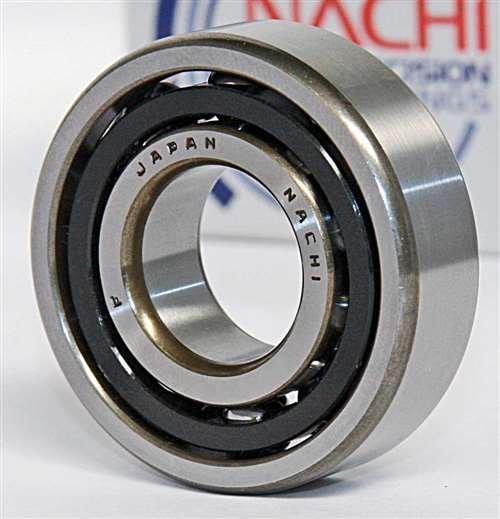

7212CYP4 Nachi high precision Angular Ball Bearing with 15 degrees contact angle and Polyamide resin cage, bearing is ABEC-7 (P4) quality and made in Japan. 7212CYP4 inner diameter is 60mm, 7212CYP4 outer diameter is 110mm, 7212CYP4 width is 22mm.

  • 7212CYP4 Nachi Ball Bearing
  • Nachi Angular Ball Bearing
  • Cage: Polyamide resin cage
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 60mm x 110mm x 22mm/Metric
  • ID (inner diameter)/Bore: 60mm
  • OD (outer diameter): 110mm
  • Width: 22mm
  • Size: 60 x 110 x 22 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 64,500 N
  • Static load rating Cor: 49,500 N
  • Limiting Speed:
    • Grease Lubrication: 9,400 RPM
    • Oil Lubrication: 13,000 RPM
  • Made in Japan

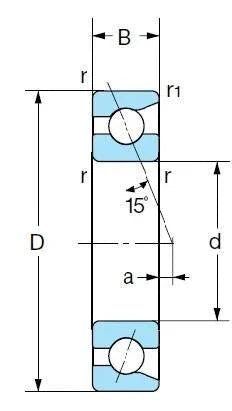

Dimensions
d D B r r1 a
60mm 110mm 22mm 1.5mm 1mm -1.2mm


💡 What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
