7210C P5 High Precision Angular Contact Bearing 50x90x20 ABEC-5

7210C P5 High Precision Angular Contact Bearing 50x90x20 ABEC-5

$44.99 USD
$49.99 USD $44.99 USD
Sale Sold out
Shipping calculated at checkout.
High Precision Ball Bearing
7210C P5 Angular Ball Bearing
15 degrees Contact Angle
ABEC-5
50mm x 90mm x 20mm

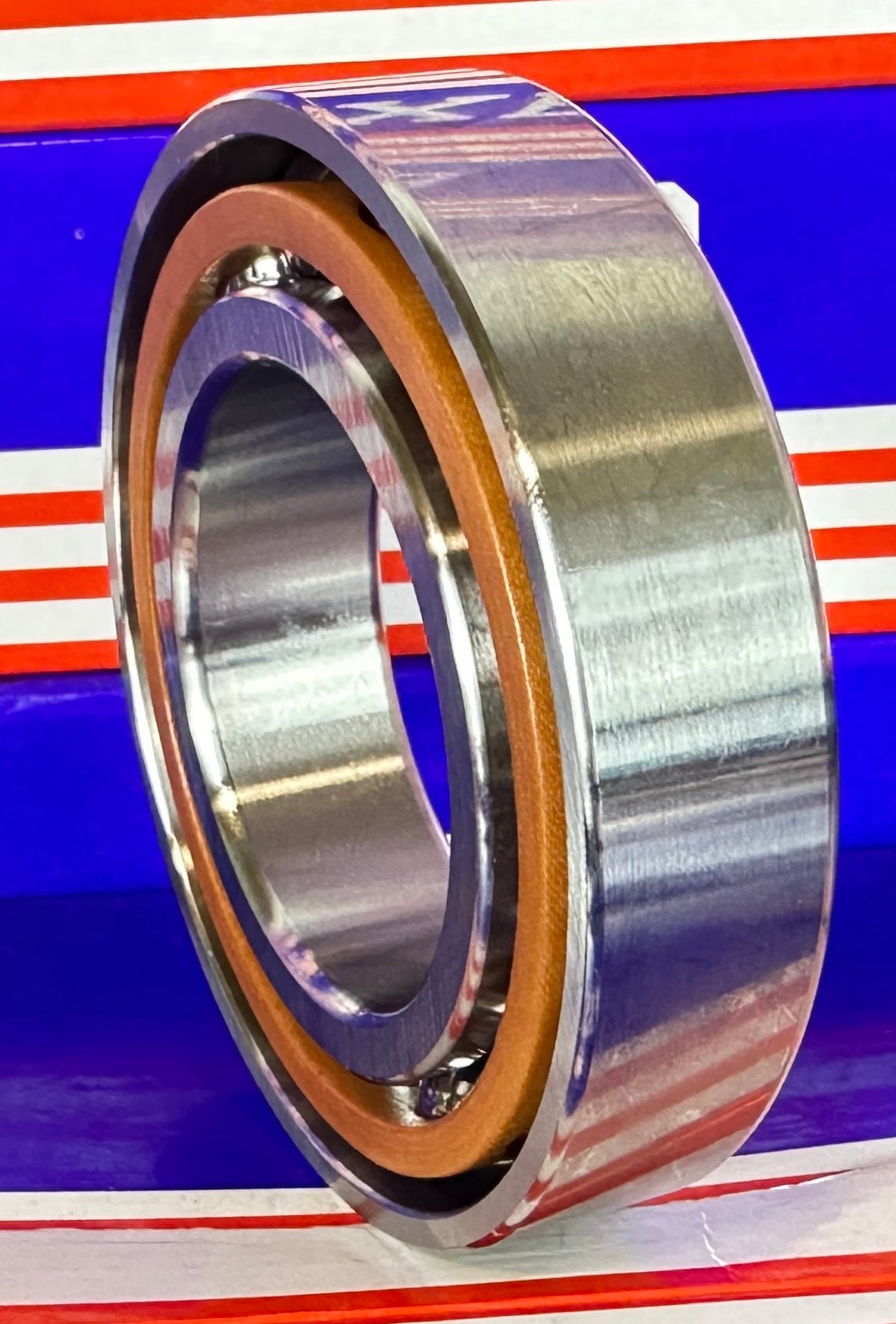

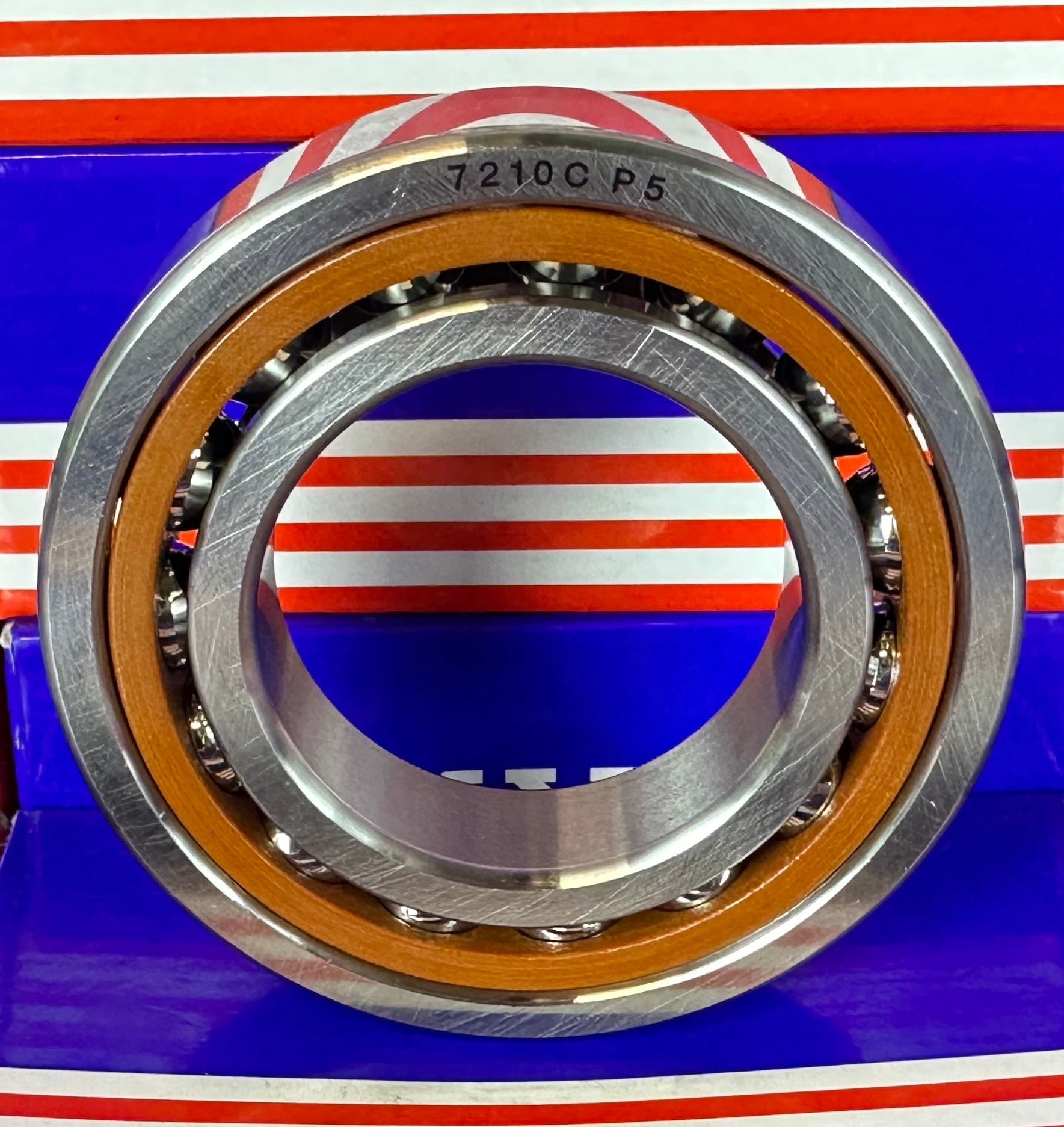

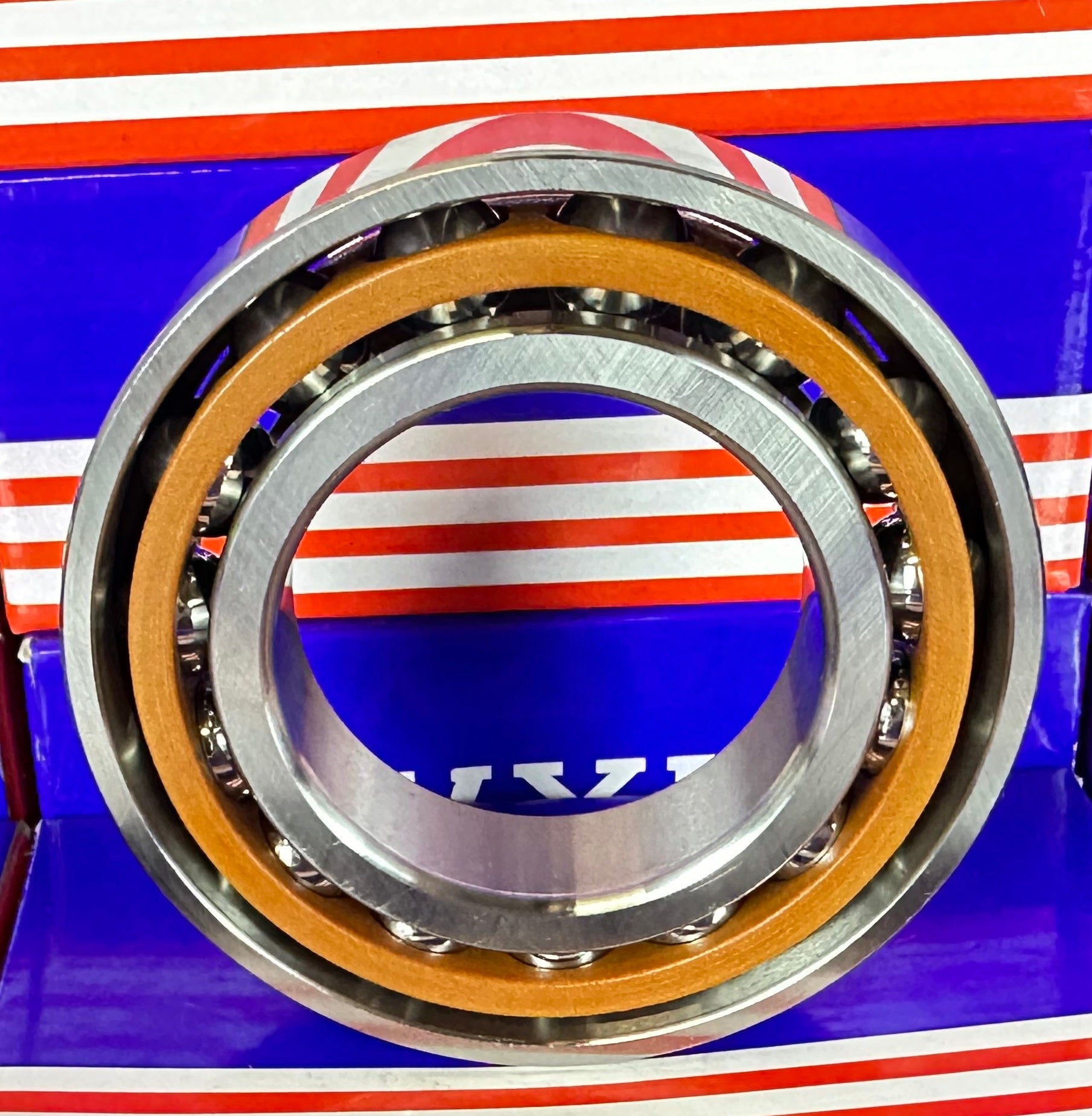

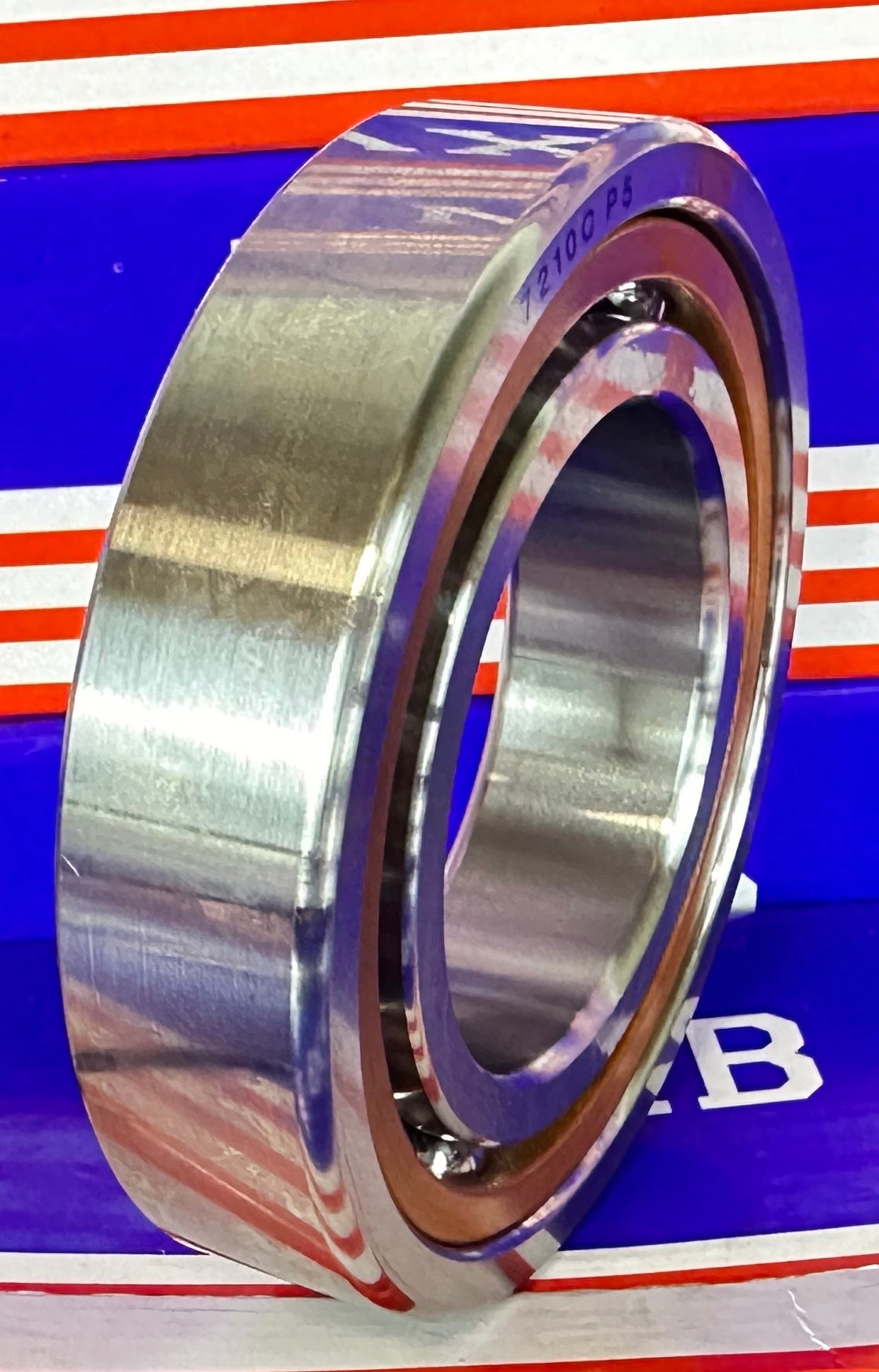

7210C P5 high precision Angular Ball Bearing with 15 degrees contact angle, bearing is ABEC-5 (P5) quality.

  • 7210C P5 Ball Bearing
  • High precision Angular Ball Bearing
  • Cage: PA66 + 30% NTE264B
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 50mm x 90mm x 20mm/Metric
  • ID (inner diameter)/Bore: 50mm
  • OD (outer diameter): 90mm
  • Width: 20mm
  • Size: 50 x 90 x 20 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 43,000 N
  • Static load rating Cor: 32,000 N
  • Limiting Speed:
    • Grease Lubrication: 11,000 RPM
    • Oil Lubrication: 16,000 RPM

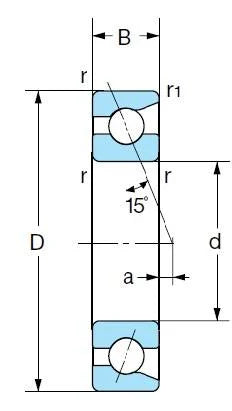

Dimensions
d D B r r1 a
50mm 90mm 20mm 1.1mm 0.6mm -1.9mm


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
