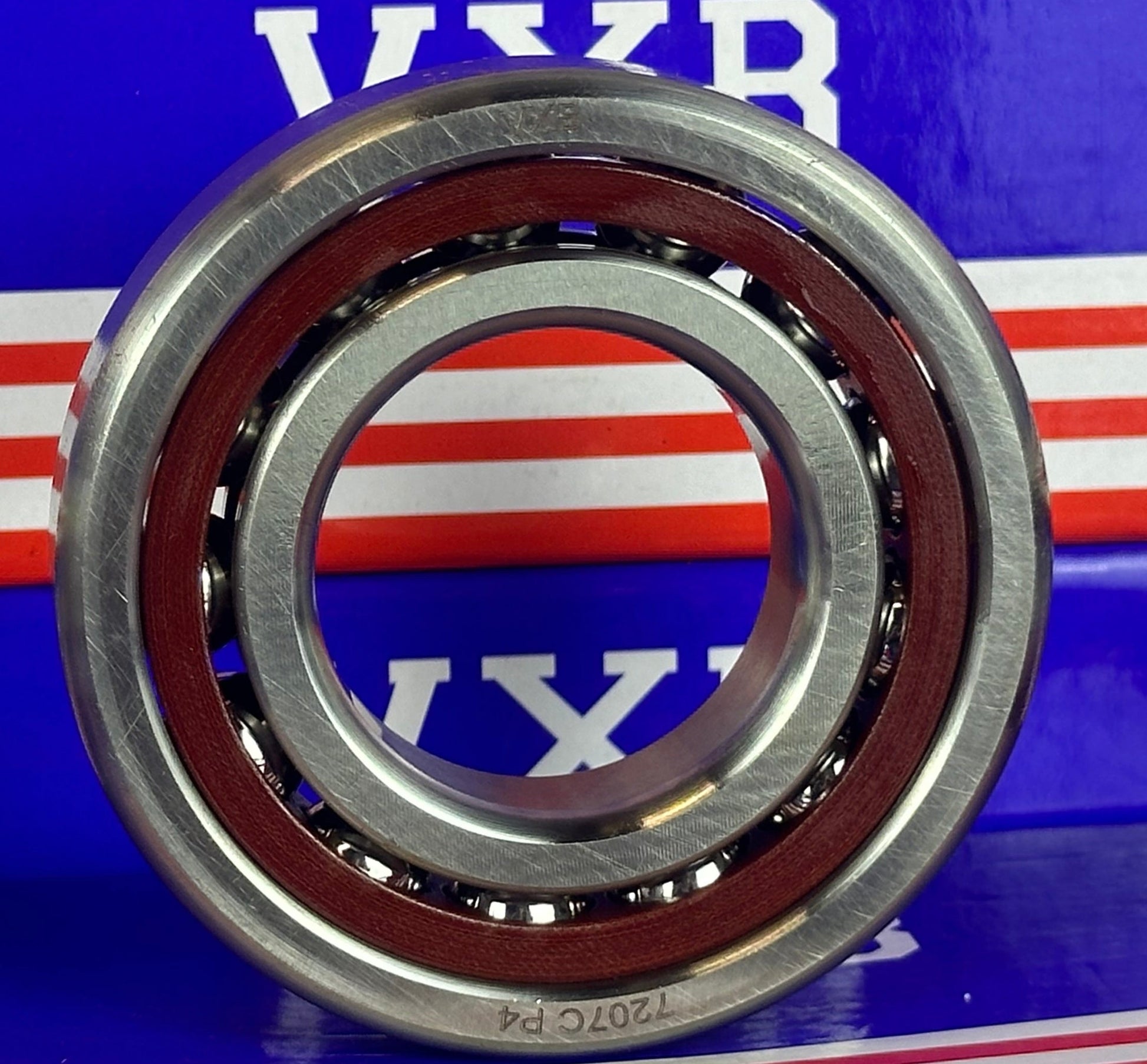

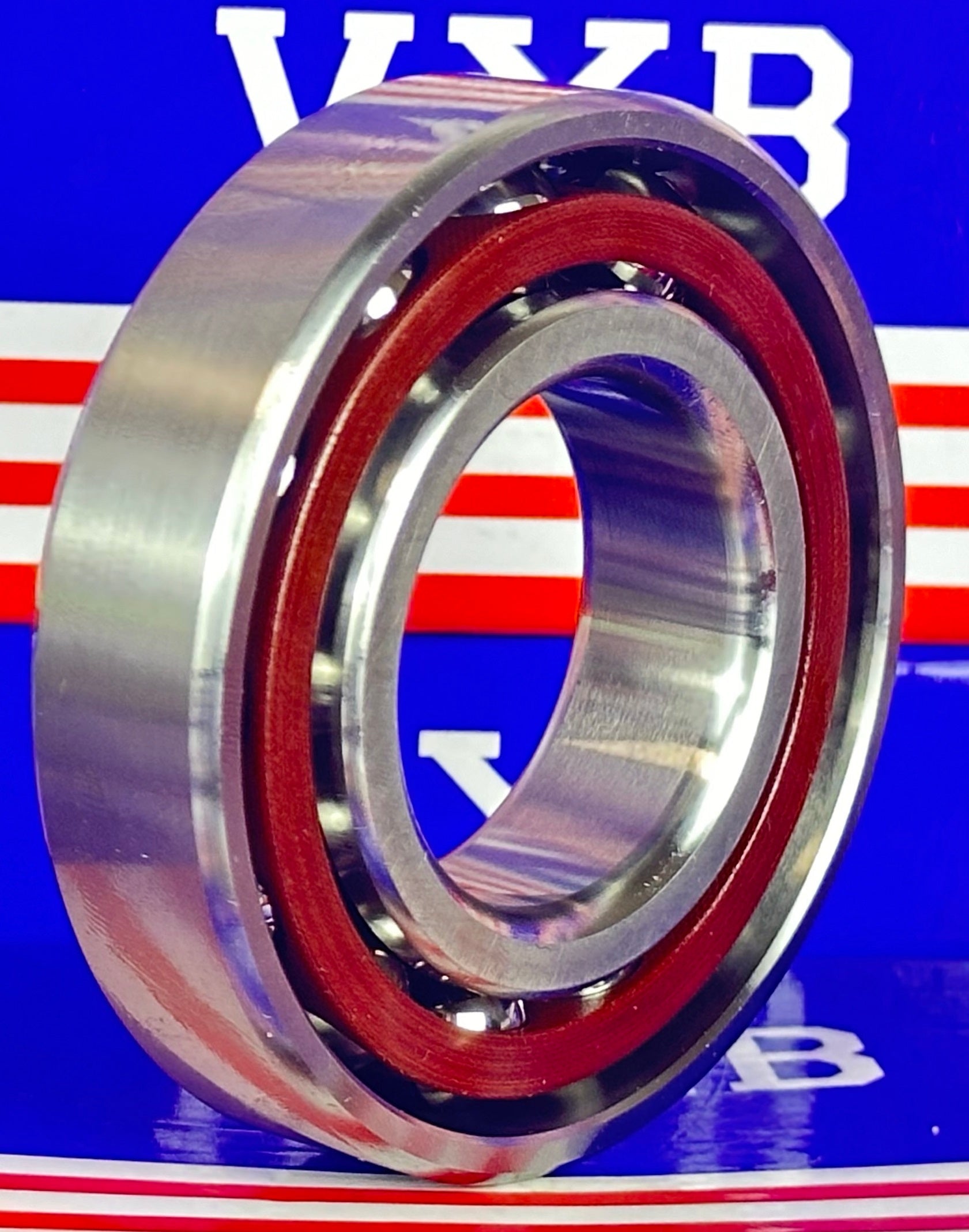

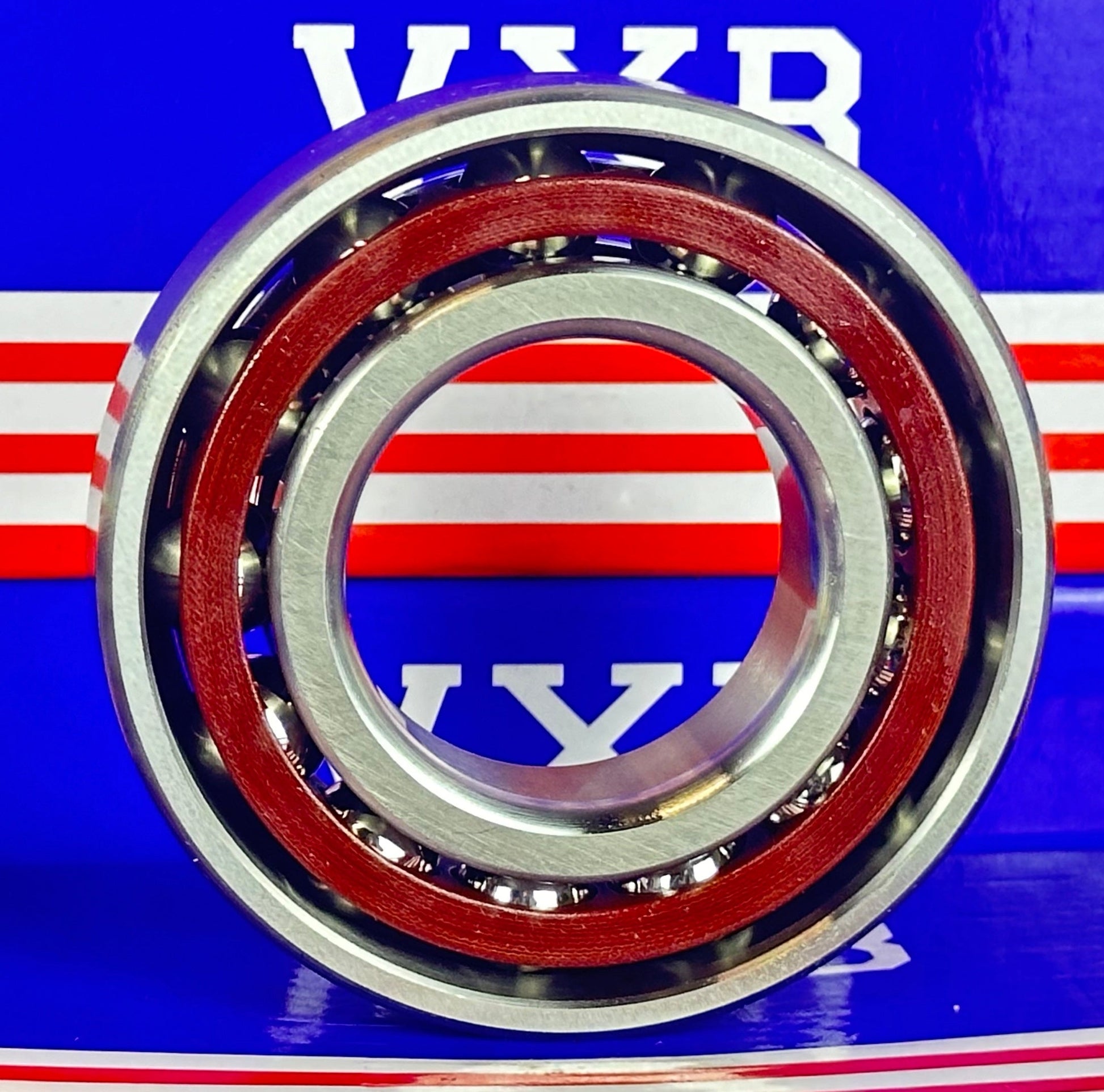

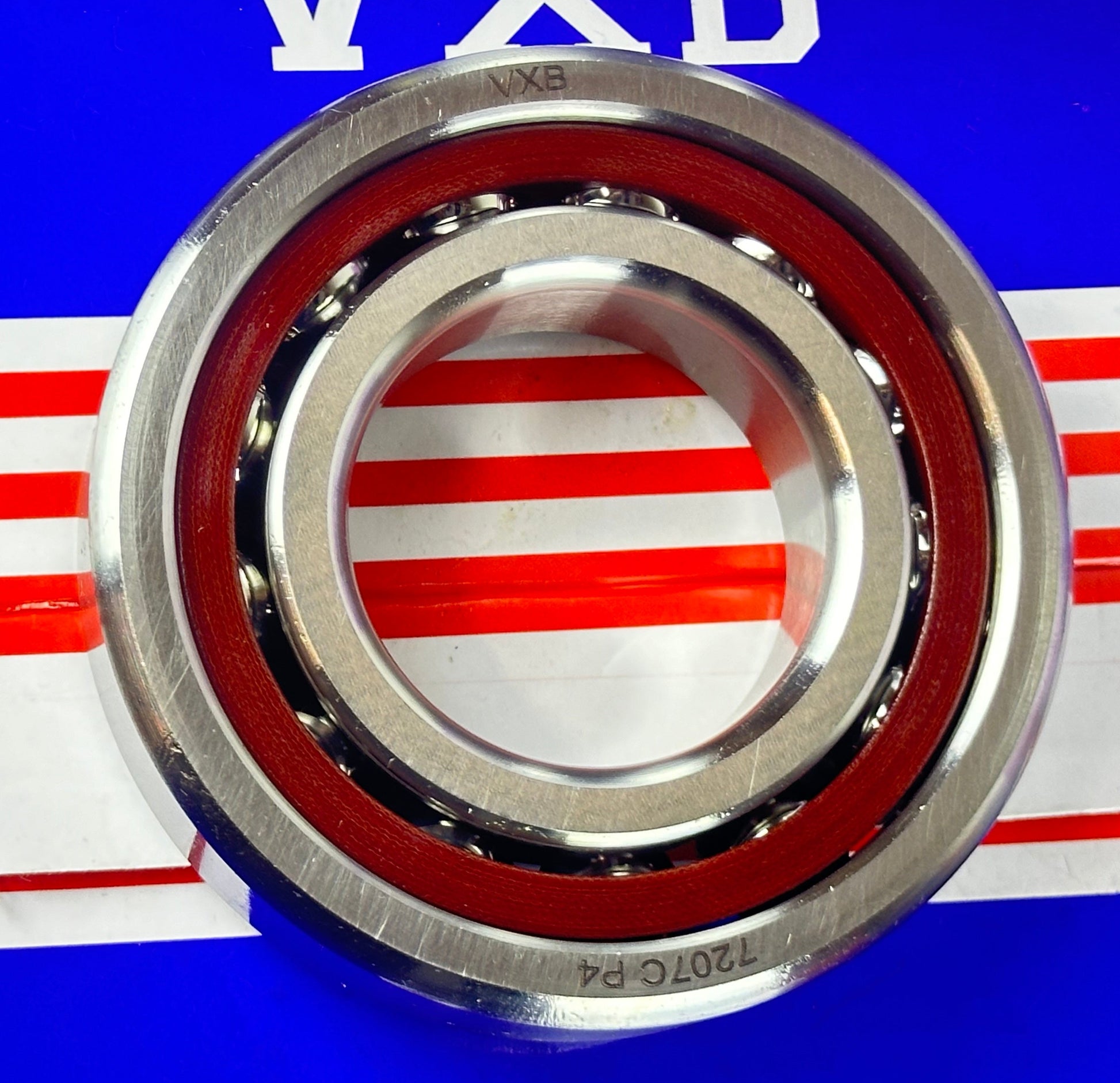

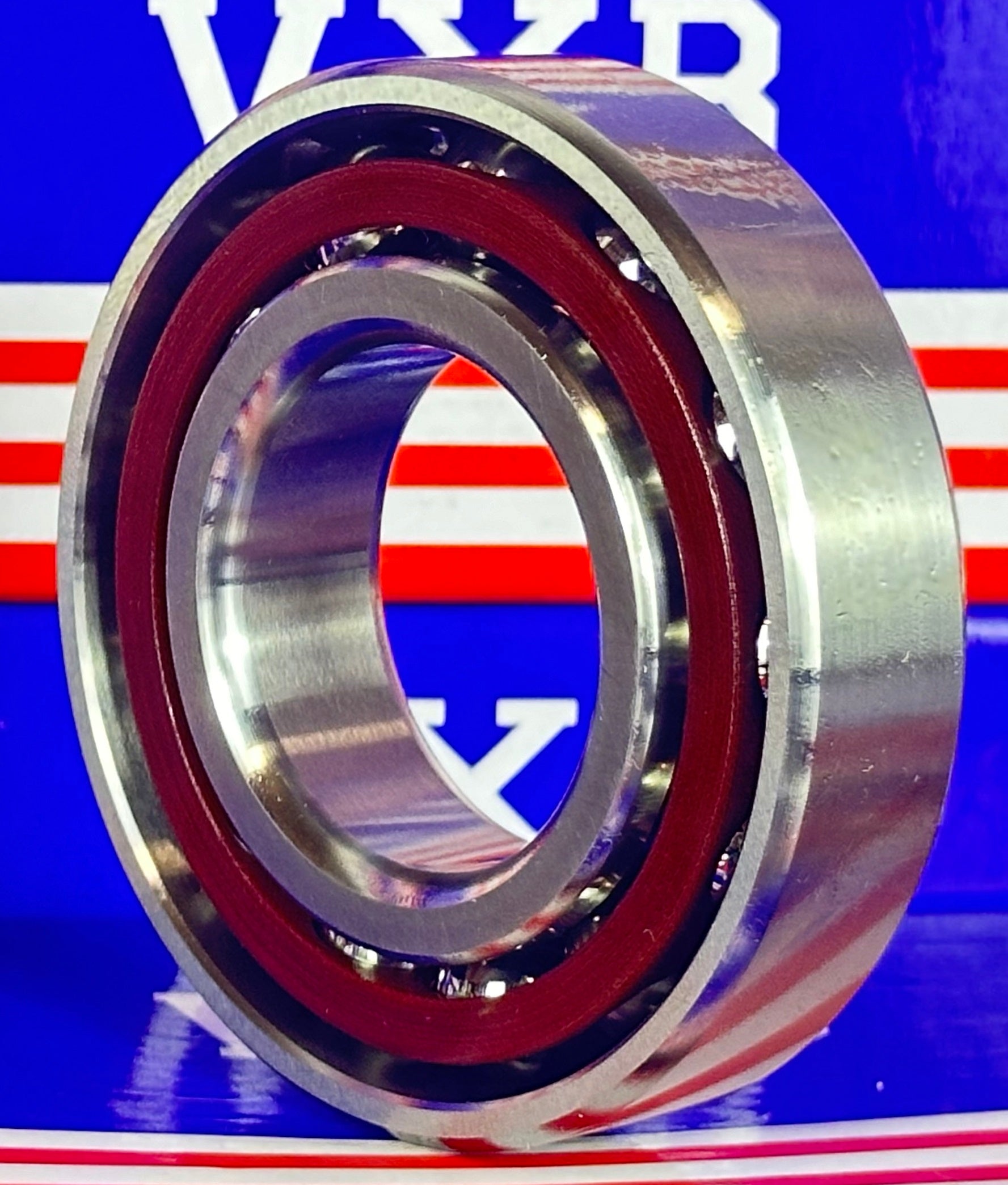

7207C P4 High Precision Angular ABEC-7 Ball Bearing 35mm x 72mm x 17mm 15 degrees Contact Angle PA66+ 30% NTE264B Cage
7207C P4 High Precision Angular Ball Bearing with a 15 degree contact angle, ABEC-7 rating. The 7207C has an inner diameter of 35mm, outer diameter 72mm, and width 17mm.
7207C P4 Angular Contact Ball Bearing
High Precision Angular Ball Bearing
Dimensions: 35mm x 72mm x 17mm/Metric
Bearing Inner Diameter: 35mm
Bearing Outer Diameter: 72mm
Bearing Width: 17mm
Size: 35 x 72 x 17 mm
Cage: PA66+ 30% NTE264B cage
Quality: ABEC-7 (P4)
Basic Dynamic Load Cr: 25,800 N
Basic Static LoadCor: 22,900 N
Quantity: 1 Bearing

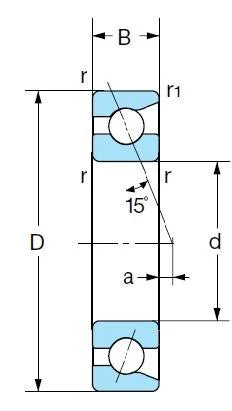

d
D
B
35mm
72m
17mm
💡 What Does ABEC-7 Mean?
ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.
ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
