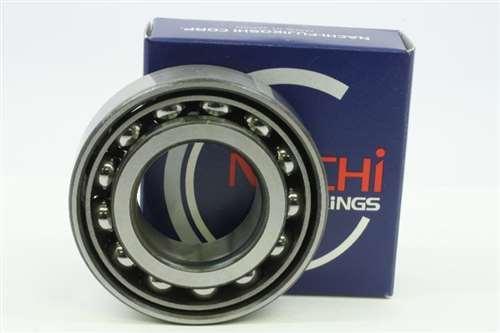

7205BMU Nachi Angular Contact Bearing 25x52x15mm - Brass Cage

7205BMU Nachi Angular Contact Ball Bearing
✔️ 25 x 52 x 15mm – 40° Contact Angle – Brass Cage – Made in Japan

The 7205BMU is a premium single-row angular contact bearing from Nachi, featuring a 40° contact angle and flush ground design for axial load handling in one direction. With a robust brass cage and C3 clearance, this bearing is built for high-speed, high-rigidity applications like machine tools and precision motors.

✅ Type: Angular contact ball bearing (single row)
✅ Contact angle: 40°
✅ Radial clearance: C3
✅ Cage: High-strength brass
✅ Size: 25mm (ID) x 52mm (OD) x 15mm (Width)
✅ Dynamic load rating (Cr): 15,300 N
✅ Static load rating (Cor): 9,700 N
✅ Quantity: 1 bearing
✅ Origin: Made in Japan
✅ Limiting speeds:

• Grease lubrication: 9,500 RPM

• Oil lubrication: 14,000 RPM



💡 Why use angular contact bearings in pairs?
Single-row angular contact bearings handle axial loads in one direction, so they’re often mounted in matched pairs - back-to-back (DB), face-to-face (DF), or tandem (DT) - to support axial loads from both directions and improve stability under radial forces.

Built for speed, load precision, and long-lasting performance in demanding rotational systems.
