7203C P4 High precision Angular Contact Bearing ABEC-7 17x40x12mm

7203C P4 High precision Angular Contact Bearing ABEC-7 17x40x12mm

$69.99 USD
$77.77 USD $69.99 USD
Sale Sold out
Shipping calculated at checkout.
High Precision Ball Bearing
7203C P4 Angular Ball Bearing
15 degrees Contact Angle
ABEC-7
17mm x 40mm x 12mm


. .

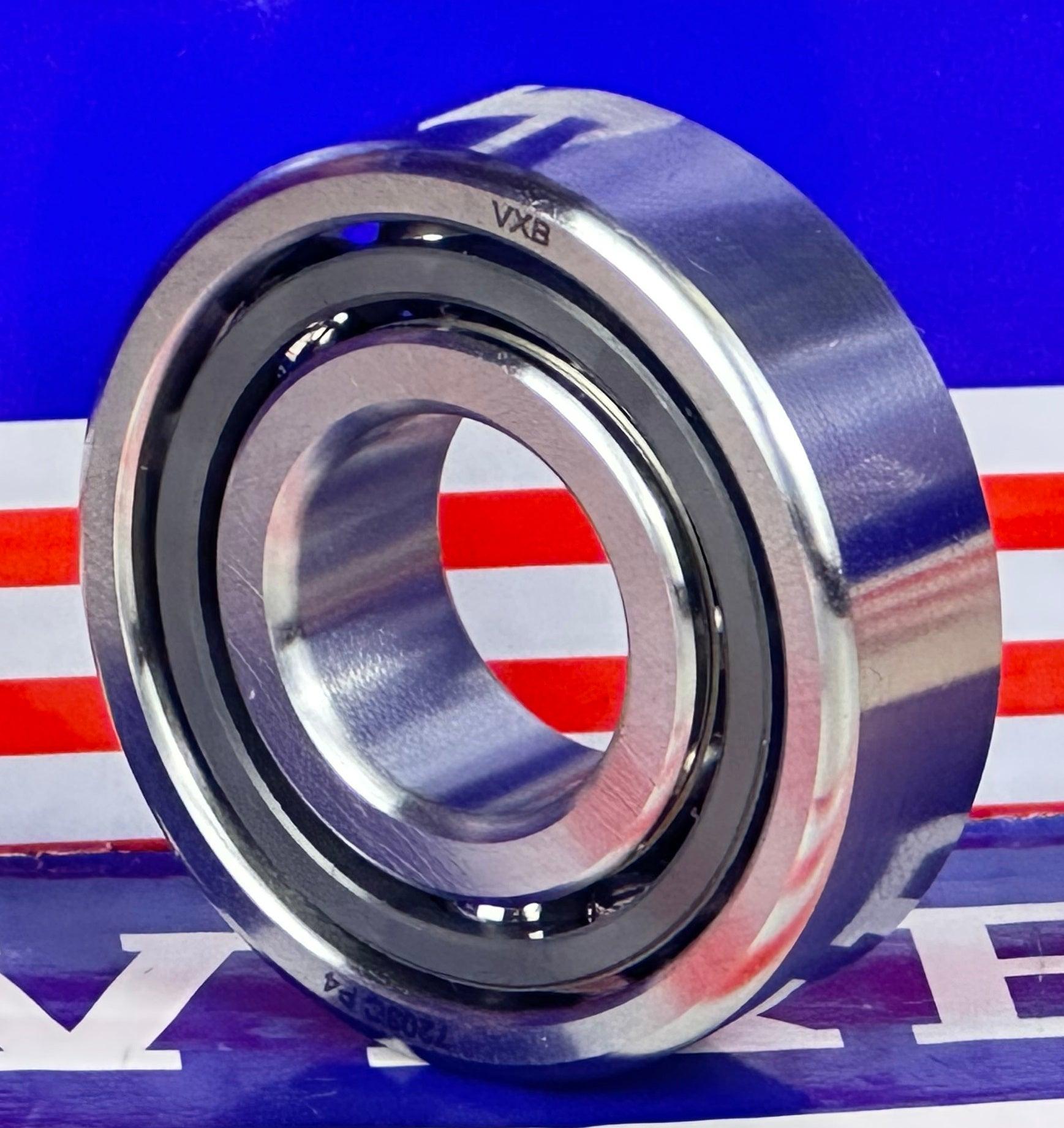

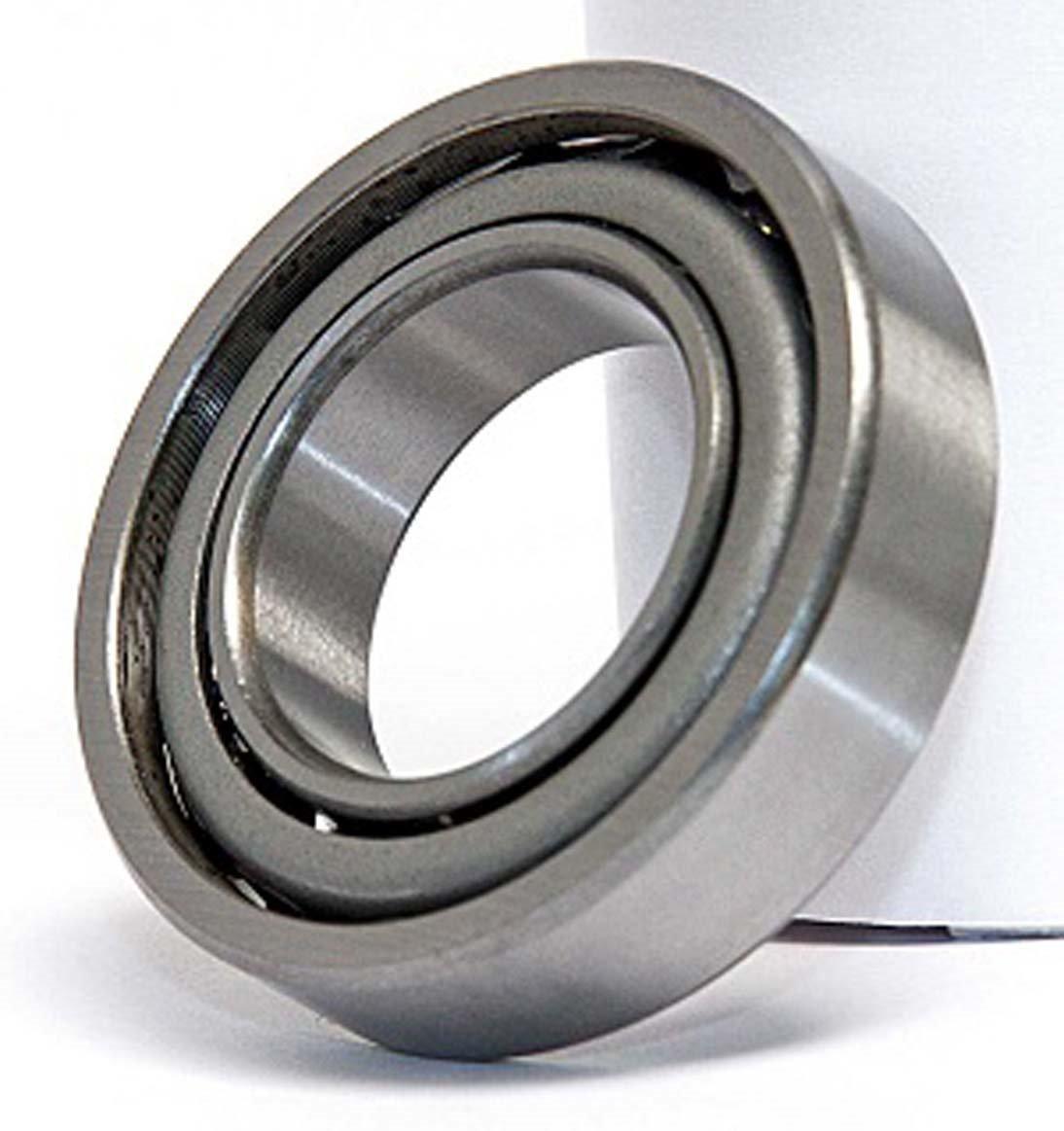

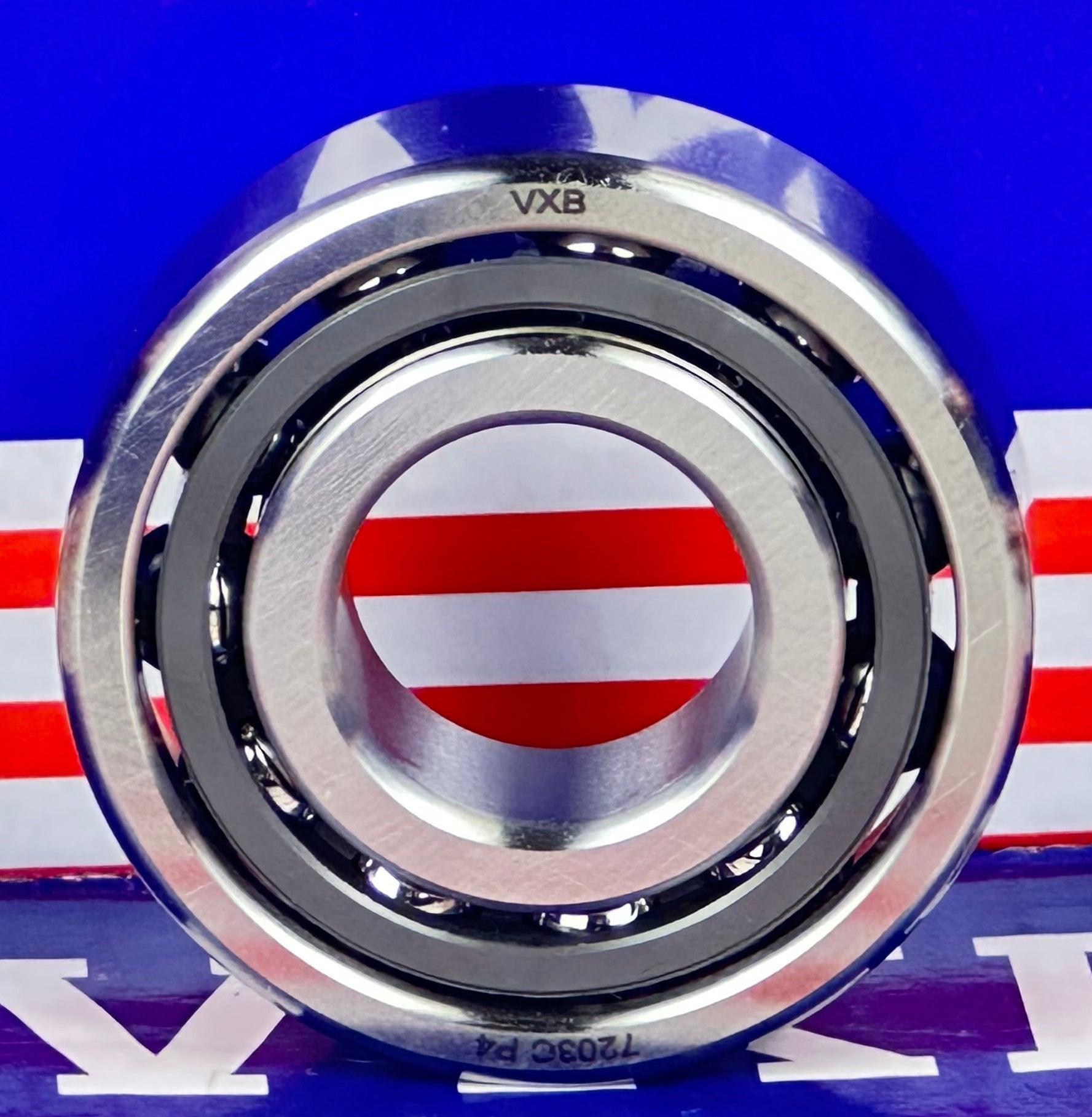

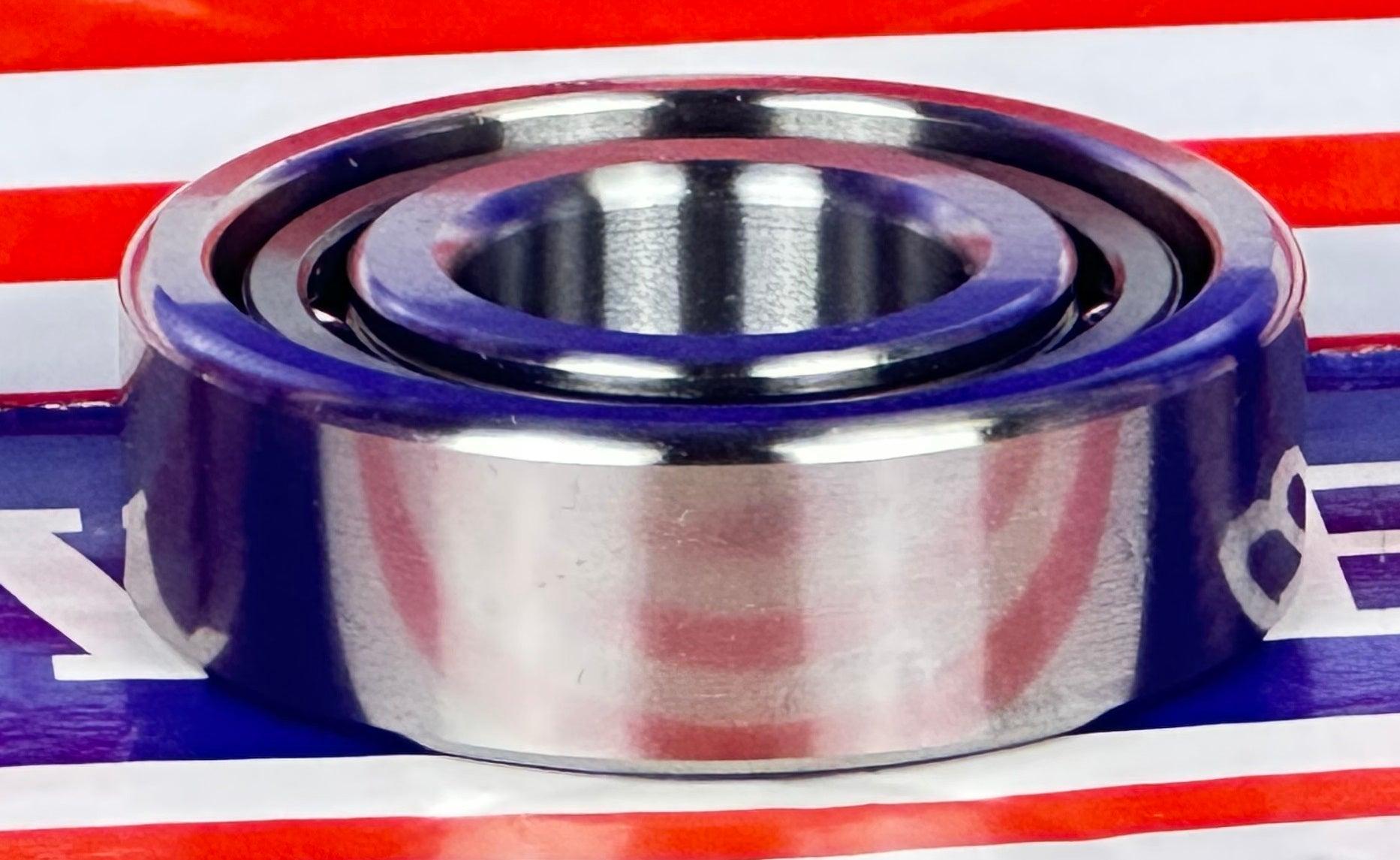

7203C P4 high precision Angular Ball Bearing with 15 degrees contact angle. Inner diameter is 17mm, outer diameter is 40mm, and width is 12mm.

  • 7203C P4 Ball Bearing
  • High Precision Angular Ball Bearing
  • Cage: PA66+ 30% NTE264B
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 17mm x 40mm x 12mm/Metric
  • ID (inner diameter)/Bore: 17mm
  • OD (outer diameter): 40mm
  • Width: 12mm
  • Size: 17 x 40 x 12 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 11,300 N
  • Static load rating Cor: 7,400 N
  • Limiting Speed:
    • Grease Lubrication: 40,000 RPM
    • Oil Lubrication: 60,000 RPM

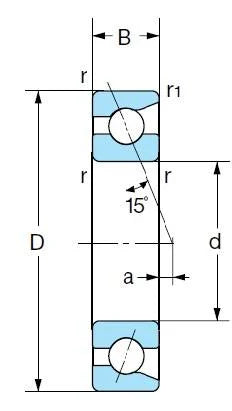

Dimensions
d D B
17mm 40mm 12mm


💡 What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
