• 7200CYP4 Nachi Angular Contact Bearing 10x30x9 ABEC-7 Japan Made
  • 7200CYP4 Nachi Angular Contact Bearing 10x30x9 ABEC-7 Japan Made
  • 7200CYP4 Nachi Angular Contact Bearing 10x30x9 ABEC-7 Japan Made
1 3

Nachi

7200CYP4 Nachi Angular Contact Bearing 10x30x9 ABEC-7 Japan Made

7200CYP4 Nachi Angular Contact Bearing 10x30x9 ABEC-7 Japan Made

$135.89 USD
$150.99 USD $135.89 USD
Sale Sold out
Shipping calculated at checkout.
High Precision Ball Bearing
7200CYP4 Nachi Angular Ball Bearing
15 degrees Contact Angle
Abec-7
10mm x 30mm x 9mm
Made in Japan

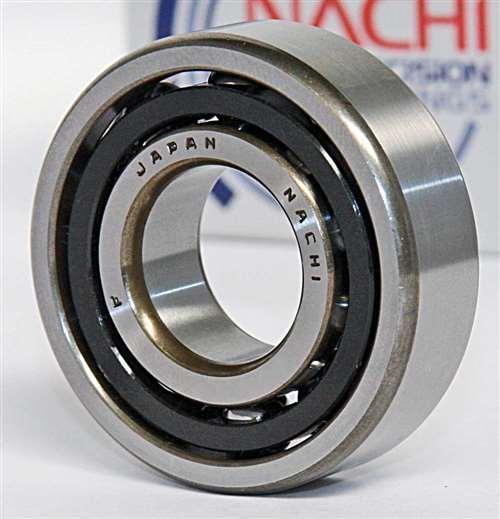

7200CYP4 Nachi high precision Angular Ball Bearing with 15 degrees contact angle and Polyamide resin cage, bearing is ABEC-7 (P4) quality and made in Japan, inner diameter is 10mm, outer diameter is 30mm and width is 9mm.

  • 7200CYP4 Nachi Ball Bearing
  • Nachi Angular Ball Bearing
  • Cage: Polyamide resin cage
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 10mm x 30mm x 9mm/Metric
  • ID (inner diameter)/Bore: 10mm
  • OD (outer diameter): 30mm
  • Width: 9mm
  • Size: 10 x 30 x 9 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 6,950 N
  • Static load rating Cor: 3,300 N
  • Limiting Speed:
    • Grease Lubrication: 40,000 RPM
    • Oil Lubrication: 55,000 RPM
  • Made in Japan

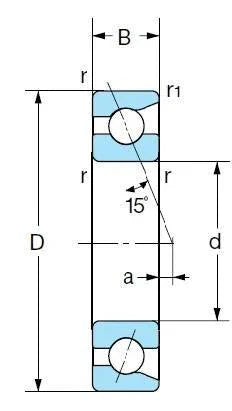

Dimensions
d D B r r1 a
10mm 30mm 9mm 0.6mm 0.3mm -2.2mm


💡 What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
