7200C P5 High Precision Angular Contact Bearing 10x30x9 ABEC-5 Bearing

7200C P5 High Precision Angular Contact Bearing 10x30x9 ABEC-5 Bearing

$26.99 USD
$29.99 USD $26.99 USD
Sale Sold out
Shipping calculated at checkout.
High Precision Ball Bearing
7200C P5 Angular Ball Bearing
15 degrees Contact Angle
ABEC-5
10mm x 30mm x 9mm


7200C P5 high precision Angular Ball Bearing with 15 degrees contact angle, bearing is ABEC 5 (P5) quality, inner diameter is 10mm, outer diameter is 30mm and width is 9mm.

  • 7200C P5 Ball Bearing
  • Angular Ball Bearing
  • Cage: PA66 + 30% NTE264B
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 10mm x 30mm x 9mm/Metric
  • ID (inner diameter)/Bore: 10mm
  • OD (outer diameter): 30mm
  • Width: 9mm
  • Size: 10 x 30 x 9 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 6,950 N
  • Static load rating Cor: 3,300 N
  • Limiting Speed:
    • Grease Lubrication: 40,000 RPM
    • Oil Lubrication: 55,000 RPM

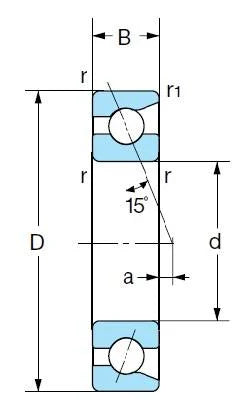

Dimensions
d D B r r1 a
10mm 30mm 9mm 0.6mm 0.3mm -2.2mm

7200C P5 Single Row Angular Contact Bearing

7200C-P5


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
