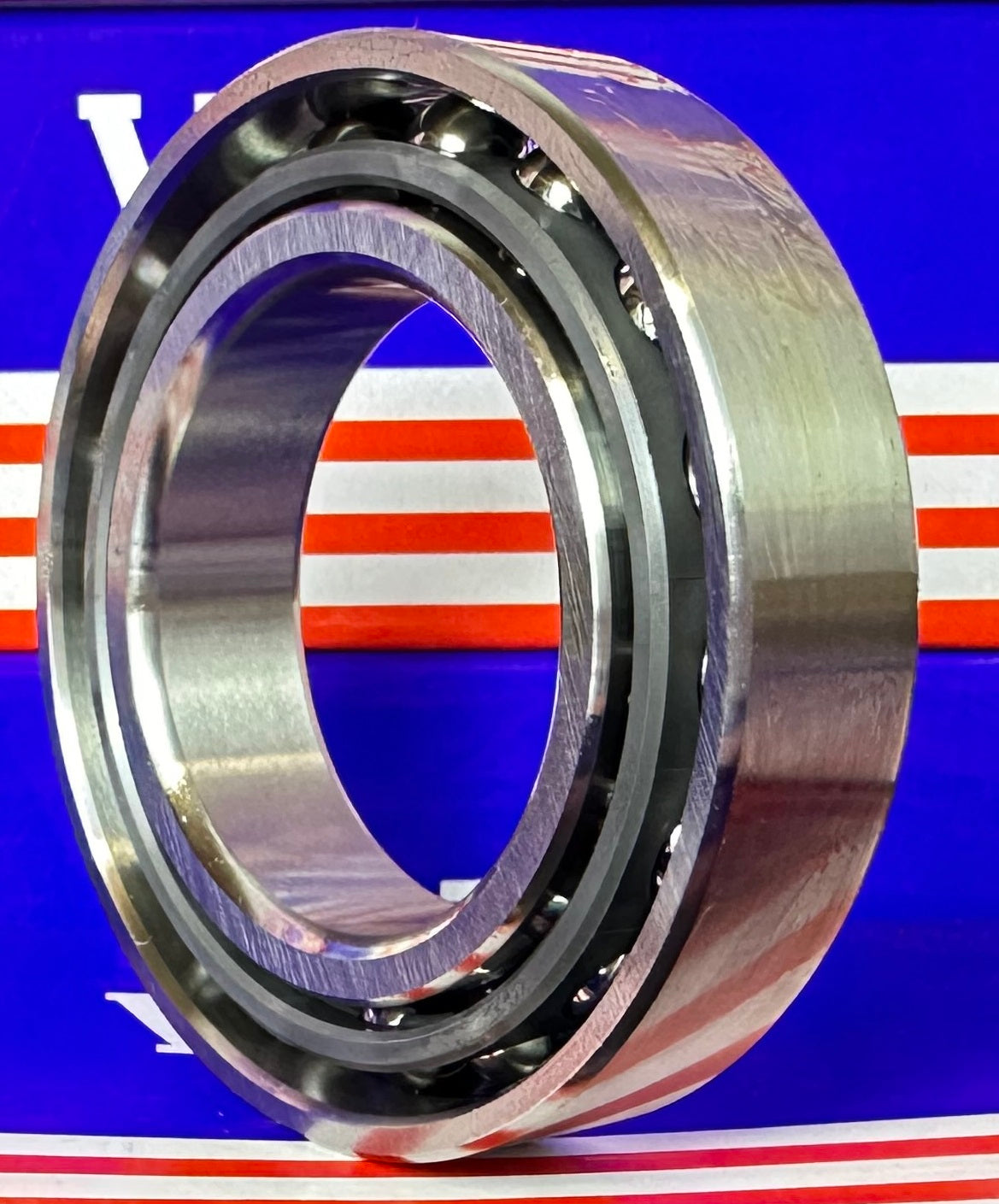

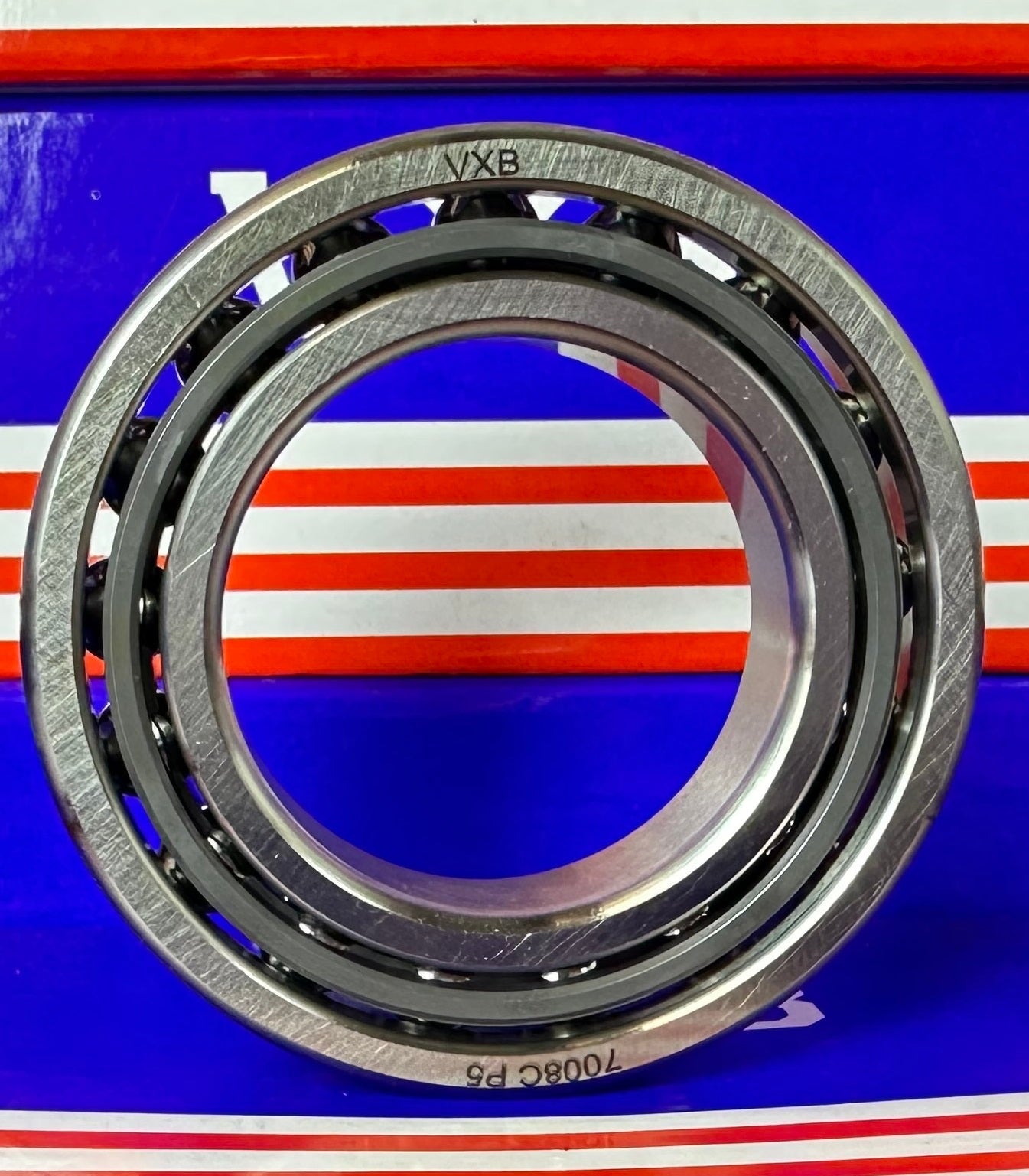

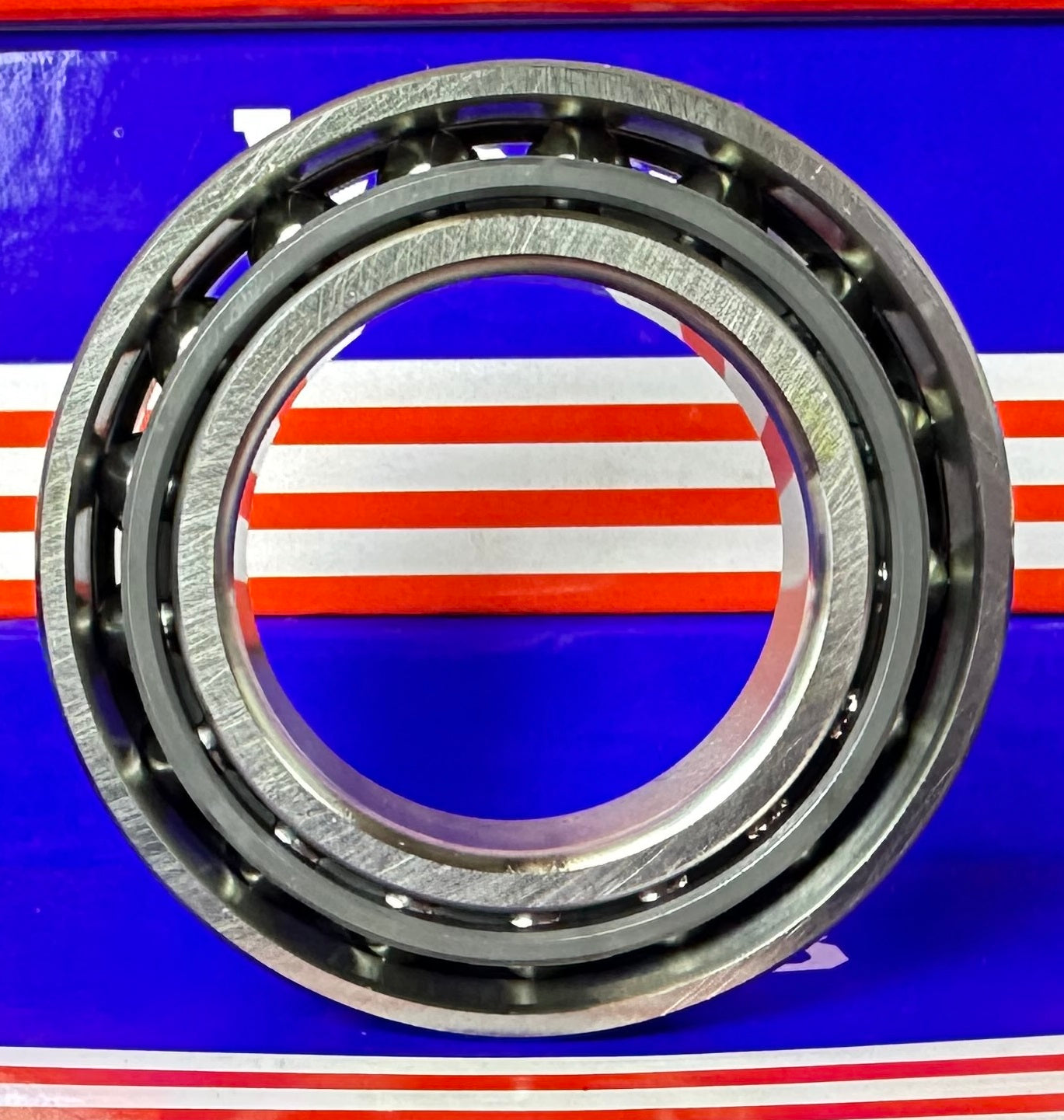

7008C P5 High precision Angular Contact Bearing 40x68x15 ABEC-5 Bearing

7008C P5 High precision Angular Contact Bearing 40x68x15 ABEC-5 Bearing

$79.99 USD
$88.88 USD $79.99 USD
Sale Sold out
Shipping calculated at checkout.
High Precision Ball Bearing
7008C P5 Angular Ball Bearing
40mm x 68mm x 15mm
15 degrees Contact Angle
ABEC-5

7008C P5 high precision Angular Ball Bearing with 15 degrees contact angle, bearing is ABEC 5 (P5) quality.

  • 7008C P5 Ball Bearing
  • Angular Ball Bearing
  • Cage: PA66 + 30% NTE264B
  • Quality: ABEC-5 (P5 quality)
  • Dimensions:
  • ID (inner diameter)/Bore: 40mm
  • OD (outer diameter): 68mm
  • Width: 15mm
  • Size: 40 x 68 x 15 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 20,700 N
  • Static load rating Cor: 16,000 N
  • Limiting Speed:
    • Grease Lubrication: 15,000 RPM
    • Oil Lubrication: 20,000 RPM

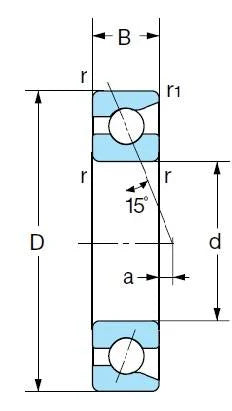

Dimensions
d D B r r1 a
40mm 68mm 15mm 1mm 0.6mm -1.3mm

7008C P5 Single Row Angular Contact Bearing 7008C-P5

7008C-P5


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
