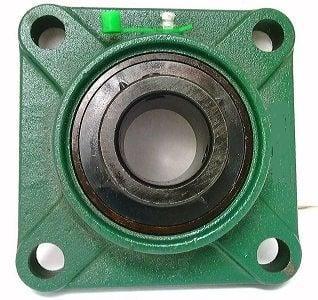

7/8" Bearing UCF205-14 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

7/8" Bearing UCF205-14 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

$53.99 USD
$59.99 USD $53.99 USD
Sale Sold out
Shipping calculated at checkout.
UCF205-14 Black Oxide Plated Insert Four Bolt Flange Unit
Set Screw Type
7/8" inch Inner Diameter


UCF205-14 Black Oxide Plated Insert Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 7/8" inch . Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • UCF205-14 Black Oxide Plated Insert
  • Flange Mounted Bearing
  • Bolt Size: 3/8" inch
  • Shaft Diameter: 7/8" inch
  • Basic Load (Cr): 14 KN
  • Basic Load (Cor): 7.85 KN
  • Bearing No: UC205-14 Black Oxide Plated
  • Housing No: F205
  • Quantity: 1 Bearing

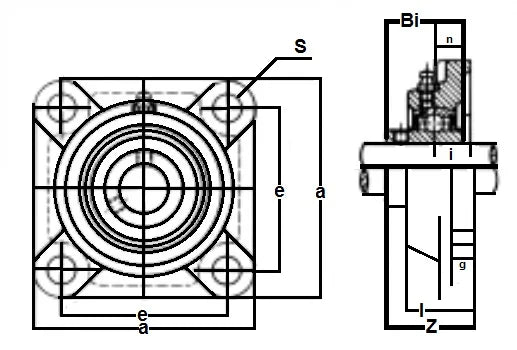

Dimensions (inches)
a e i g l s z Bi n
3-3/4" 2-3/4" 5/8" 9/16" 1-1/16" 15/32" 1-13/32" 1.34" 9/16"
