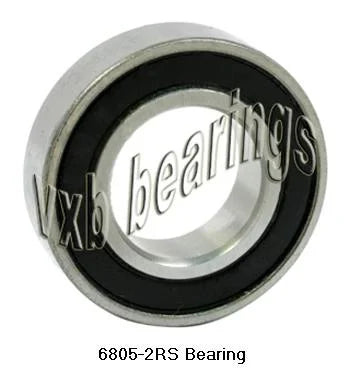

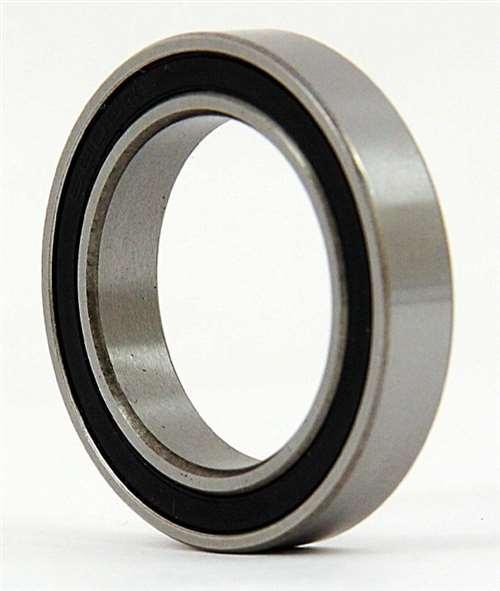

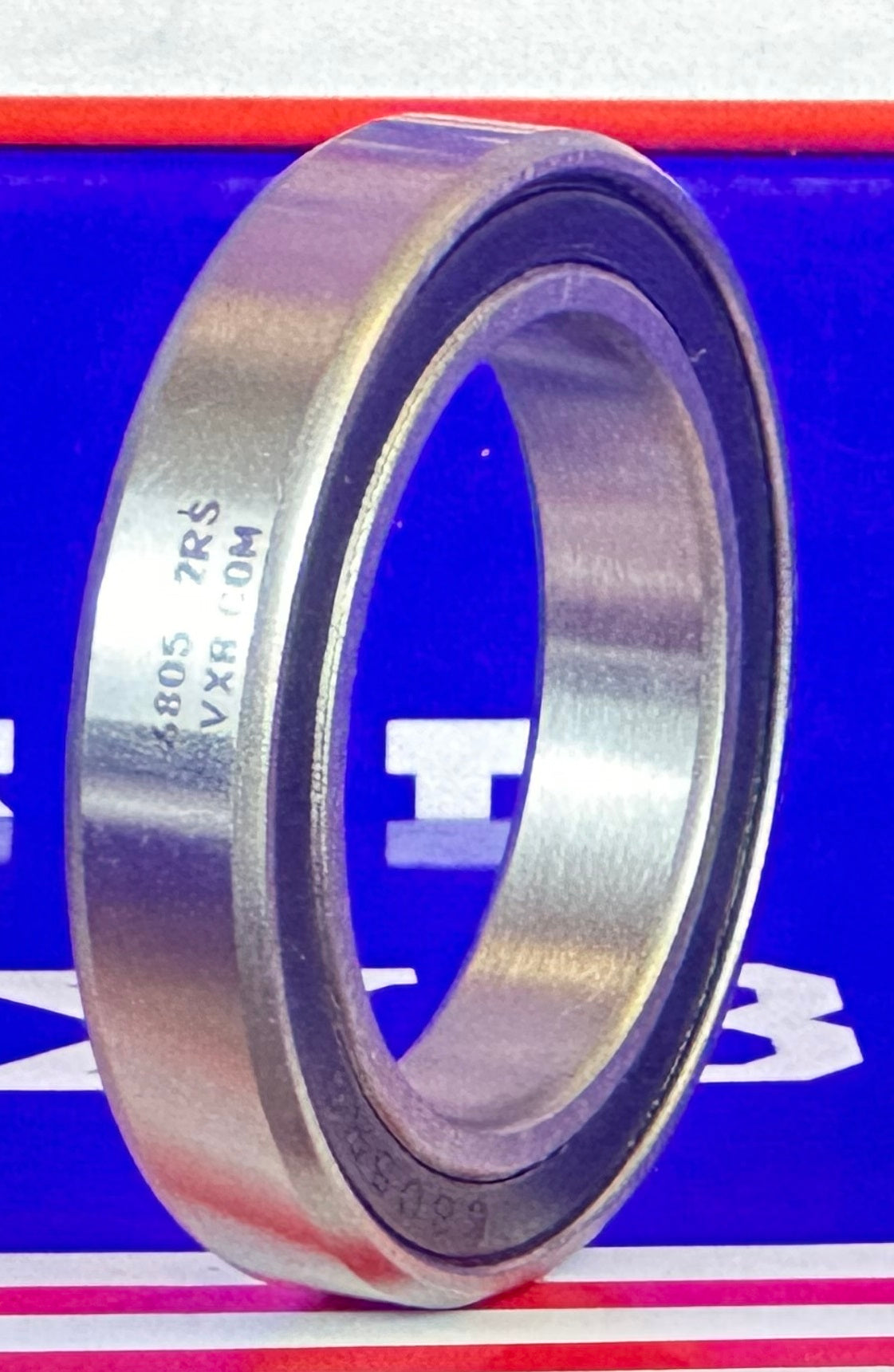

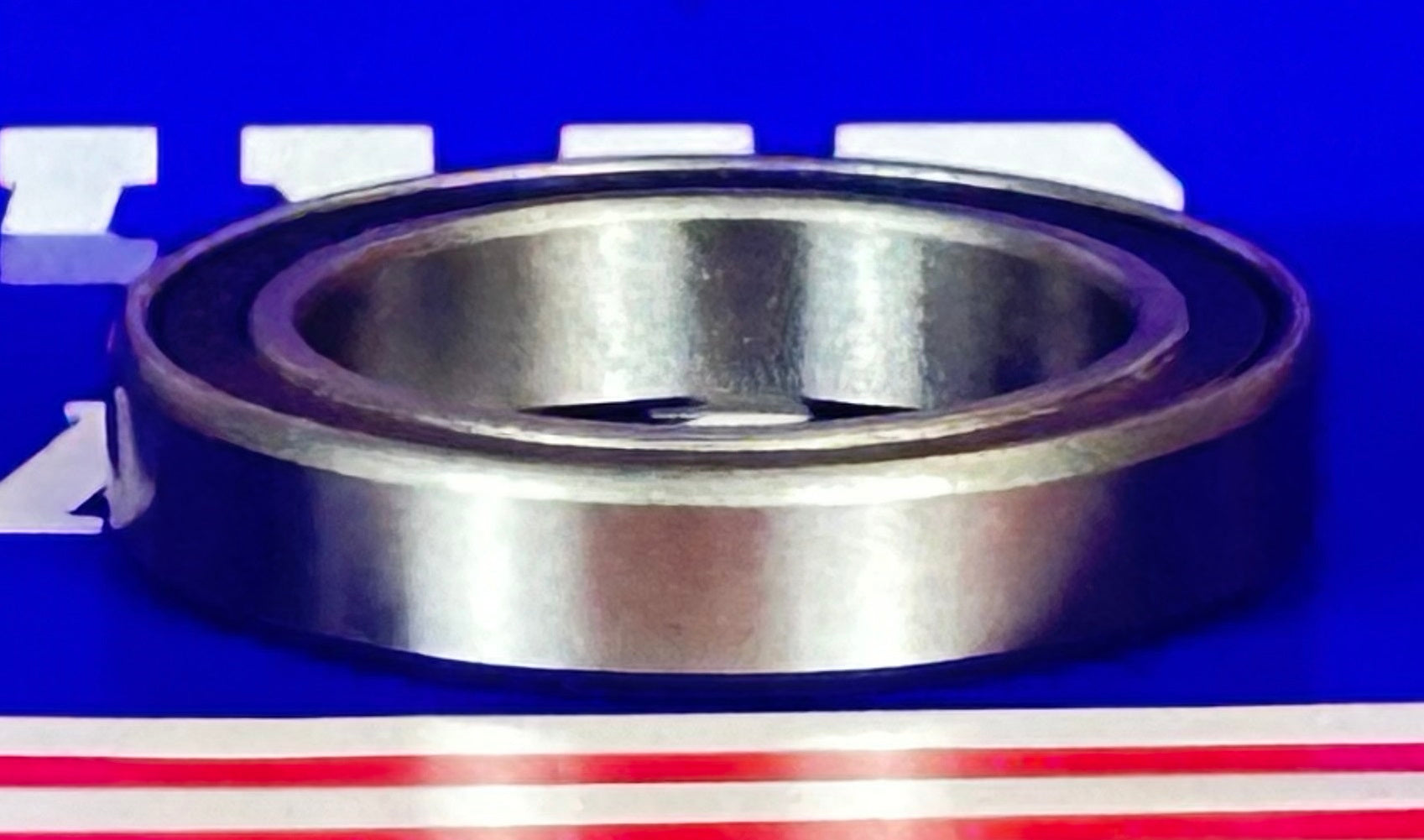

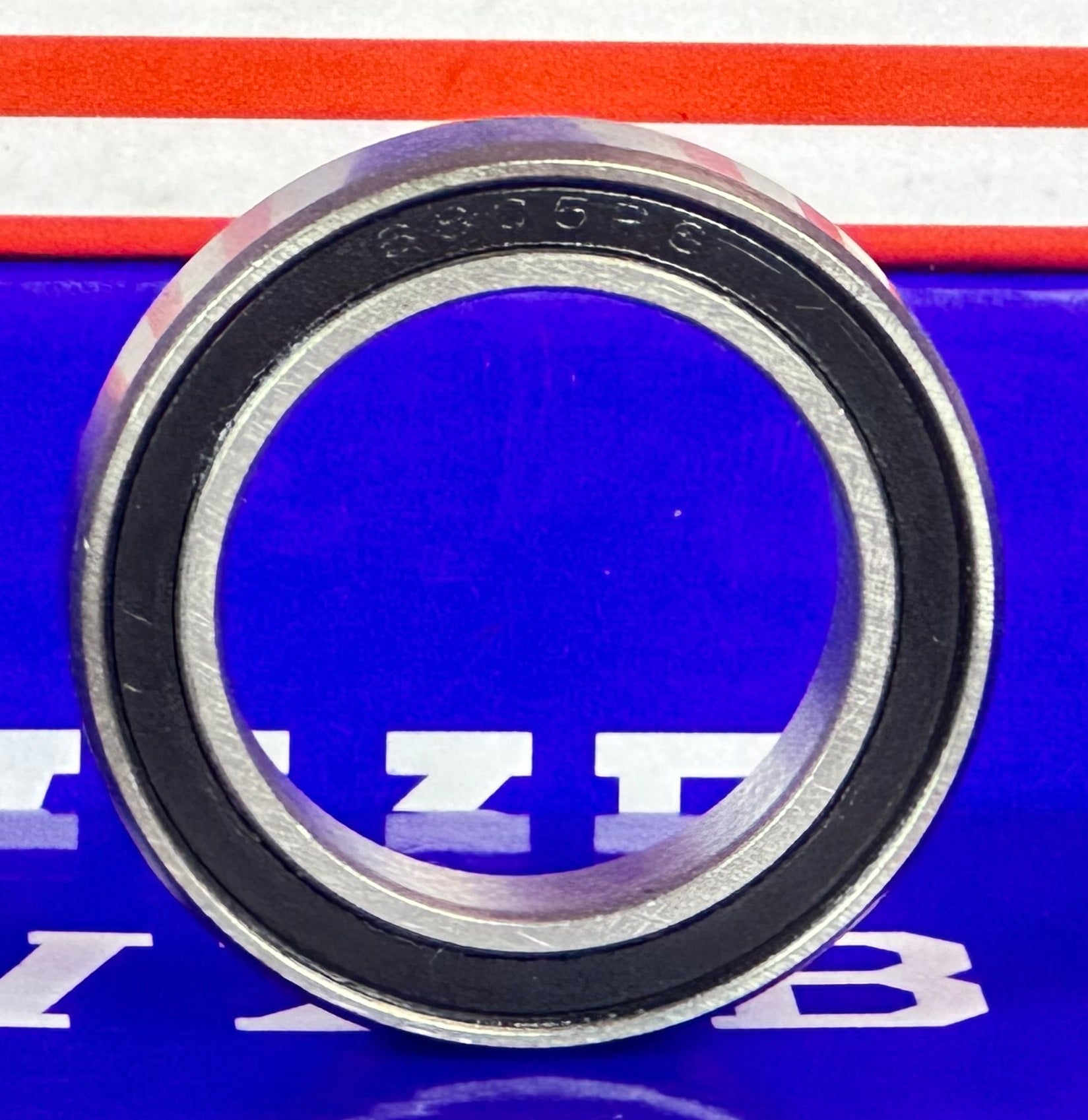

6805-2RS Ball Bearing - Deep Groove 6805RS

6805-2RS Sealed Deep Groove Ball Bearing – Slim Profile

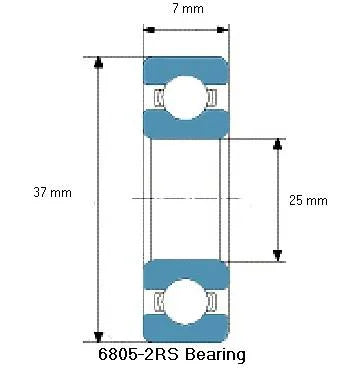

✔️ 25mm ID - 37mm OD - 7mm Wide

The 6805-2RS is a slim, single-row deep groove ball bearing engineered for compact spaces requiring smooth, efficient rotation. Equipped with rubber seals on both sides and pre-lubricated with grease, it’s ideal for electric motors, cycling hubs, and lightweight machinery where low friction and high speed are essential.

✅ Type: Single-row deep groove ball bearing (sealed)
✅ Inner diameter: 25mm
✅ Outer diameter: 37mm
✅ Width: 7mm
✅ Seals: Double rubber seals (2RS)
✅ Clearance: 1–11µm
✅ Inner ring tolerance: 0 to -12µm
✅ Outer ring tolerance: 0 to -13µm
✅ Lubrication: Grease pre-lubricated
✅ Max grease-lubricated speed: 11,000 RPM
✅ Dynamic load rating (Cr): 4.36 kN
✅ Static load rating (Cor): 2.6 kN
✅ Quantity: 1 bearing
✅ Brand: VXB
✅ Equivalents: 61805-2RS1, Koyo 6805-2RS, Nachi 6805-2NSL, NTN 6805LLU, FAG 6805-2RS, NSK 6805DD

💡 Why are slim-profile ball bearings like the 6805-2RS popular in modern assemblies?

They fit into tight spaces while handling moderate loads with high-speed efficiency.
Rubber seals help keep contaminants out and lubrication in.
Ideal for bikes, robotics, and compact rotating systems.

Lightweight and efficient - add the 6805-2RS to your precision project and keep it running smooth and silent!
