6315ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 75x160x37 Bearing

6315ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 75x160x37 Bearing

$262.79 USD
$291.99 USD $262.79 USD
Sale Sold out
Shipping calculated at checkout.

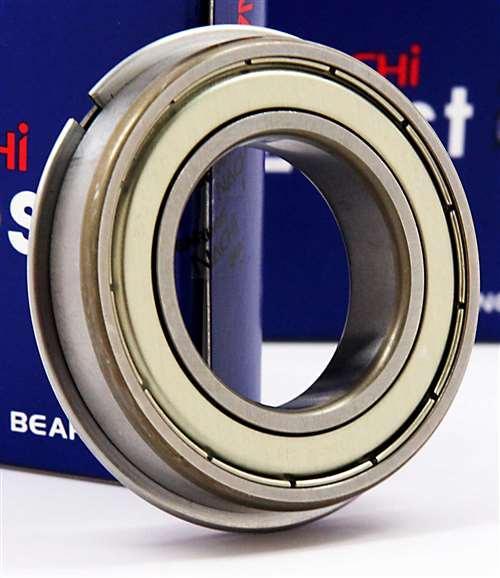

6315ZZENR Nachi Bearing
75mm x 160mm x 37mm
With Snap Ring (C clip)
Made in Japan

6315ZZENR Nachi Bearing with a Snap Ring, the 6315ZZENR inner diameter is 75mm, the 6315ZZENR outer diameter is 160mm, 6315ZZENR width is 37mm.

  • 6315ZZENR Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (ZZ) for added protection ZNR/ZZNR/2ZNR
  • Clearance: C3 (increased internal clearance for higher speed or thermal expansion)
  • Dimensions: 75mm x 160mm x 37mm/Metric
  • ID (inner diameter)/Bore: 75mm
  • OD (outer diameter): 160mm
  • Width: 37mm
  • Size: 75 x 160 x 37 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 113,000 N
  • Static load rating Cor: 77,000 N
  • Limiting Speed:
    • Grease Lubrication: 4,300 RPM
  • Equal: 6315 ZZ / 6315 2Z
  • Made in Japan

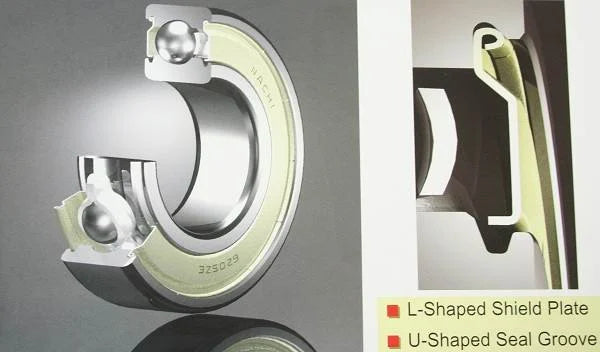

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
