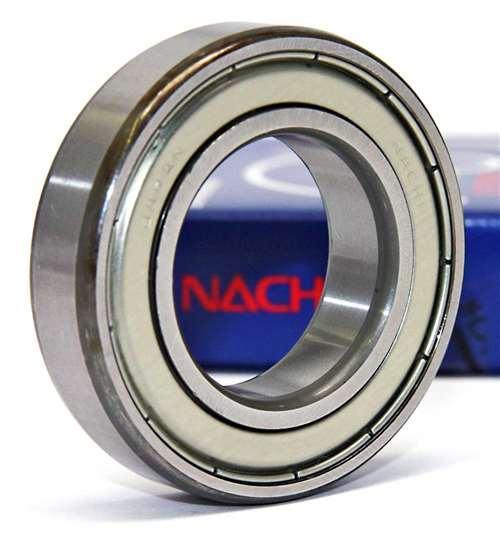

6210ZE Nachi Bearing Shielded C3 Japan 50x90x20mm

6210ZE Nachi Bearing Shielded C3 Japan 50x90x20mm

$42.74 USD
$47.49 USD $42.74 USD
Sale Sold out
Shipping calculated at checkout.
6210ZE Nachi Bearing
50mm x 90mm x 20mm
Made in Japan

6210ZE Nachi Bearing, 6210ZE is non-grease, the 6210ZE inner diameter is 50mm, the 6210ZE outer diameter is 90mm, 6210ZE width is 20mm.

  • 6210ZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 50mm x 90mm x 20mm/Metric
  • ID (inner diameter)/Bore: 50mm
  • OD (outer diameter): 90mm
  • Width: 20mm
  • Size: 50 x 90 x 20 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 35,000 N
  • Static load rating Cor: 23,200 N
  • Limiting Speed:
    • Grease Lubrication: 7,100 RPM
  • Made in Japan

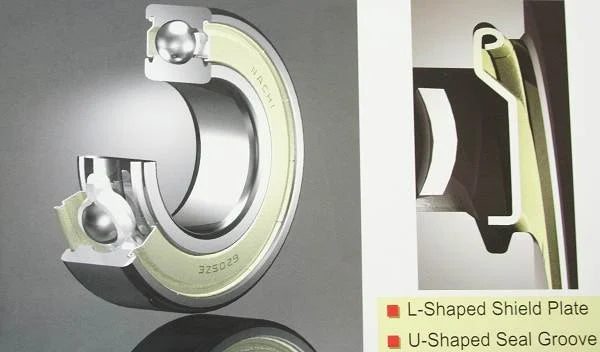

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
