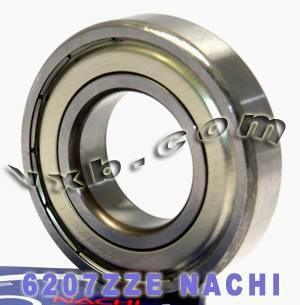

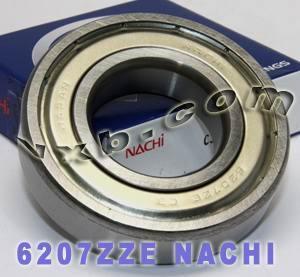

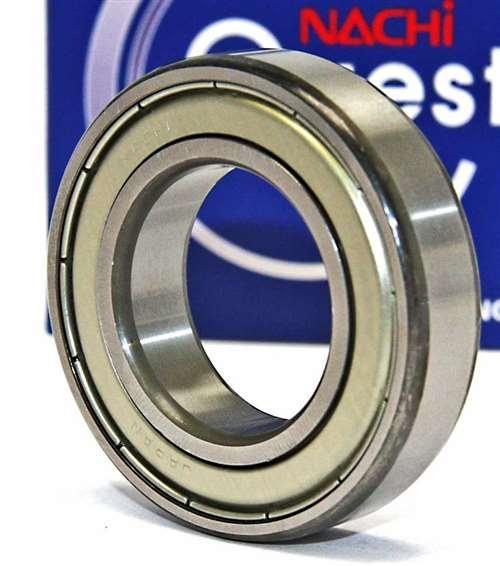

6207ZZE Nachi Bearing Shielded C3 Japan 35x72x17mm

6207ZZE Nachi Bearing Shielded C3 Japan 35x72x17mm

$19.94 USD
$28.49 USD $19.94 USD
Sale Sold out
Shipping calculated at checkout.
6207ZZE Nachi Bearing
35mm x 72mm x 17mm
Made in Japan

6207ZZE Nachi Bearing, the 6207ZZE inner diameter is 35mm, the 6207ZZE outer diameter is 72mm, 6207ZZE width is 17mm.

  • 6207ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Equal: 6207 ZZ / 6207 2Z
  • Dimensions: 35mm x 72mm x 17mm/Metric
  • ID (inner diameter)/Bore: 35mm
  • OD (outer diameter): 72mm
  • Width: 17mm
  • Size: 35 x 72 x 17 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 25,700 N
  • Static load rating Cor: 15,300 N
  • Limiting Speed:
    • Grease Lubrication: 9,800 RPM
  • Equivalents: 207KDD, 207SS, 6207.2ZR, 207SFF, 6207-2Z and 6207ZZE
  • Made in Japan

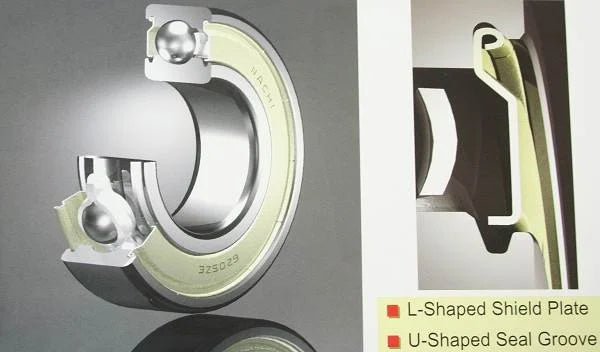

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
