VXB

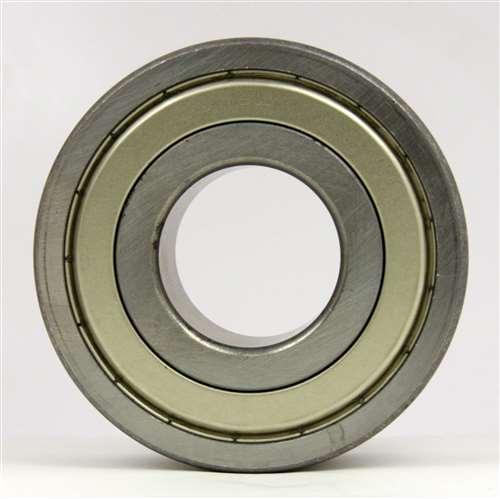

10-Pack 6203Z Single Shielded Bearings 17x40x12mm

10-Pack 6203Z Single Shielded Bearings 17x40x12mm

Regular price $26.99 USD
Regular price $29.99 USD Sale price $26.99 USD
Sale Sold out
Shipping calculated at checkout.
6203Z One Shield Ball Bearings
17mm x 40mm x 12mm


6203Z One Shield Ball Bearings, measures an inner diameter of 17mm, outer diameter is 40mm and the width is 12mm, Made from high-strength chrome steel for durability and performance, each bearing has Shield on one side to protect the bearing from dust or any possible contamination.

  • 6203Z Ball Bearings
  • Deep Groove Ball Bearings
  • Dimensions: 17mm x 40mm x 12mm/Metric
  • ID (inner diameter)/Bore: 17mm
  • OD (outer diameter): 40mm
  • Width: 12mm
  • Size: 17 x 40 x 12 mm
  • Closures: Metal shield (only one side)
  • Lubrication: Pre-lubricated with grease
  • Quantity: Pack of 10 Bearings
  • Dynamic load rating Cr: 9,550 N
  • Static load rating Cor: 4,800 N
  • Limiting Speed:
    • Grease Lubrication: 18,000 RPM
    • Oil Lubrication: 21,000 RPM
