Nachi

6009ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 45x75x16mm

6009ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 45x75x16mm

$35.99 USD
$39.99 USD $35.99 USD
Sale Sold out
Shipping calculated at checkout.

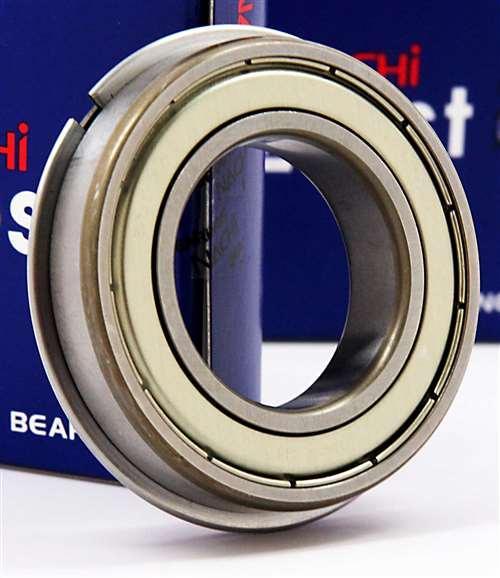

6009ZZENR Nachi Bearing
With Snap Ring (C clip)
Made in Japan

6009ZZENR Nachi Bearing with a Snap Ring, the 6009ZZENR inner diameter is 45mm, the 6009ZZENR outer diameter is 75mm, 6009ZZENR width is 16mm.

  • 6009ZZENR Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (ZZ) for added protection ZNR/ZZNR/2ZNR
  • Clearance: C3 (increased internal clearance for higher speed or thermal expansion)
  • Dimensions: 45mm x 75mm x 16mm/Metric
  • ID (inner diameter)/Bore: 45mm
  • OD (outer diameter): 75mm
  • Width: 16mm
  • Size: 45 x 75 x 16 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 20,900 N
  • Static load rating Cor: 15,200 N
  • Limiting Speed:
    • Grease Lubrication: 9,200 RPM
  • Equal: 6009 ZZ / 6009 2Z
  • Made in Japan

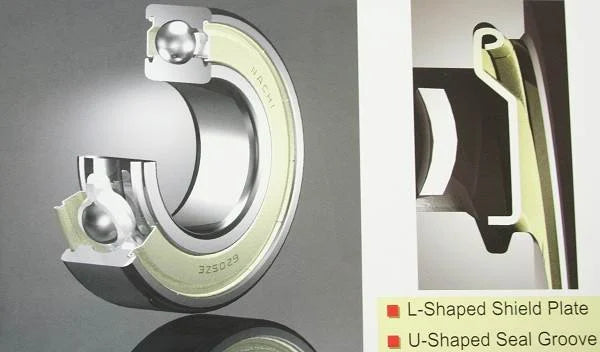

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
