• 6002ZZE Nachi Bearing Shielded C3 Japan 15x32x9mm
1 1

Nachi

6002ZZE Nachi Bearing Shielded C3 Japan 15x32x9mm

6002ZZE Nachi Bearing Shielded C3 Japan 15x32x9mm

$13.99 USD
$19.99 USD $13.99 USD
Sale Sold out
Shipping calculated at checkout.

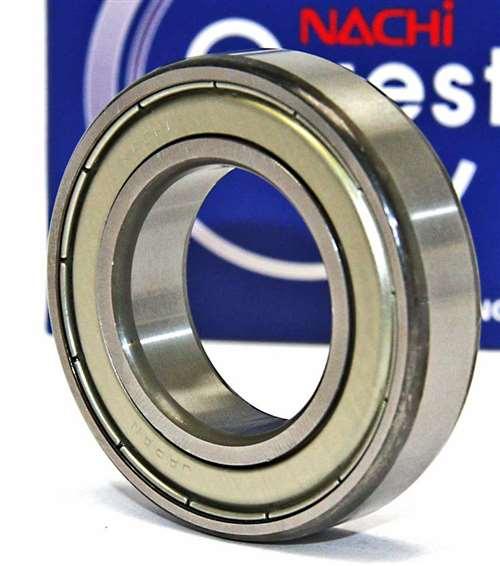

6002ZZE Shielded Nachi Bearing
1 Ball Bearing
Made in Japan

6002ZZE Shielded Nachi Bearing, the 6002ZZE inner diameter is 15mm, the 6002ZZE outer diameter is 32mm, 6002ZZE width is 9mm.

  • 6002ZZE Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 15mm x 32mm x 9mm/Metric
  • ID (inner diameter)/Bore: 15mm
  • OD (outer diameter): 32mm
  • Width: 9mm
  • Size: 15 x 32 x 9 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 5,600 N
  • Static load rating Cor: 2,840 N
  • Limiting Speed:
    • Grease Lubrication: 24,000 RPM
  • Equal: 6002 ZZ / 6002 2Z
  • Made in Japan

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
