• 6001ZZE Nachi Bearing Shielded C3 Japan 12x28x8mm
1 1

Nachi

6001ZZE Nachi Bearing Shielded C3 Japan 12x28x8mm

6001ZZE Nachi Bearing Shielded C3 Japan 12x28x8mm

$13.99 USD
$19.99 USD $13.99 USD
Sale Sold out
Shipping calculated at checkout.

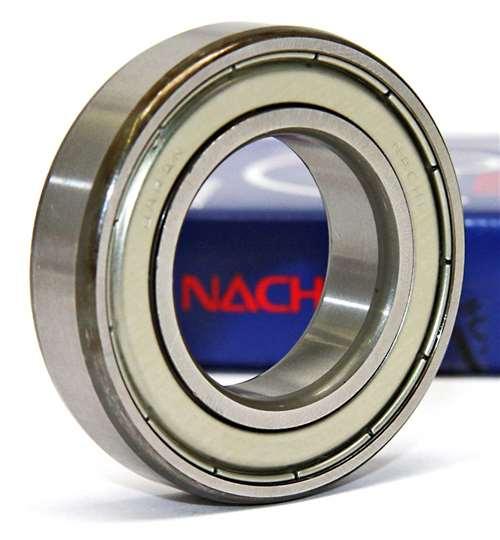

6001ZZE Shielded Nachi Bearing
1 Ball Bearing
Made in Japan

6001ZZE Shielded Nachi Bearing, the 6001ZZE inner diameter is 12mm, the 6001ZZE outer diameter is 28mm, 6001ZZE width is 8mm.

  • 6001ZZE Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 12mm x 28mm x 8mm/Metric
  • ID (inner diameter)/Bore: 12mm
  • OD (outer diameter): 28mm
  • Width: 8mm
  • Size: 12 x 28 x 8 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 5,100 N
  • Static load rating Cor: 2,390 N
  • Limiting Speed:
    • Grease Lubrication: 28,000 RPM
  • Equal: 6001 ZZ / 6001 2Z
  • Made in Japan


Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
