5314BNLS Nachi Angular Contact Bearing - Double Row - 70x150x63.5 Bearing

5314BNLS Nachi Angular Contact Bearing - Double Row - 70x150x63.5 Bearing

$412.19 USD
$457.99 USD $412.19 USD
Sale Sold out
Shipping calculated at checkout.

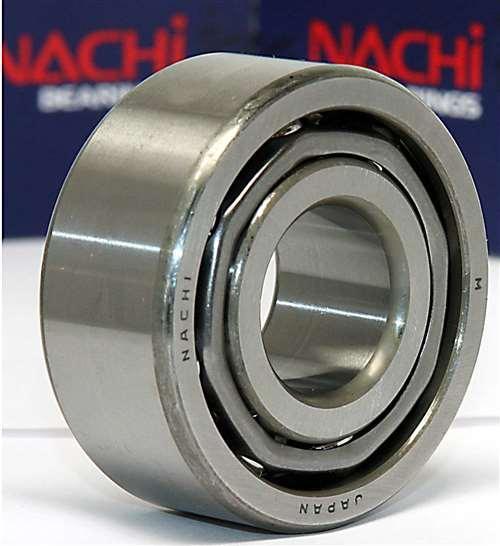

5314BNLS Nachi Angular Ball Bearing
70mm x 150mm x 63.5mm
Made in Japan

5314BNLS Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 70mm, outer diameter is 150mm and width is 63.5mm.

  • 5314BNLS Nachi Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Dimensions: 70mm x 150mm x 63.5mm/Metric
  • ID (inner diameter)/Bore: 70mm
  • OD (outer diameter): 150mm
  • Width: 63.5mm
  • Size: 70 x 150 x 63.5mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 163,000 N
  • Static load rating Cor: 132,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,200 RPM
    • Oil Lubrication: 4,300 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
