• 5312ZZ Nachi Angular Contact Bearing - Double Row - 60x130x54 Bearing
  • 5312ZZ Nachi Angular Contact Bearing - Double Row - 60x130x54 Bearing
  • 5312ZZ Nachi Angular Contact Bearing - Double Row - 60x130x54 Bearing
1 3

Nachi

5312ZZ Nachi Angular Contact Bearing - Double Row - 60x130x54 Bearing

5312ZZ Nachi Angular Contact Bearing - Double Row - 60x130x54 Bearing

$342.90 USD
$381.00 USD $342.90 USD
Sale Sold out
Shipping calculated at checkout.

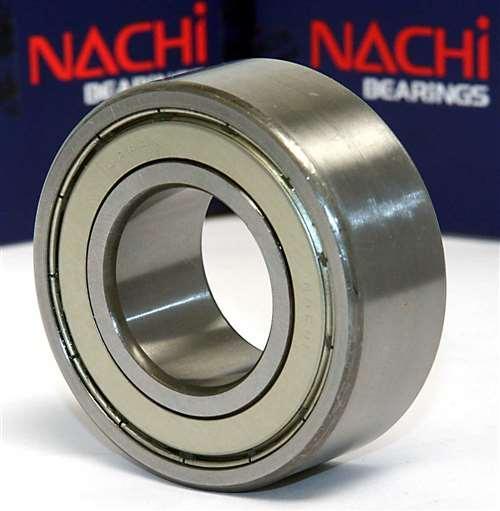

5312ZZ Nachi Double Row Angular Ball Bearing
60mm x 130mm x 54mm
Double Shielded
Made in Japan

5312ZZ Nachi Double Row Angular Ball Bearing, bearing is Double Shielded, Made in Japan, inner diameter is 60mm, outer diameter is 130mm and width is 54mm.

  • 5312ZZ Nachi Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Double Shielded
  • Dimensions: 60mm x 130mm x 54mm/Metric
  • ID (inner diameter)/Bore: 60mm
  • OD (outer diameter): 130mm
  • Width: 54mm
  • Size: 60 x 130 x 54 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 128,000 N
  • Static load rating Cor: 101,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,800 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
