Nachi

5307ZZ Nachi Angular Contact Bearing - Double Row - 35x80x34.9 Bearing

5307ZZ Nachi Angular Contact Bearing - Double Row - 35x80x34.9 Bearing

Regular price $100.72 USD
Regular price $111.91 USD Sale price $100.72 USD
Sale Sold out
Shipping calculated at checkout.

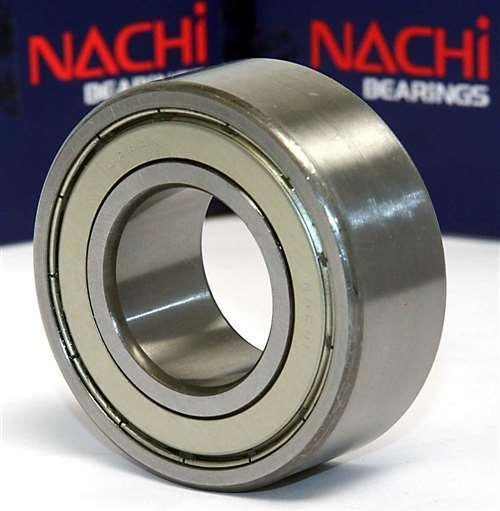

5307ZZ Nachi Double Row Angular Ball Bearing
Double Shielded
35mm x 80mm x 34.9mm
Made in Japan


5307ZZ Nachi Double Row Angular Ball Bearing, bearing is Double Shielded, Made in Japan, inner diameter is 35mm, outer diameter is 80mm and width is 34.9mm.

  • 5307ZZ Nachi Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Double Shielded
  • Dimensions: 35mm x 80mm x 34.9mm/Metric
  • ID (inner diameter)/Bore: 35mm
  • OD (outer diameter): 80mm
  • Width: 34.9mm
  • Size: 35 x 80 x 34.9 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 52,000 N
  • Static load rating Cor: 37,000 N
  • Limiting Speed:
    • Grease Lubrication: 6,300 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
