• 5210 Nachi Angular Contact Bearing - Double Row - 50x90x30.2 Japan Made
  • 5210 Nachi Angular Contact Bearing - Double Row - 50x90x30.2 Japan Made
  • 5210 Nachi Angular Contact Bearing - Double Row - 50x90x30.2 Japan Made
1 3

Nachi

5210 Nachi Angular Contact Bearing - Double Row - 50x90x30.2 Japan Made

5210 Nachi Angular Contact Bearing - Double Row - 50x90x30.2 Japan Made

$88.14 USD
$97.93 USD $88.14 USD
Sale Sold out
Shipping calculated at checkout.

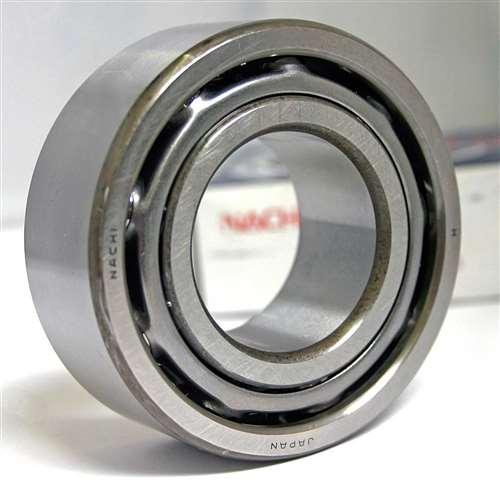

5210 Nachi Double Row Angular Ball Bearing
50mm x 90mm x 30.2mm
Made in Japan

5210 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 50mm, outer diameter is 90mm and width is 30.2mm.

  • 5210 Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 50mm x 90mm x 30.2mm/Metric
  • ID (inner diameter)/Bore: 50mm
  • OD (outer diameter): 90mm
  • Width: 30.2mm
  • Size: 50 x 90 x 30.2 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 54,500 N
  • Static load rating Cor: 44,500 N
  • Limiting Speed:
    • Grease Lubrication: 5,000 RPM
    • Oil Lubrication: 6,700 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
