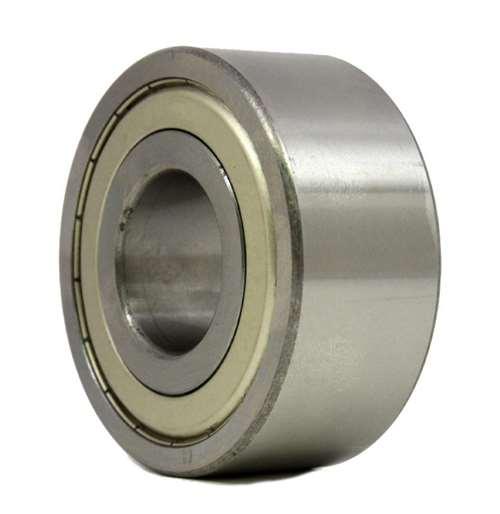

5203FF 2-Row Angular Contact Ball Bearing - Shielded - 17x40x17.5mm

5203FF Angular Contact Ball Bearing
Double Row - 17mm x 40mm x 17.5mm - Shielded

The 5203FF is a double-row angular contact ball bearing, ideal for applications requiring combined radial and axial load support. With its compact design and increased load-carrying capacity, it's commonly used in pumps, gearboxes, and electric motors. The dual metal shields help keep contaminants out while retaining lubrication for smooth operation.

✅ Item: 5203FF Bearing
✅ Type: Double-Row Angular Contact Ball Bearing
✅ Material: Chrome Steel
✅ Shield Type: Double Metal Shields (ZZ)
✅ Lubrication: Pre-lubricated with grease
✅ Dimensions: 17mm (ID) x 40mm (OD) x 17.5mm (Width)
✅ Dynamic Load Rating (Cr): 15,000 N
✅ Static Load Rating (Cor): 9,250 N
✅ Limiting Speed (Grease): 12,000 RPM
✅ Quantity: 1 Bearing

💡 Why choose a double-row angular contact bearing?
Double-row angular contact bearings provide higher rigidity and greater load support than single-row types, making them perfect for equipment that handles both radial and axial loads - especially where space is limited.
