Nachi

5201ZZE Nachi Angular Contact Bearing - Double Row - 12x32x15.9 Bearing

5201ZZE Nachi Angular Contact Bearing - Double Row - 12x32x15.9 Bearing

$35.99 USD
$39.99 USD $35.99 USD
Sale Sold out
Shipping calculated at checkout.

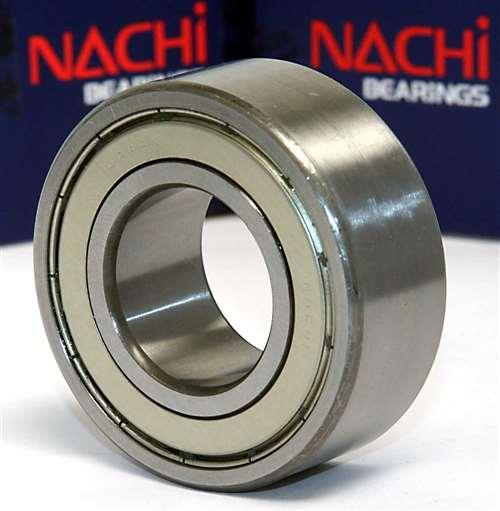

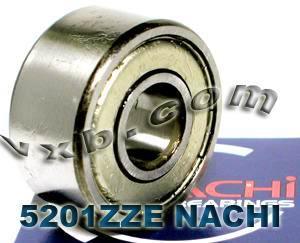

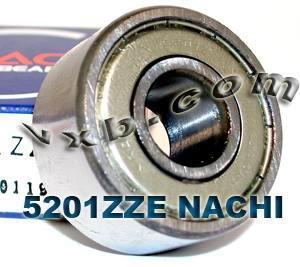

5201ZZE Nachi Double Row Angular Ball Bearing
Double Shielded
12mm x 32mm x 15.9mm
Made in Japan

5201ZZE Nachi Double Row Angular Ball Bearing and bearing is Double Shielded, Made in Japan, inner diameter is 12mm, outer diameter is 32mm and width is 15.9mm.

  • 5201ZZE Angular Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Double Shielded
  • Dimensions: 12mm x 32mm x 15.9mm/Metric
  • ID (inner diameter)/Bore: 12mm
  • OD (outer diameter): 32mm
  • Width: 15.9mm
  • Size: 12 x 32 x 15.9 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 10,700 N
  • Static load rating Cor: 5,950 N
  • Limiting Speed:
    • Grease Lubrication: 16,000 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
