5/8" Bearing HCF202-10 Square Flanged Cast Housing Mounted Bearing - Eccentric Collar

5/8" Bearing HCF202-10 Square Flanged Cast Housing Mounted Bearing - Eccentric Collar

$22.49 USD
$24.99 USD $22.49 USD
Sale Sold out
Shipping calculated at checkout.
HCF202-10 Four Bolt Flanged Unit
Set Screw Type with Eccentric Colllar
5/8" Inch Inner Diameter


HCF202-10 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 5/8" inch

  • HCF202-10 Ball Bearing
  • Flange Mounted Bearing Eccentric Collar Lock
  • Bolt Size: 3/8" inch
  • Shaft Diameter: 5/8" inch
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: HC202-10
  • Housing No: F202
  • Quantity: 1 Bearing

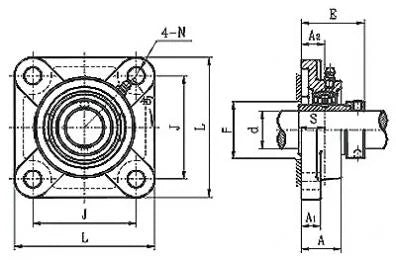

Dimensions
L j A2 A1 A E N S F min.
3 3/8" Inch 2 17/32" 3/4" 19/32" 1 5/32" 1 25/32" 7/16" 21/32" 1 7/32"
