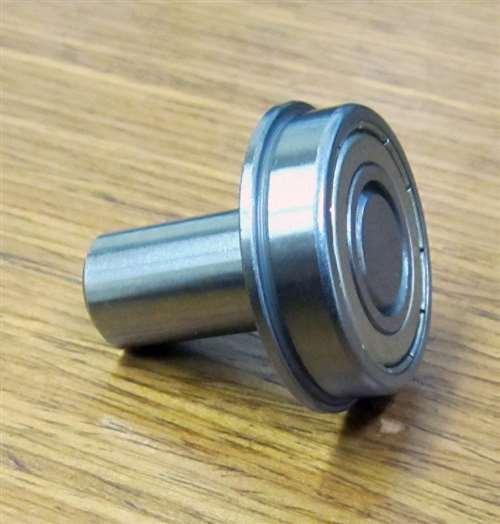

5/16 Inch Flanged Bearing - 1/8 diameter integrated 3/8 Axle

5/16" inch (7.94mm) Flanged Ball Bearing with 1/8" inch (3.18mm) diameter integrated 3/8" inch (9.53mm) Long Axle, Pin Diameter is 1/8" inch, Bearing Outer diameter is 5/16" Inch (9.53mm), and Width of the assembly is 3/8" Inch (9.53mm Long), made from durable 52100 alloy steel, commonly known as chrome steel.

• 1/8" x 5/16" x 3/8" Ball Bearing
• Flanged Axle Integrated Ball Bearing
• Assembly Dimensions: 1/8" x 5/16" x 3/8" Inches
• Assembly Dimensions: 0.125" x 0.313" x 0.375" Inches
• Size: 3.18mm x 7.94mm x 9.53mm
• Pin diameter: 1/8" (3.18mm axle diameter)
• Bearing Outer Diameter: 5/16" Inch (0.313"=7.94mm)
• Width of the assembly: 3/8" Inch (9.53mm Long)
