• 29460E Spherical Roller Thrust Bearing Japan 300x540x145 Extramm
1 1

Nachi

29460E Spherical Roller Thrust Bearing Japan 300x540x145 Extramm

29460E Spherical Roller Thrust Bearing Japan 300x540x145 Extramm

$13,763.69 USD
$15,292.99 USD $13,763.69 USD
Sale Sold out
Shipping calculated at checkout.

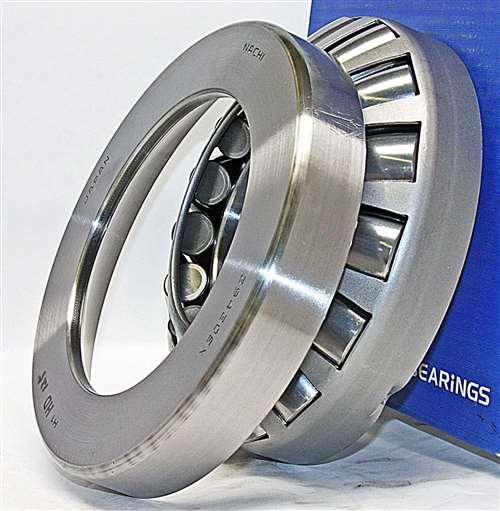

29460E Nachi Spherical Roller Bearing
Bronze Cage
Made in Japan

29460E Nachi Spherical Roller Bearing, Bronze Cage, Made in Japan, the 29460E inner diameter is 300mm, the 29460E outer diameter is 540mm and the 29460E width is 145mm.

  • 29460E Roller Bearing
  • Nachi Spherical Roller Bearing
  • Cage: Bronze Cage
  • Dimensions: 300mm x 540mm x 145mm/Metric
  • ID (inner diameter)/Bore: 300mm
  • OD (outer diameter): 540mm
  • Width: 145mm
  • Size: 300 x 540 x 145 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 3,650,000 N
  • Static load rating Cor: 14,800,000 N
  • Limiting Speed:
    • Oil Lubrication: 540 RPM
  • Made in Japan

Nachi Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Nachi Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
