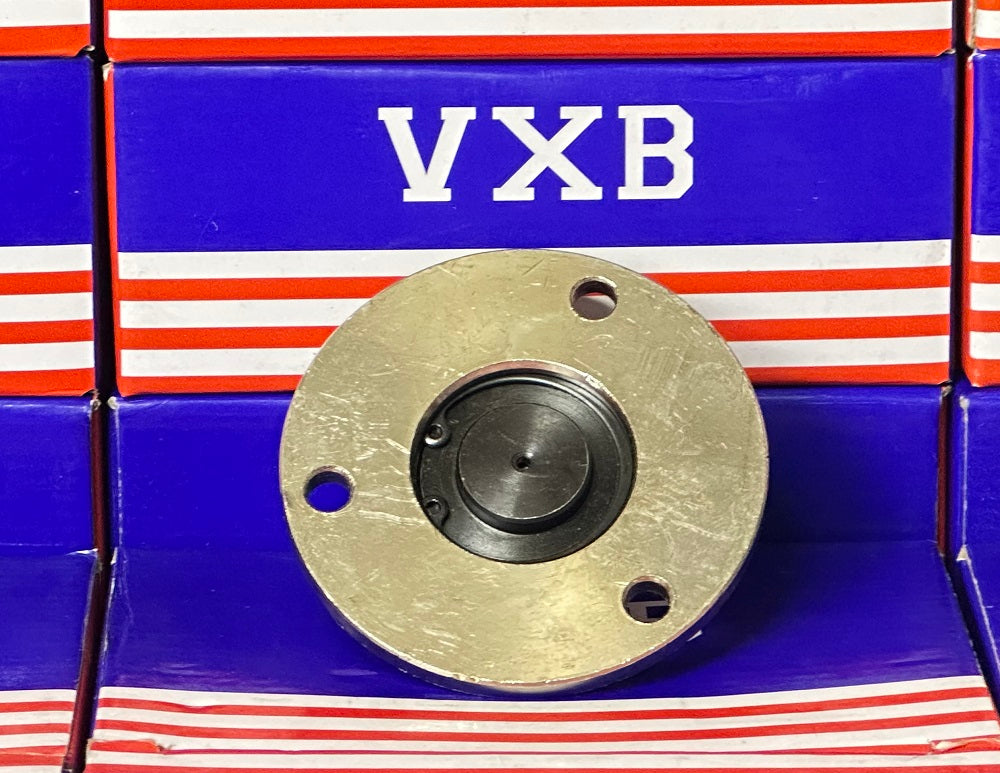

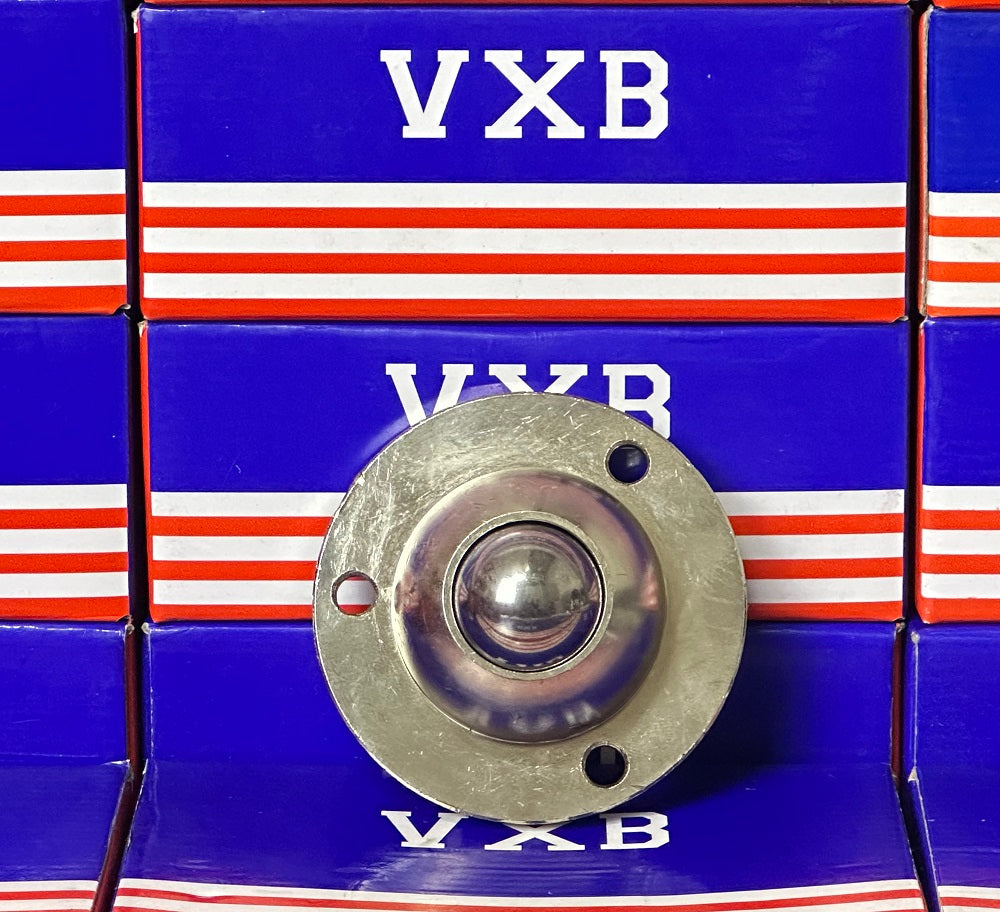

286 lbs Stainless Steel Ball Transfer Unit - Flush Mount - Heavy Duty

286 lbs Heavy Duty Stainless Steel Ball Transfer Unit
Flush Mount - 3-Hole Surface Style - 1" Main Ball Diameter

This heavy-duty stainless steel ball transfer unit is built for industrial-grade applications where smooth, omnidirectional movement is essential. It’s ideal for conveyor systems, cargo platforms, assembly tables, and workstation setups requiring easy maneuverability of heavy loads.

✅ Load Capacity: 286 lbs
✅ Breaking Load: 330 lbs
✅ Main Ball Diameter (d): 25.4mm (1")
✅ Outer Housing Diameter (D): 45mm (1.77")
✅ Height (H): 32mm (1.25")
✅ Mounting Depth (h1): 8.5mm (0.33")
✅ Height from Base to Ball Top (h3): 27mm (1.06")
✅ Mounting Hole Distance (P): 58mm (2.28")
✅ Overall Length (L): 72mm (2.83")
✅ Material: Stainless Steel
✅ Quantity: 1 Transfer Unit
✅ Mounting: Flush with 3-hole configuration
✅ Weight: 0.15 kg

💡 What are ball transfer units used for in material handling?
Ball transfer units provide effortless multidirectional movement of goods and components. They’re perfect for conveyor tables or packaging lines where rotating or redirecting items with minimal resistance is key to speed and precision.
