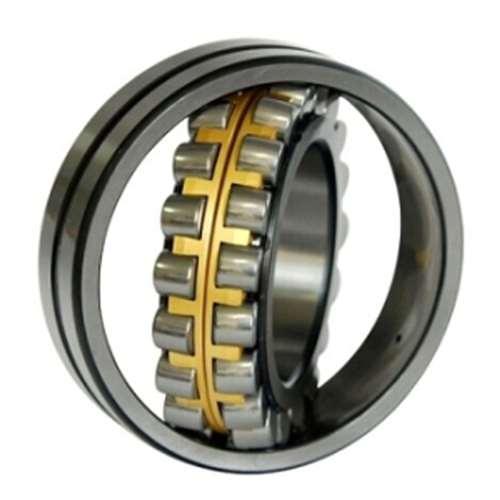

22324KC3W33 Tapered Bore Spherical Roller Bearing 120x260x86mm

22324KC3W33 Tapered Bore Spherical Roller Bearing - Bronze Cage
120mm x 260mm x 86mm - High Load, Self-Aligning, Taper Fit

The 22324KC3W33 is a heavy-duty tapered bore spherical roller bearing with a bronze cage and C3 clearance - engineered to handle high radial and axial loads while compensating for shaft misalignment.

✅ Item: 22324KC3W33
✅ Type: Tapered Bore Spherical Roller Bearing
✅ Size: 120mm ID x 260mm OD x 86mm Width
✅ Bore Type: Tapered (for use with adapter/withdrawal sleeves)
✅ Cage: Bronze
✅ Clearance: C3 (Expanded for Thermal Expansion)
✅ Dynamic Load Rating (Cr): 1,180,000 N
✅ Static Load Rating (Cor): 1,040,000 N
✅ Max Speed (Grease): 2,700 RPM
✅ Max Speed (Oil): 3,450 RPM
✅ Quantity: 1 Bearing
✅ Brand: VXB

💡 When should you choose a bearing like the 22324KC3W33?
Its tapered bore and rugged design make it ideal for large rotating machinery where secure shaft fit, high-load capacity, and alignment flexibility are critical - such as in mills, crushers, or vibrating screens.
