Nachi

22324EXW33K Nachi Roller Bearing Tapered Bore 120x260x86 Bearing

22324EXW33K Nachi Roller Bearing Tapered Bore 120x260x86 Bearing

$1,102.49 USD
$1,224.99 USD $1,102.49 USD
Sale Sold out
Shipping calculated at checkout.
22324EXW33K

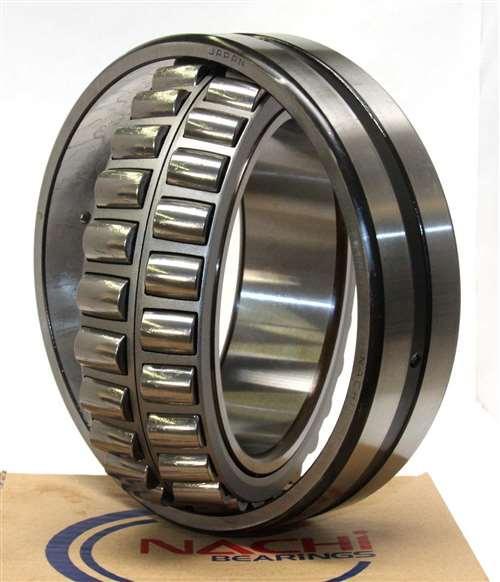

Nachi Spherical Roller Bearing
Steel Cage : Tapered Bore
Made in Japan

22324EXW33K Nachi Spherical Roller Bearing, Steel Cage, the bearing has a tapered inner ring bore (K), Made in Japan, the 22324EXW33K inner diameter is 120mm, the 22324EXW33K outer diameter is 260mm and the 22324EXW33K width is 86mm.

  • 22324EXW33K Roller Bearing
  • Nachi Spherical Roller Bearing
  • Cage: Steel Cage
  • Bore: Tapered Bore
  • Dimensions: 120mm x 260mm x 86mm/Metric
  • ID (inner diameter)/Bore: 120mm
  • OD (outer diameter): 260mm
  • Width: 86mm
  • Size: 120 x 260 x 86 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 1,250,000 N
  • Static load rating Cor: 1,130,000 N
  • Limiting Speed:
    • Grease Lubrication: 1,800 RPM
    • Oil Lubrication: 2,600 RPM
  • Made in Japan

Nachi Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Nachi Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
