Nachi

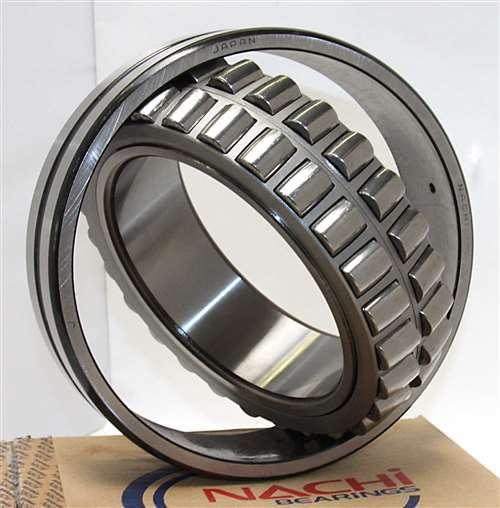

22315EXW33 Nachi Roller Bearing Japan 75x160x55 Spherical Bearing

22315EXW33 Nachi Roller Bearing Japan 75x160x55 Spherical Bearing

$407.70 USD
$453.00 USD $407.70 USD
Sale Sold out
Shipping calculated at checkout.
22315EXW33
Nachi Spherical Roller Bearing
Steel Cage
75mm x 160mm x 55mm
Made in Japan

22315EXW33 Nachi Spherical Roller Bearings, Steel Cage, Made in Japan, the 22315EXW33 inner diameter is 75mm, the 22315EXW33 outer diameter is 160mm and the 22315EXW33 width is 55mm.

  • 22315EXW33 Spherical Roller Bearing
  • Nachi Spherical Roller Bearing
  • Cage: Steel Cage
  • Dimensions: 75mm x 160mm x 55mm/Metric
  • ID (inner diameter)/Bore: 75mm
  • OD (outer diameter): 160mm
  • Width: 55mm
  • Size: 75 x 160 x 55 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 550,000 N
  • Static load rating Cor: 475,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,800 RPM
    • Oil Lubrication: 3,600 RPM
  • Made in Japan

Nachi Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Nachi Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
