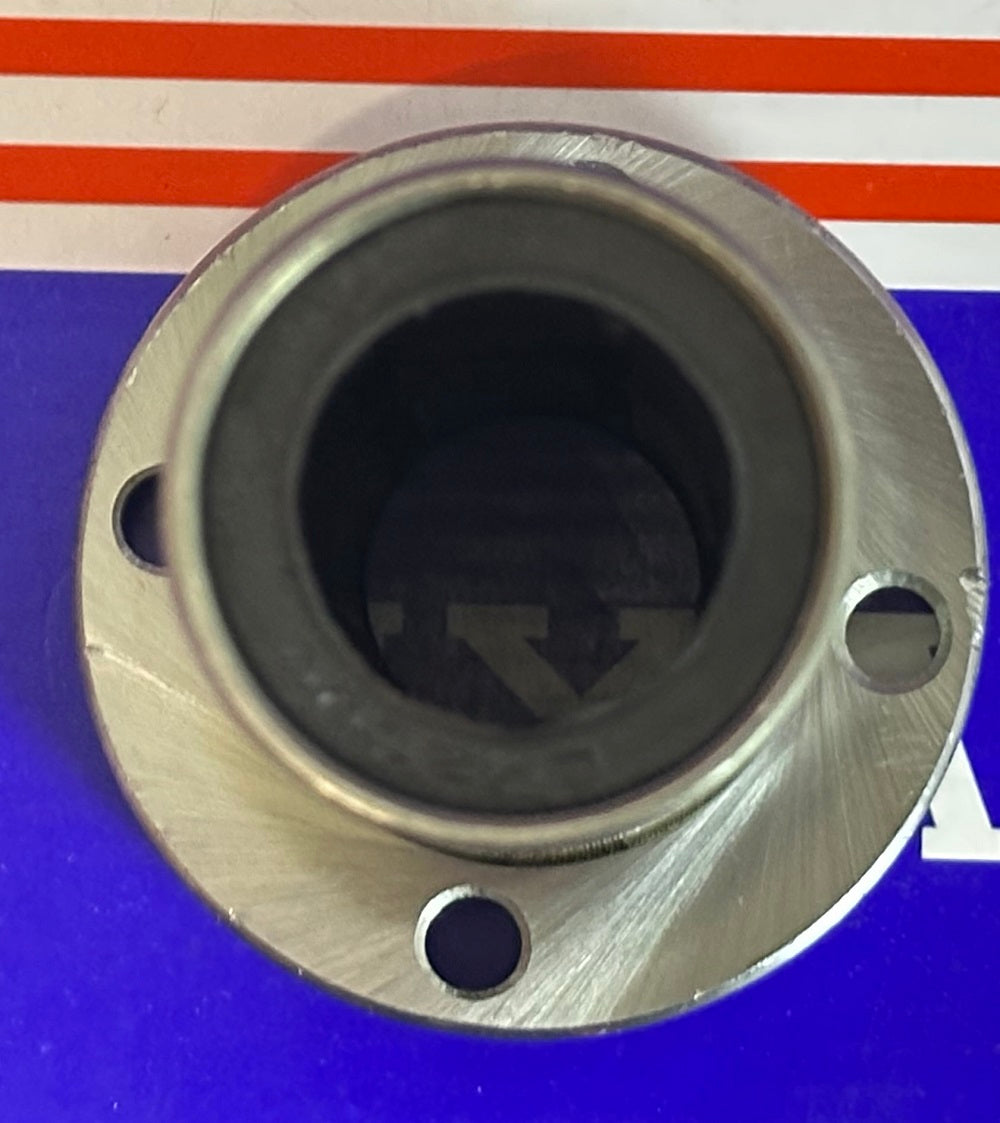

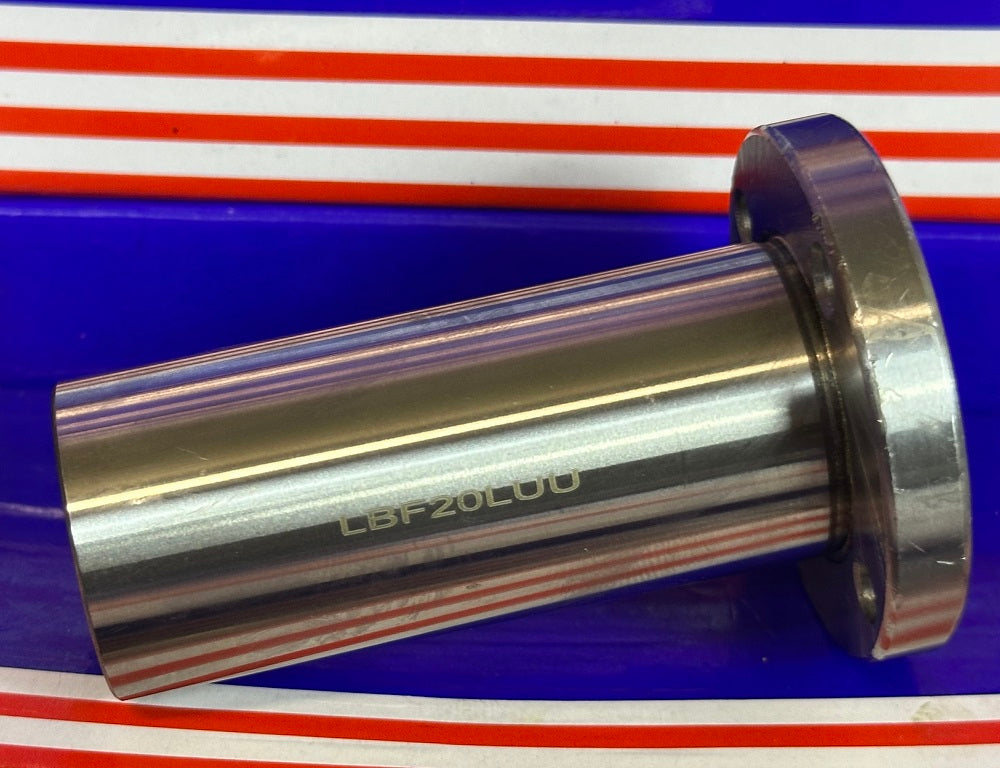

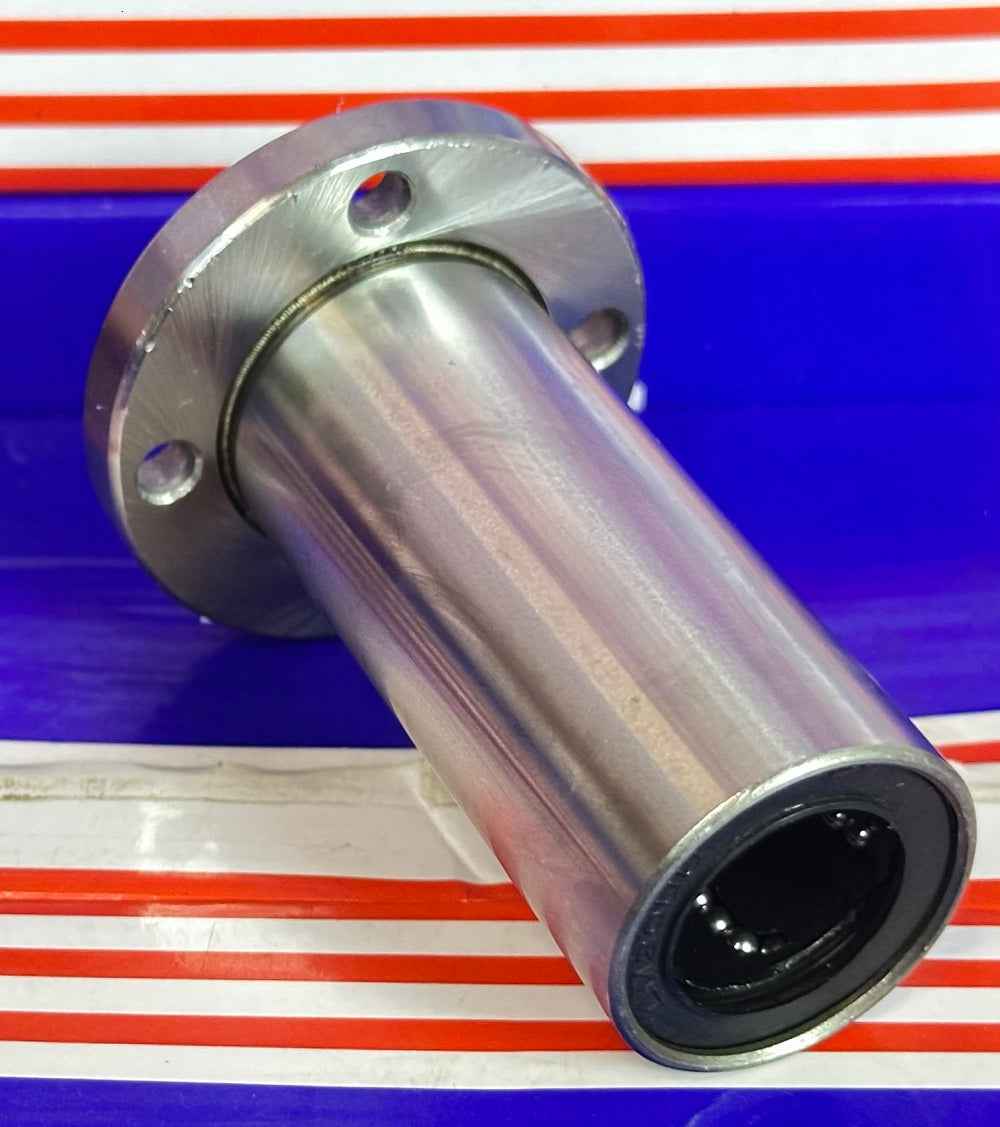

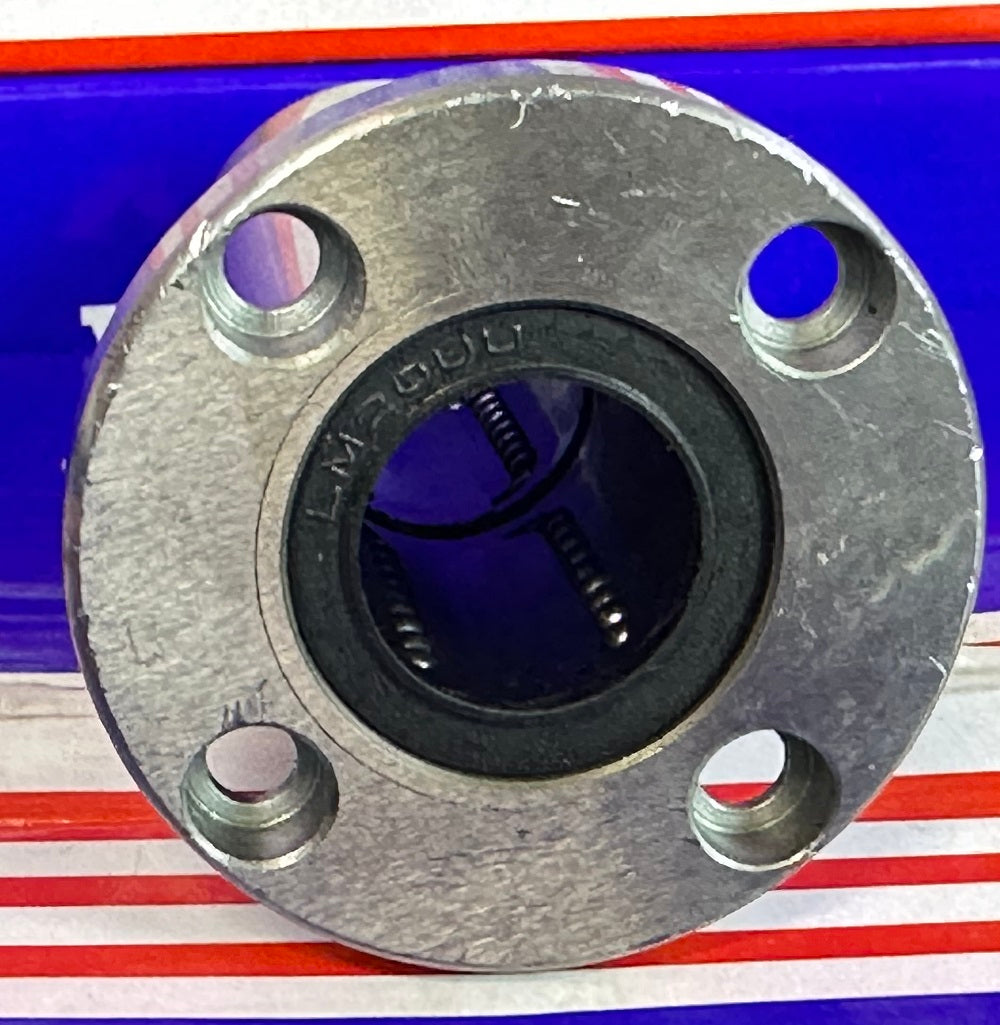

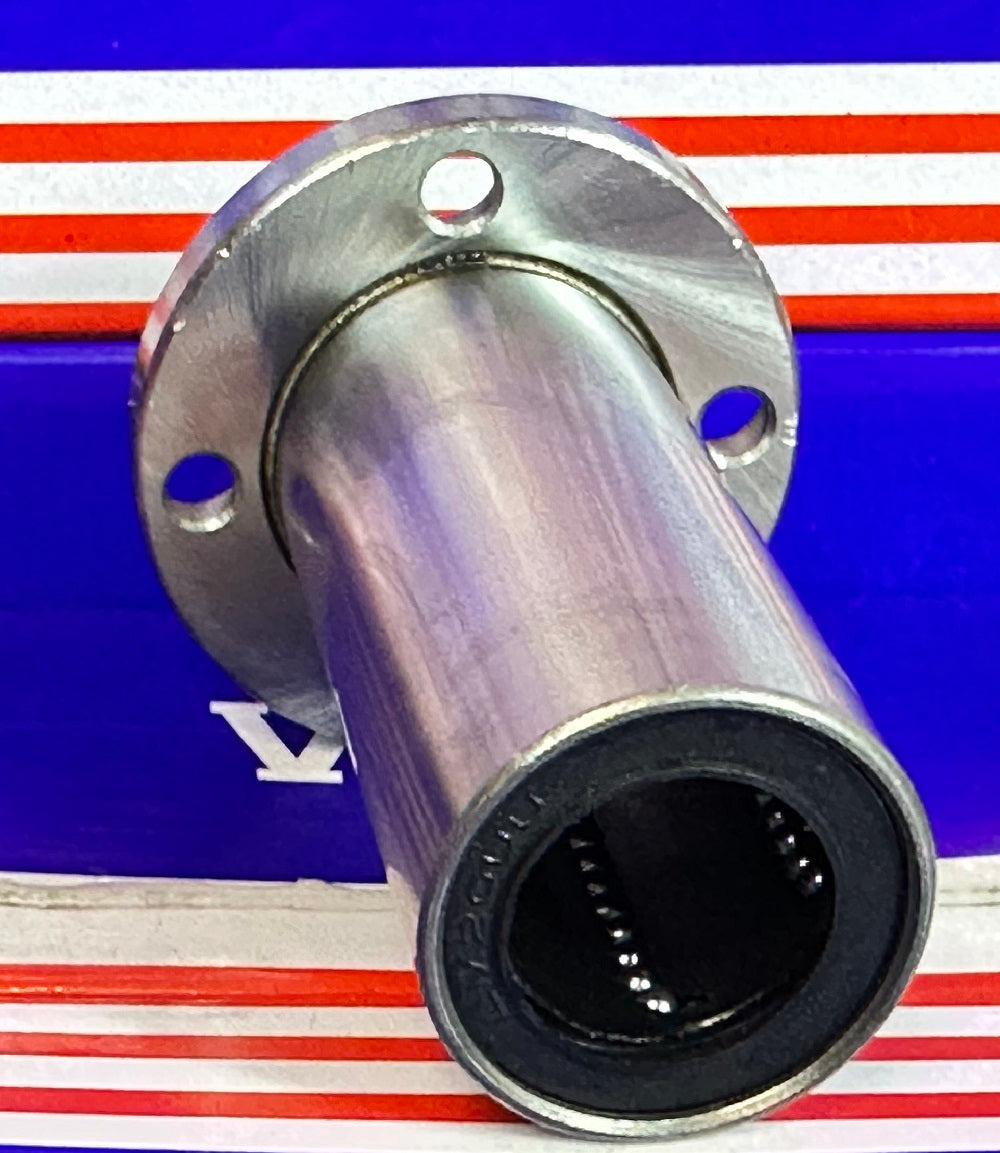

LBF20LUU Round Flanged Linear Motion Long Ball Bushing, inner diameter is 20mm, outer diameter is 32mm, and length is 80mm.
- LBF20LUU Ball Bushing
- Flanged Linear Motion Ball Bushing
- Inner Diameter: 20mm
- Outer Diameter: 32mm
- Length: 80mm
- Dynamic load rating: 1400 N
- Static load rating: 2740 N
- Quantity: 1 Bearing
|

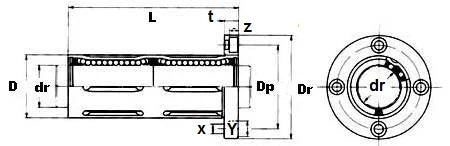

Major dimensions and tolerance (mm)
|
|---|
| dr |
D |
L |
Flange |
| mm |
tolerance |
mm |
tolerance |
mm |
tolerance |
Df |
K |
t |
Dp |
X |
Y |
Z |
| 20 |
0-12 |
32 |
0-19 |
80 |
300 |
54 |
42 |
8 |
43 |
5.5 |
9 |
5.1 |
|
