20mm 42.5 Rail Guideway System Flanged Slide Unit Linear Motion

20mm 42.5 Rail Guideway System Flanged Slide Unit Linear Motion

$302.40 USD
$336.00 USD $302.40 USD
Sale Sold out
Shipping calculated at checkout.
We don't Offer International Shipping

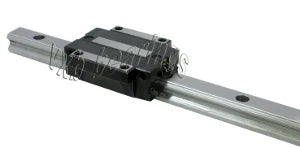

20mm Linear Guideway System
42.5" Inch length Rail

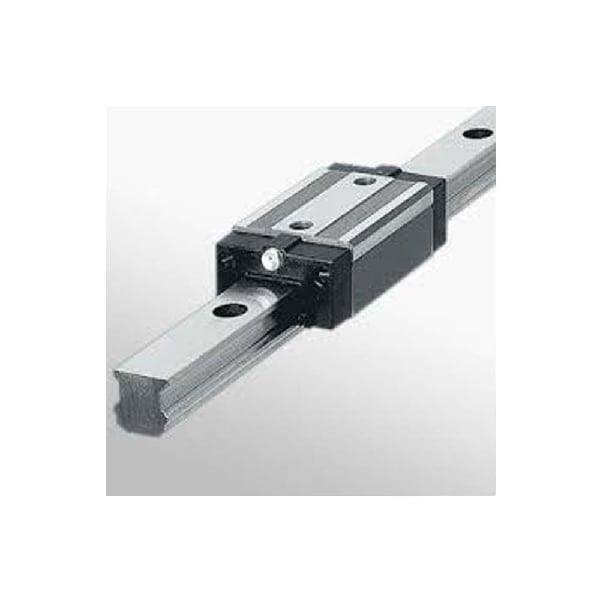

Complete linear guideway system with one Flanged Square block installed, Diameter Shaft is 20mm and Rail long is 42.5" Inch.

  • Diameter Shaft: 20mm
  • Rail length: 42.5" Inch
  • Dynamic load rating: 17.75 KN
  • Static load rating: 37.84 KN
  • High repeatability and smooth running performance
  • Stiffness, strength and accuracy for improved production processes

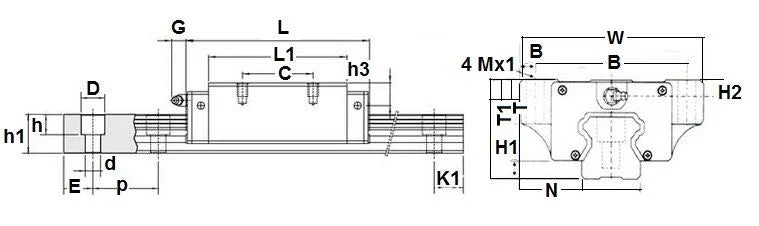

Rail
Name		 Rail Dimensions (mm) Block
Name		 Block Dimensions (mm)
H H1 N d D P E W B B1 C L1 L K1 G M T T1 H2 H3
HYR20-4000 30 4.6 21.5 9.6 9.5 60 20 HYW20CA 63 53 5 40 50.5 77.5 10.25 12 M6 8 10 6 7
