20mm 30 Rail Guideway System Square Slide Unit Linear Motion

20mm 30 Rail Guideway System Square Slide Unit Linear Motion

$299.70 USD
$333.00 USD $299.70 USD
Sale Sold out
Shipping calculated at checkout.
We don't Offer International Shipping

20mm Linear Guideway System
30" Inch length Rail

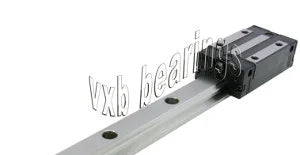

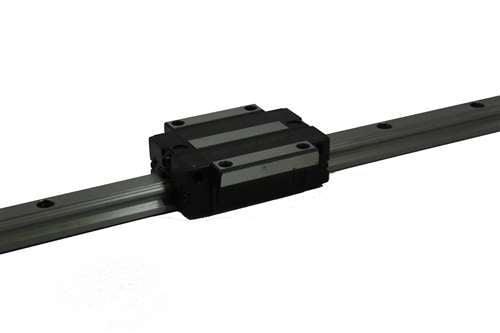

Complete linear guideway system with one Square block installed, Diameter Shaft is 20mm and Rail long is 30" Inch.

  • Diameter Shaft: 20mm
  • Rail length: 30" Inch
  • Block Dynamic load rating: 17.75 KN
  • Block Static load rating: 37.84 KN
  • High repeatability and smooth running performance
  • Stiffness, strength and accuracy for improved production processes

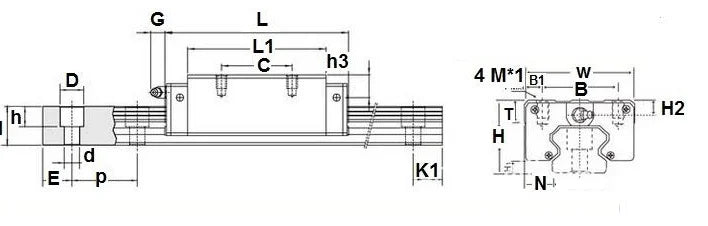

H=HYR20-4000

H1=30

N=4.6

d=12

D=6

E=9.5

P=20

W=60

B=HYH20CA

B1=44

C=32

L1=6

L36

K1=5.5
