VXB

15mm 30 Rail Guideway System Flanged Square Slide Linear Motion

15mm 30 Rail Guideway System Flanged Square Slide Linear Motion

$280.80 USD
$312.00 USD $280.80 USD
Sale Sold out
Shipping calculated at checkout.
We don't Offer International Shipping


15mm Linear Guideway System
30" Inch length Rail

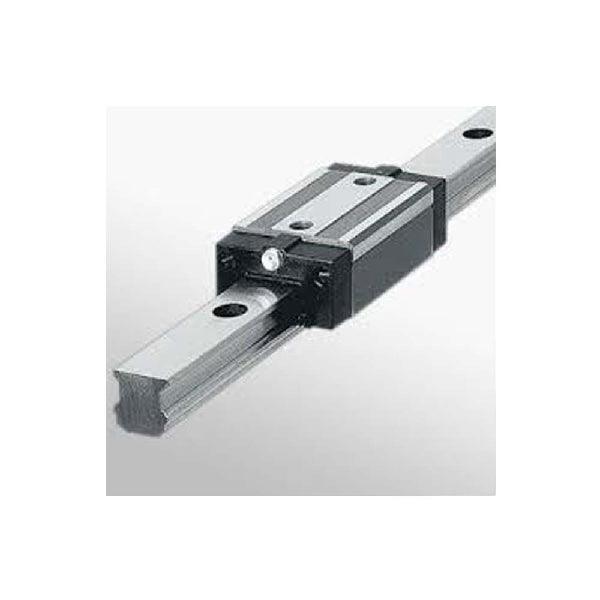

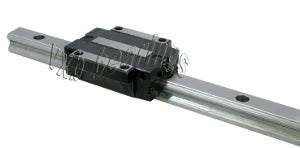

Complete linear guideway system with one Flanged Square type block installed, Diameter Shaft is 15mm and Rail long is 30" Inch.

  • Diameter Shaft: 15mm
  • Rail length: 30" Inch
  • Block Dynamic load rating: 11.38 KN
  • Block Static load rating: 25.31 KN
  • High repeatability and smooth running performance
  • Stiffness, strength and accuracy for improved production processes




Rail

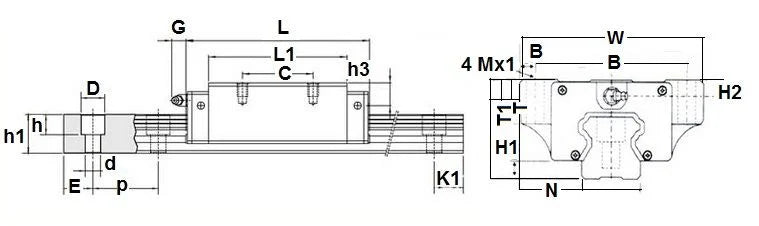

Name		 Rail Dimensions (mm) Block
Name		 Block Dimensions (mm)
H H1 N d D E P W B B1 C L1 L K1 G M T T1 H2 H3
HYR15-762 28 4.3 9.5 4.5 7.5 20 60 HYW15CA 47 38 4.5 30 39.4 61.4 8 53 M5 6 89 3.95 37
