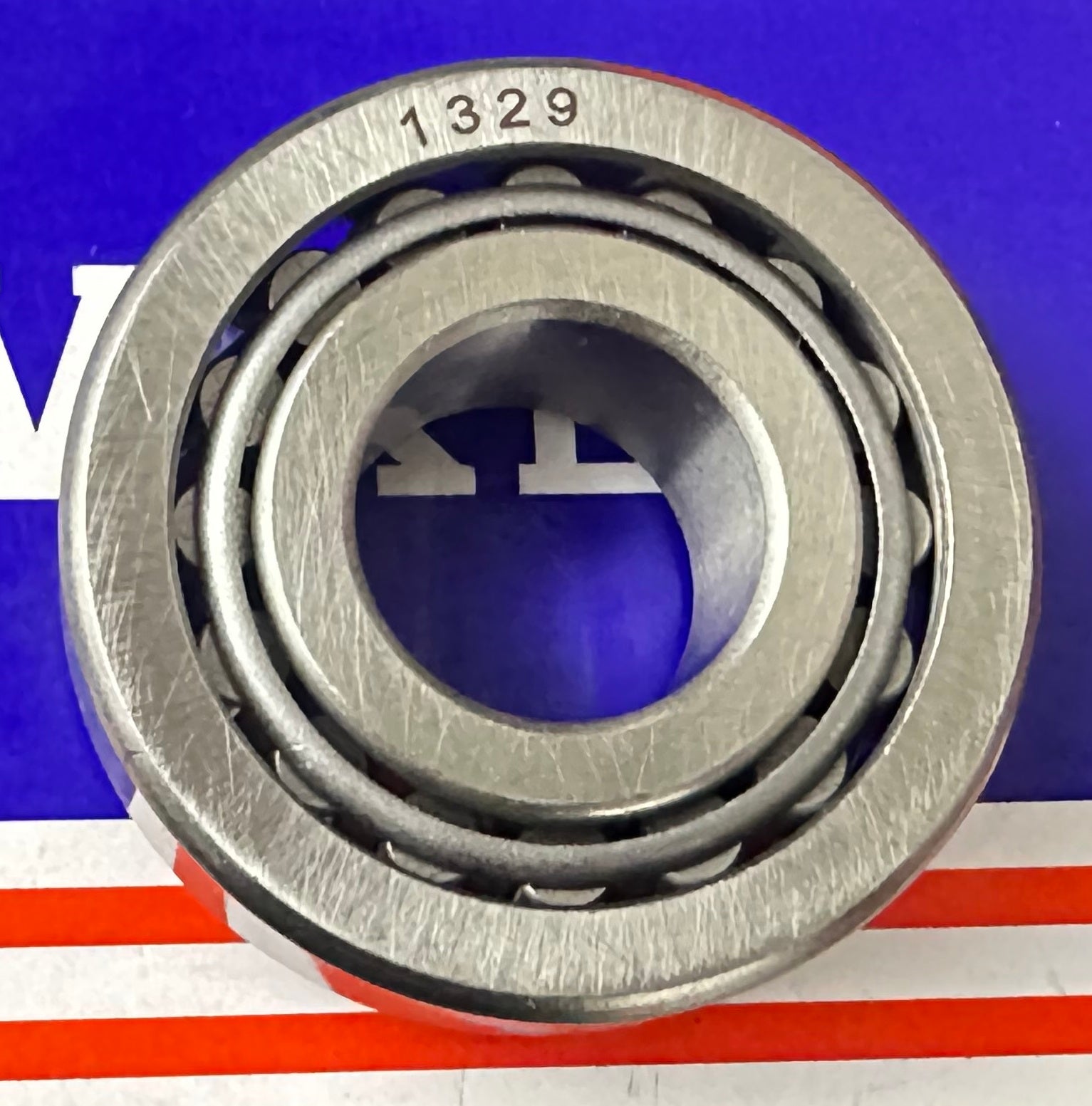

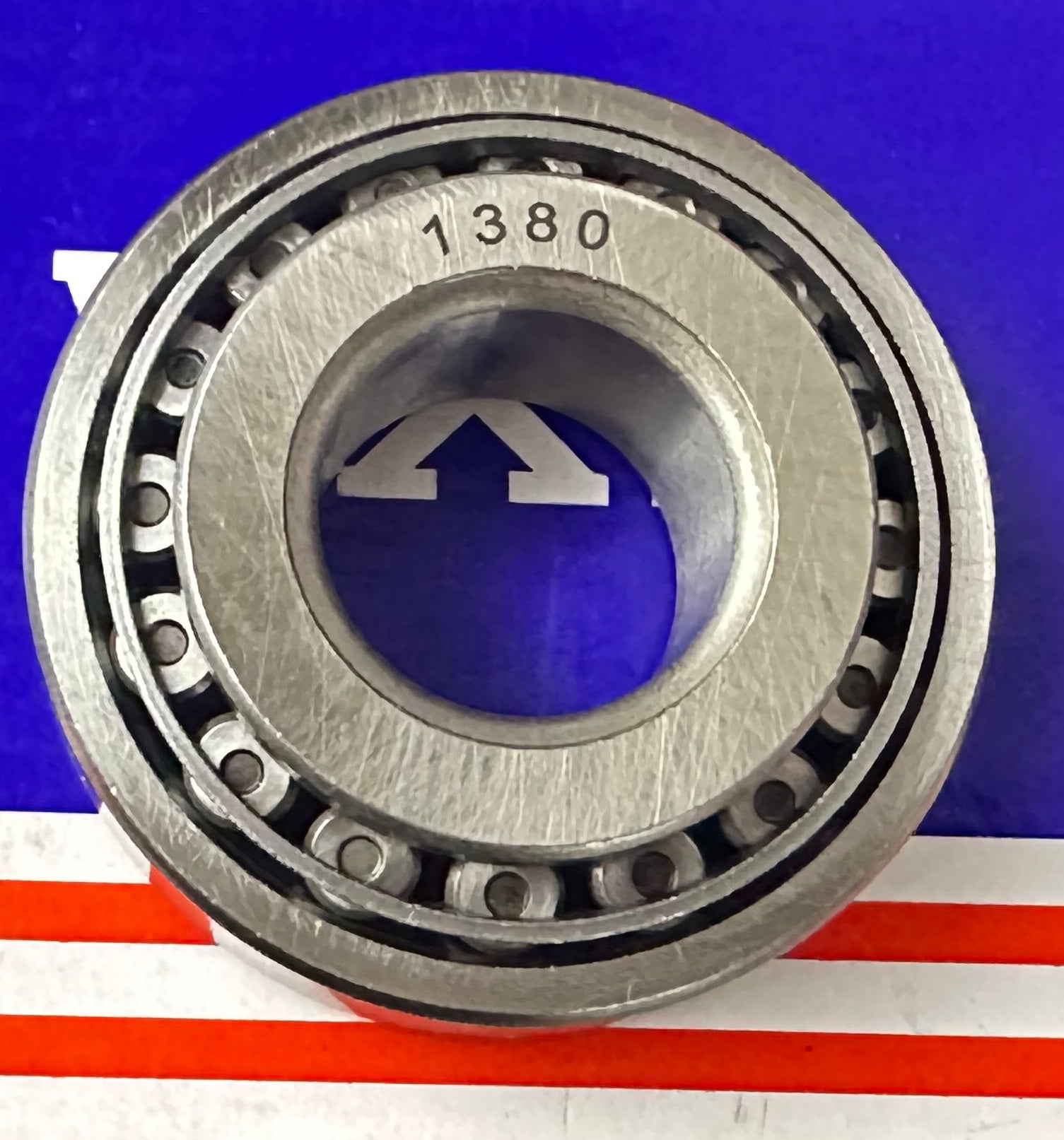

1380/1329 Tapered Roller Bearing 7/8" x 2-1/16" x 0.7625" inch

1380/1329 Tapered Roller Bearing 7/8" x 2-1/16" x 0.7625" inch

Regular price $13.99 USD
Regular price $19.99 USD Sale price $13.99 USD
Sale Sold out
Shipping calculated at checkout.

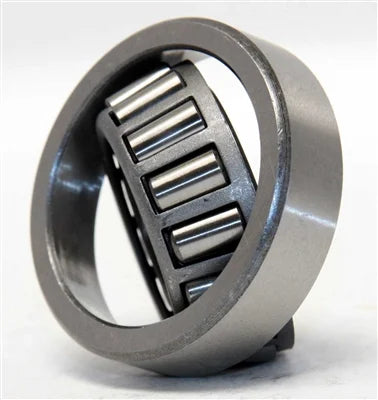

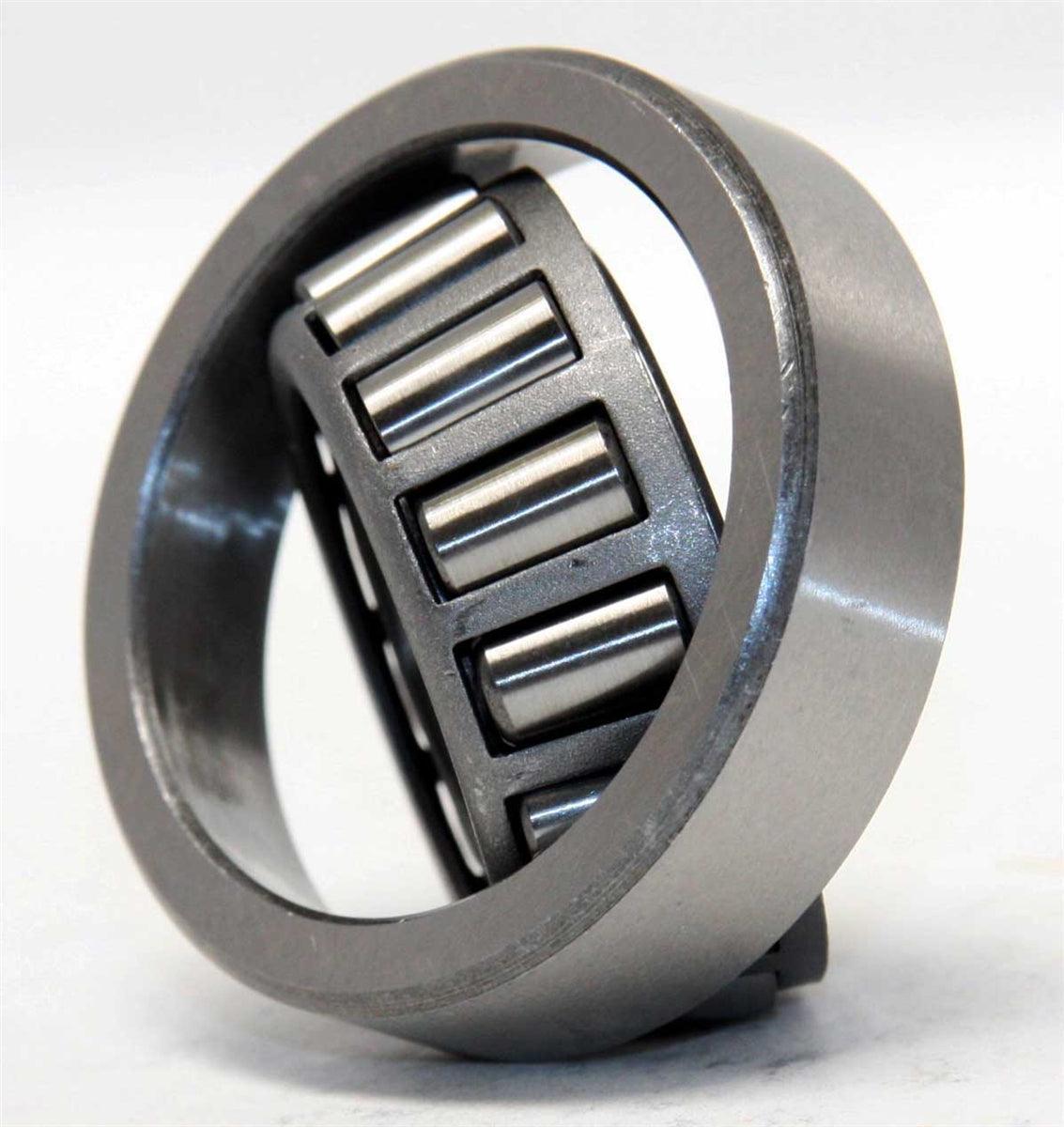

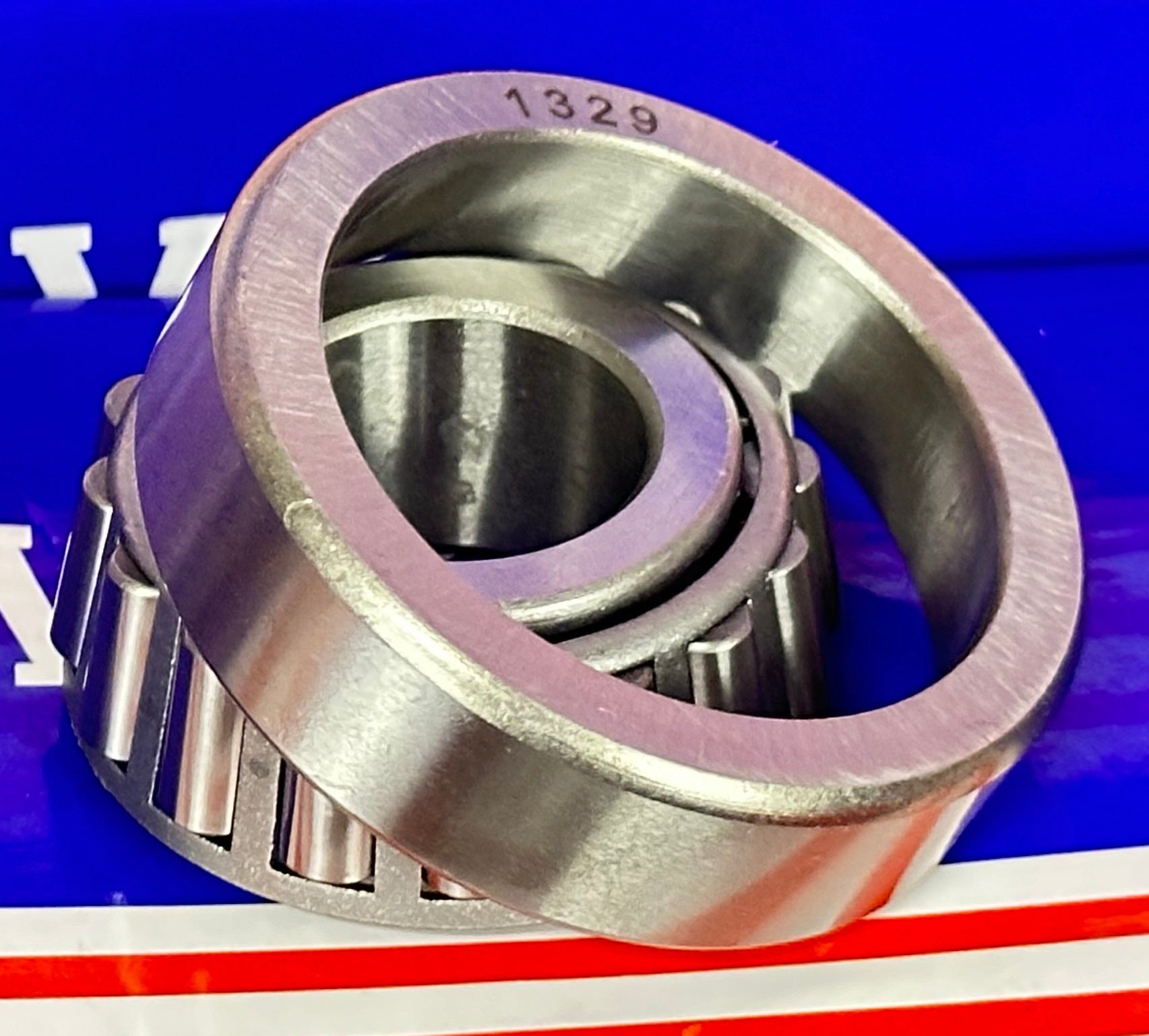

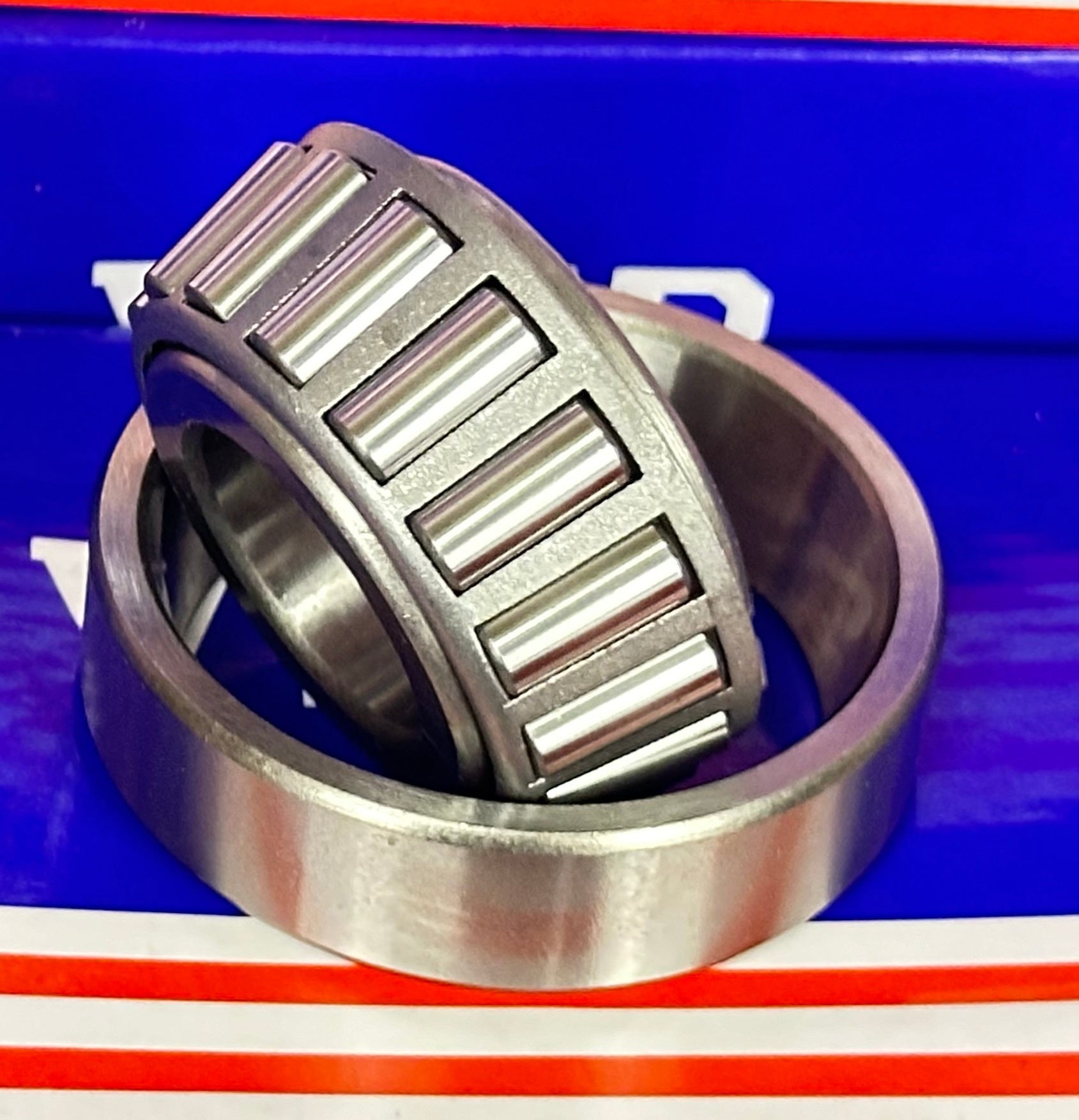

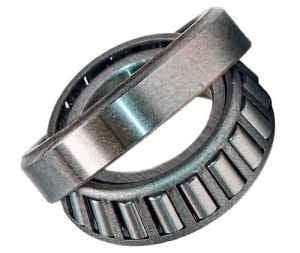

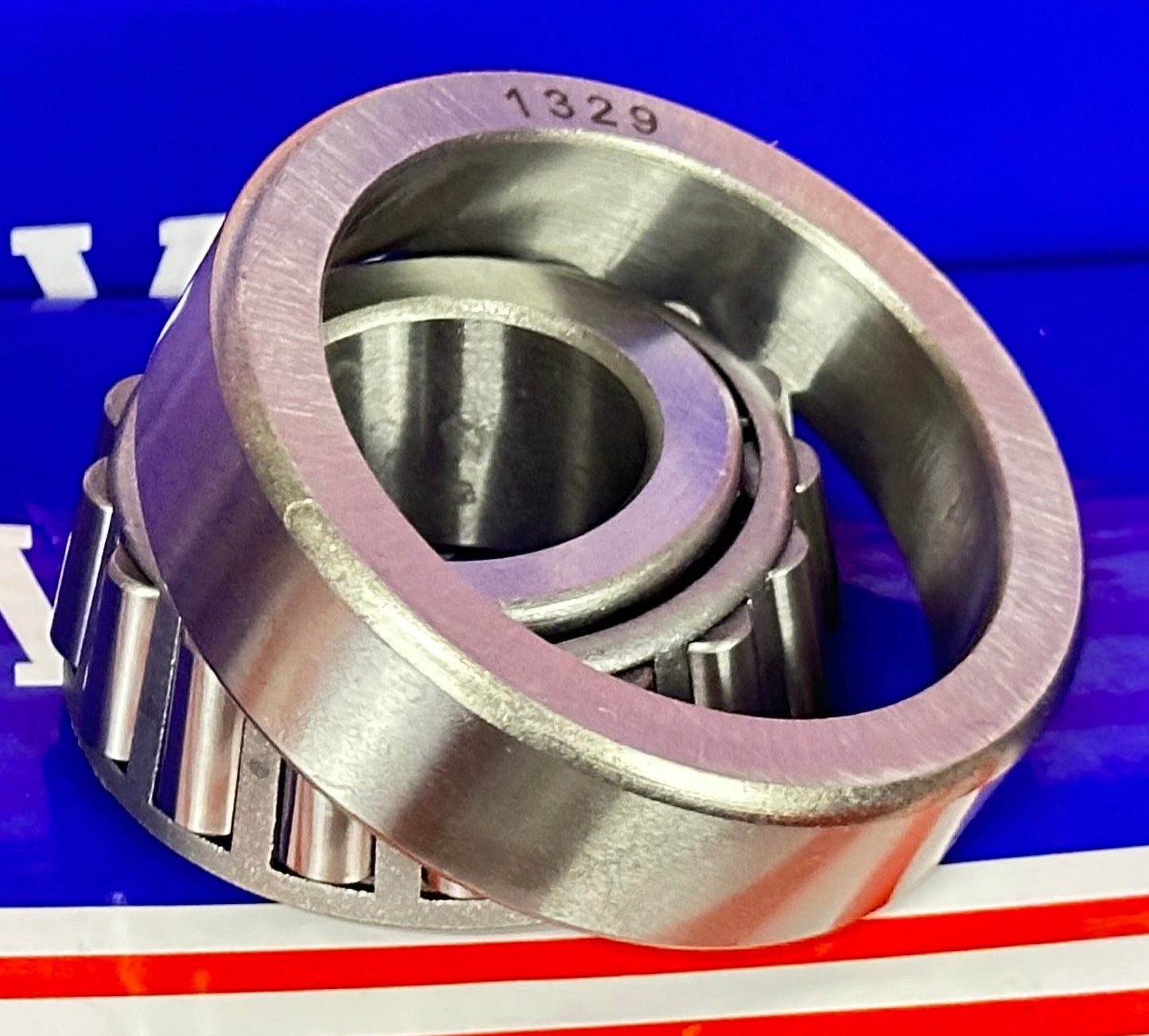

1380/1329 Tapered Roller Bearing – Cone + Cup Set
✔️ 7/8" x 2-1/8" x 0.7625" – Single Row – Chrome Steel

The 1380/1329 is a single-row tapered roller bearing designed to handle both radial and axial loads in one direction. Made from durable 52100 chrome steel, it’s built for strength and longevity, making it a popular choice for wheels, trailers, agricultural equipment, and more.

✅ Bearing type: Single-row tapered roller
✅ Inner diameter (ID): 7/8" (22.225 mm)
✅ Outer diameter (OD): 2-1/8" (53.975 mm)
✅ Width (T): 0.7625" (19.368 mm)
✅ Dynamic load rating (Cr): 12,400 N
✅ Static load rating (Cor): 48,300 N
✅ Material: 52100 Chrome Steel
✅ Includes: One bearing set (cone + cup)
✅ Quantity: 1 bearing

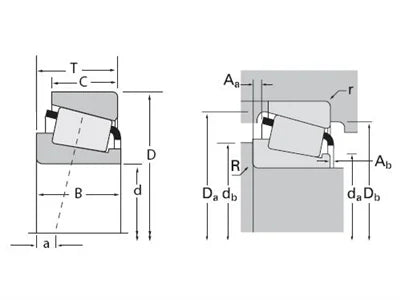

Detailed Dimensions (Inches + Metric):

Description Inch Metric
Bore (d) 0.8750" 22.225 mm
Outer Dia (D) 2.1250" 53.975 mm
Width (T) 0.7625" 19.368 mm
Cone Width (B) 0.7940" 20.168 mm
Cup Width (C) 0.5625" 14.288 mm
Fillet Radius (R/r) 0.06"/0.06" 1.52 mm/1.52 mm
Max Shaft Dia (da) 1.06" 26.92 mm
Min Shaft Dia (db) 1.16" 29.46 mm
Max Housing Bore (Da) 1.93" 49.00 mm
Min Housing Bore (Db) 1.77" 44.96 mm

💡 Why choose tapered roller bearings for wheel assemblies?
Tapered roller bearings manage both radial and thrust loads with precision, making them ideal for wheels and machinery that experience angled forces. Their shape ensures efficient load distribution and long service life.

Tough, compact, and built for load - get this bearing set today and keep your wheel or machinery rolling strong!
