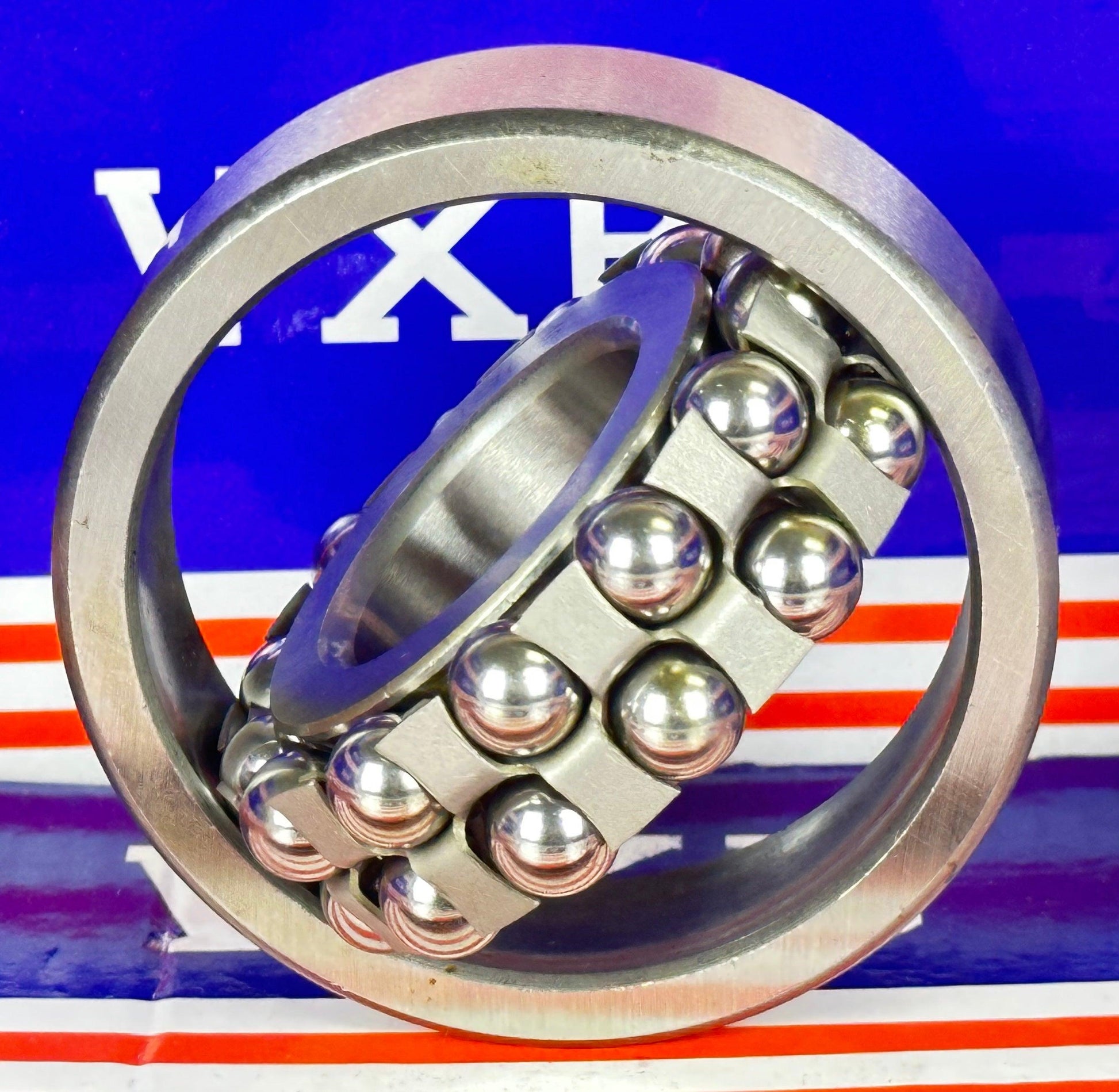

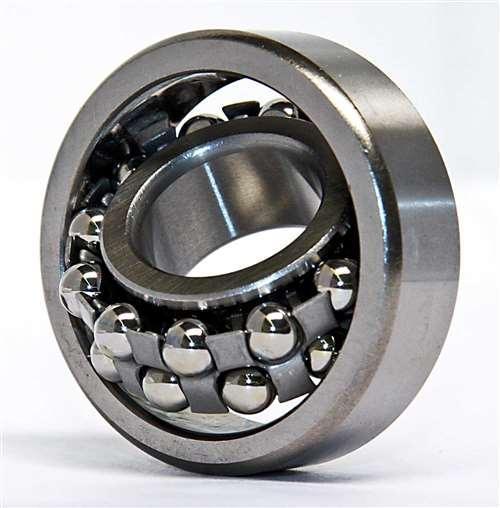

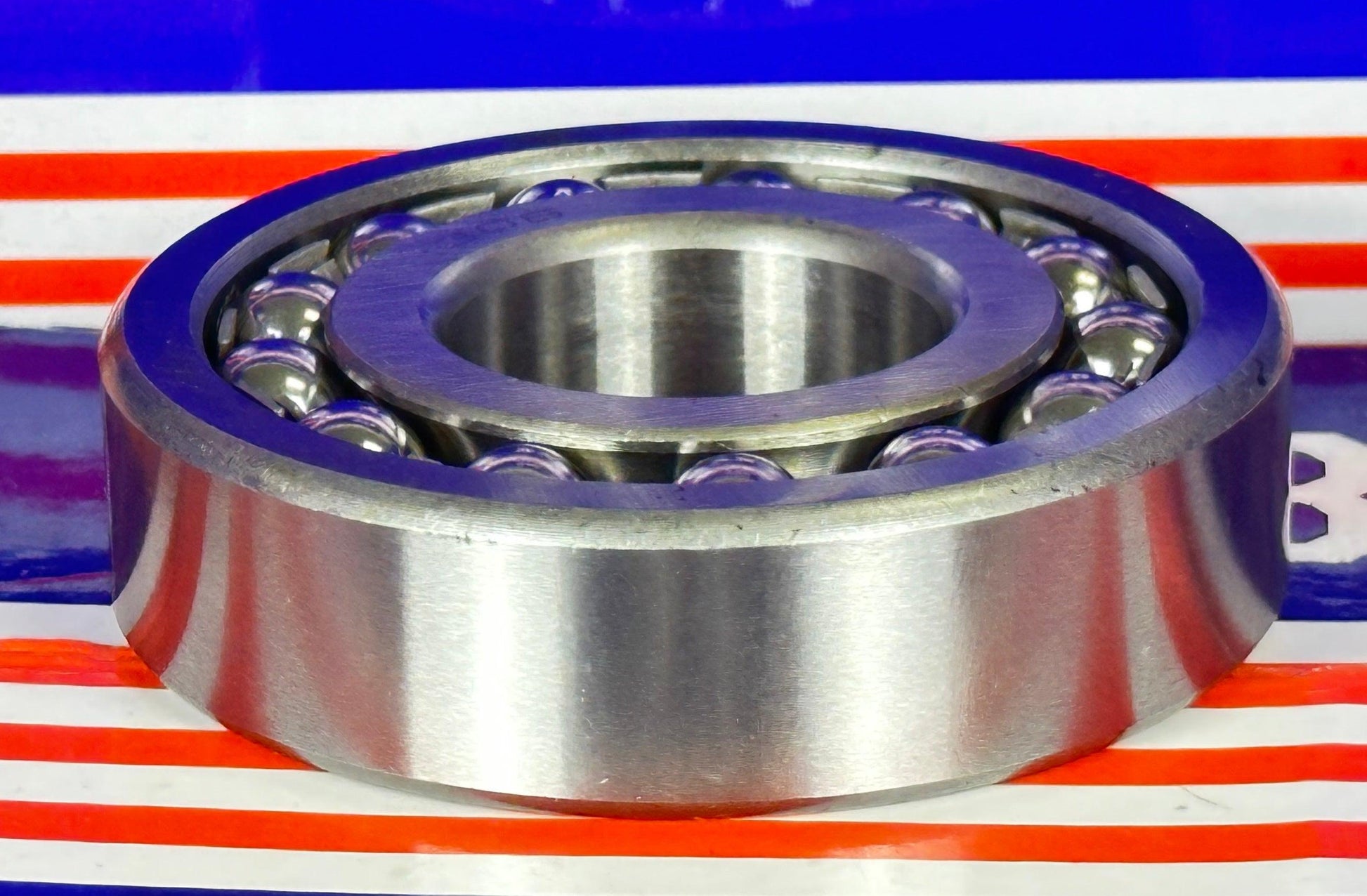

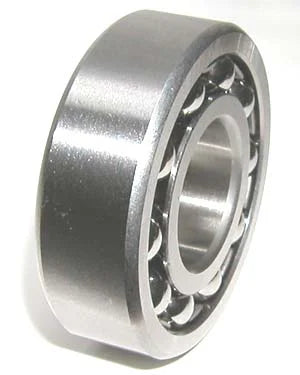

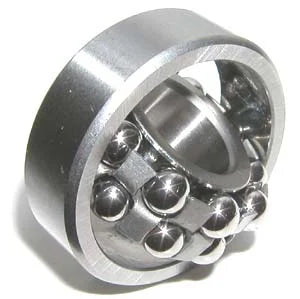

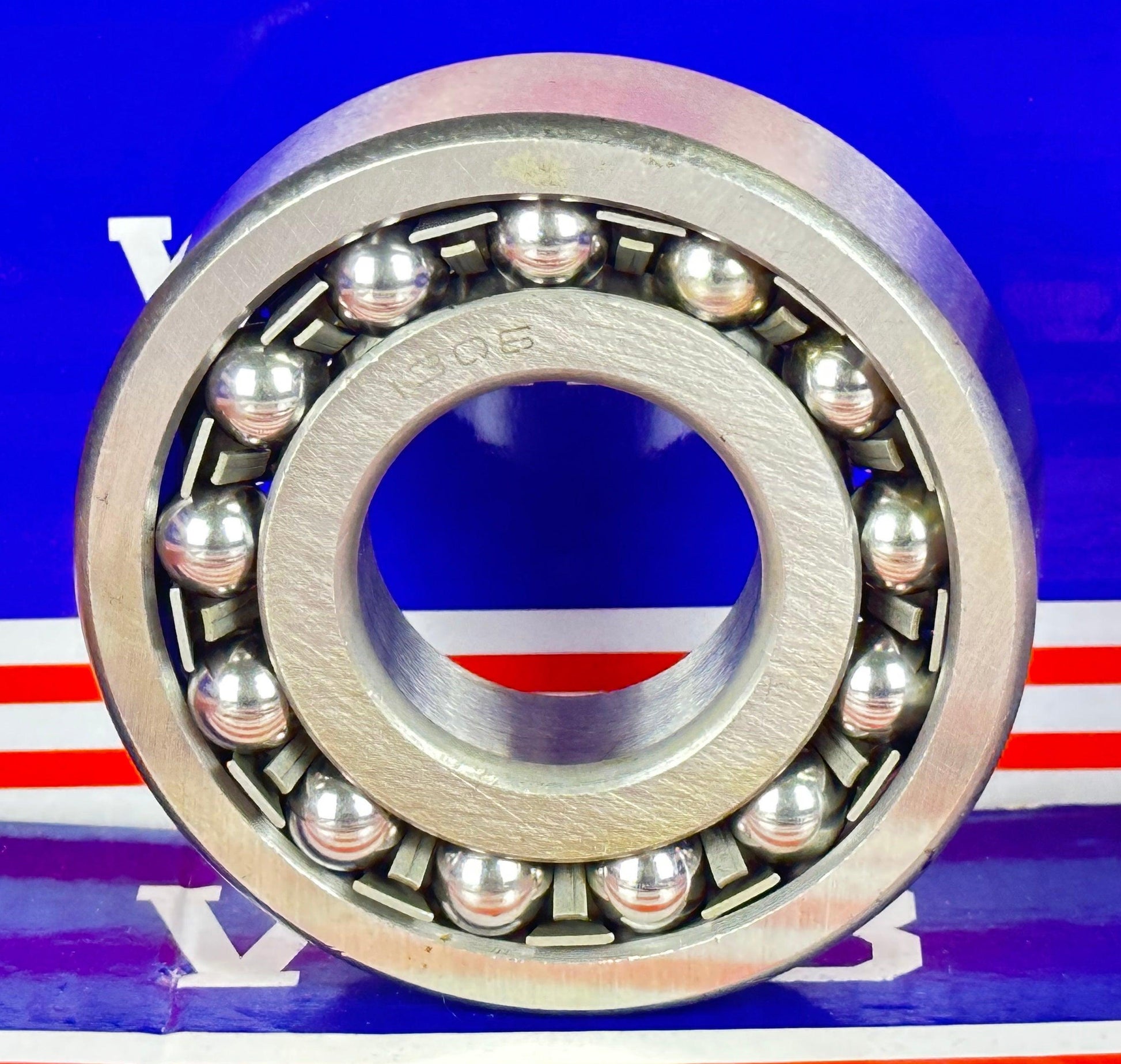

1306 self-aligning ball bearing is designed with a spherical outer raceway that allows the inner ring, balls, and cage to adjust naturally to misalignment. Ideal for applications where shaft deflection or mounting inaccuracies occur, this bearing offers long-lasting performance and smooth operation under dynamic conditions.
- 1306 Ball Bearing
- Self Aligning Bearing
- Dimensions: 30mm x 72mm x 19mm/Metric
- Inner Diameter: 30mm
- Outer Diameter: 72mm
- Width: 19mm
- Size: 30 x 72 x 19 mm
- Quantity: 1 Bearing
- Dynamic load rating C: 21,300 N
- Static load rating Co: 6,300 N
-
Limiting Speed:
- Grease Lubrication: 8,700 RPM
- Oil Lubrication: 11,000 RPM
|
