110TAD20 P4 2 direction Thrust Angular Contact Bearing 110x170x72

110TAD20 P4 Nachi Double-direction Thrust Load Angular Contact Ball Bearing, inner diameter is 110mm, outer diameter is 170mm and width is 72mm, bearing is ABEC-7 quality and made in Japan.

• 110TAD20 P4 Nachi Ball Bearing
• Nachi Thrust Load Angular Contact Ball Bearing
• Quality: ABEC-7
• Dimensions: 110mm x 170mm x 72mm/Metric
• ID (inner diameter)/Bore: 110mm
• OD (outer diameter): 170mm
• Width: 72mm
• Size: 110 x 170 x 72 mm
• Quantity: 1 Bearing
• Dynamic load rating Cr: 81,500 N
• Static load rating Cor: 236,000 N
• Limiting Speed:
  • Grease Lubrication: 2,500 RPM
  • Oil Lubrication: 3,300 RPM
• Made in Japan

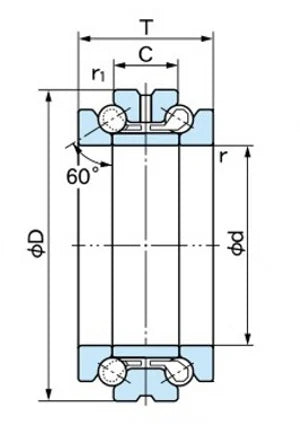

  Dimensions (mm)
  d	D	T	C	r(min)	r1(min)
  110	170	72	36	2	1
