1" inch ID - UCP205-16 + Pillow Block Cast Housing Mounted Bearing

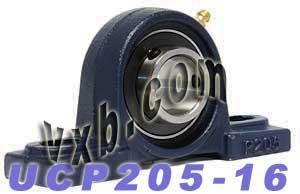

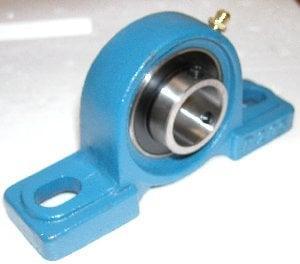

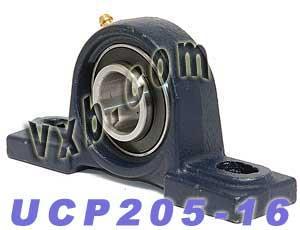

UCP205-16 Pillow Block Bearing
Set Screw Type High-Center Height - 1" Inch Inner Diameter - VXB Bearings

Perfect for industrial and commercial applications, the UCP205-16 Pillow Block Bearing offers high-center height and secure set screw locking for reliable shaft support.

✅ Item: UCP205-16 Bearing
✅ Type: Pillow Block Mounted Bearing
✅ Inner Diameter (ID): 1" Inch
✅ Bolt Size: 3/8" Inch
✅ Basic Dynamic Load Rating (Cr): 14 KN
✅ Basic Static Load Rating (Cor): 7.85 KN
✅ Bearing Number: UC205-16
✅ Housing Number: P205
✅ Quantity: 1 Bearing
✅ Brand: VXB Bearing

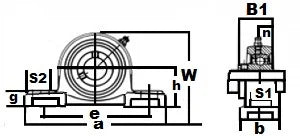

Dimensions (Inches):

• Center Height (h): 1-7/16"

• Base to Center Distance (a): 5-1/2"

• Bolt Hole Distance (e): 4-1/8"

• Base Width (b): 1-1/2"

• Bolt Hole Diameter (S2): 3/4"

• Bolt Slot Width (S1): 1/2"

• Bolt Slot Height (g): 1/2"

• Total Width (W): 2-25/32"

• Bearing Width (B1): 1.339"

• Bolt Hole Size (n): 0.563"

💡 What is the benefit of a pillow block with set screws?
Answer: Set screw locking provides a strong, vibration-resistant hold on the shaft - perfect for maintaining alignment in demanding operations!
