1" Inch Bore Flanged Bearing SBPF205-16
✔️ 3-Bolt Pressed Steel Housing - Compact & Durable

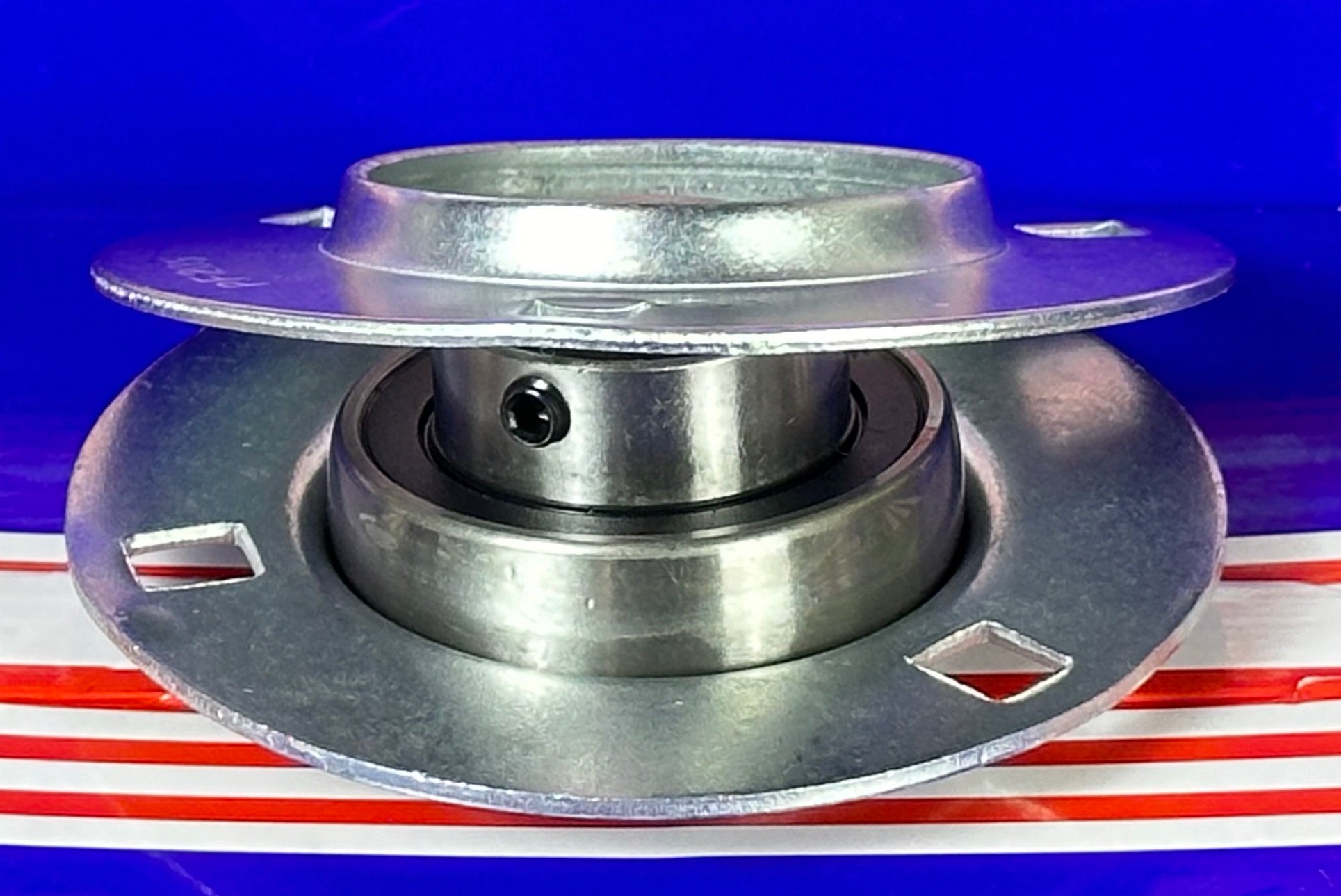

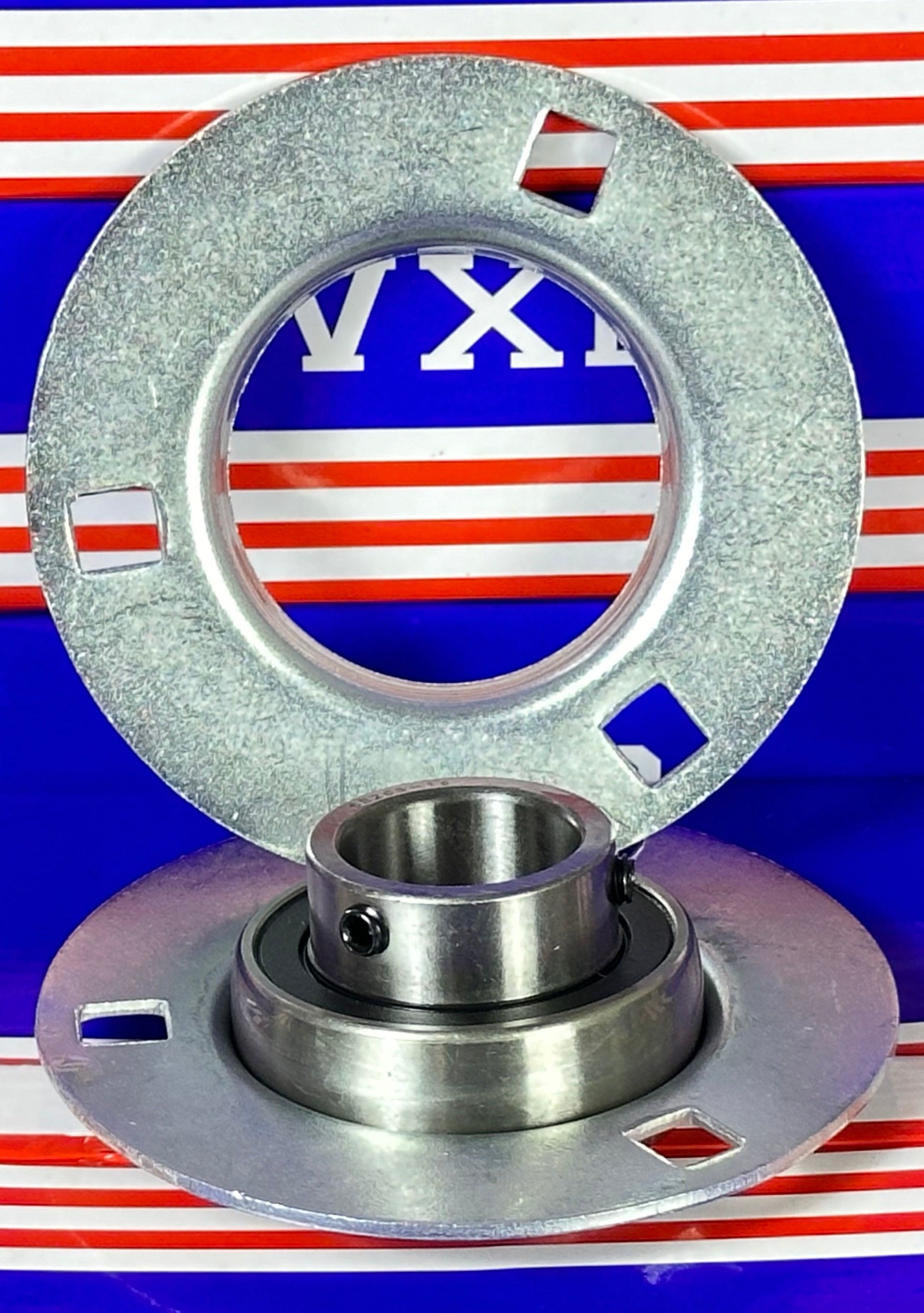

SBPF205-16 is a 3-bolt mounted ball bearing unit with a 1" inch shaft bore and pressed steel flange housing. It’s perfect for lightweight machinery or limited-space applications where strength and simplicity are key.
✅ Shaft diameter: 1" inch
✅ Housing type: 3-bolt pressed/stamped steel flange

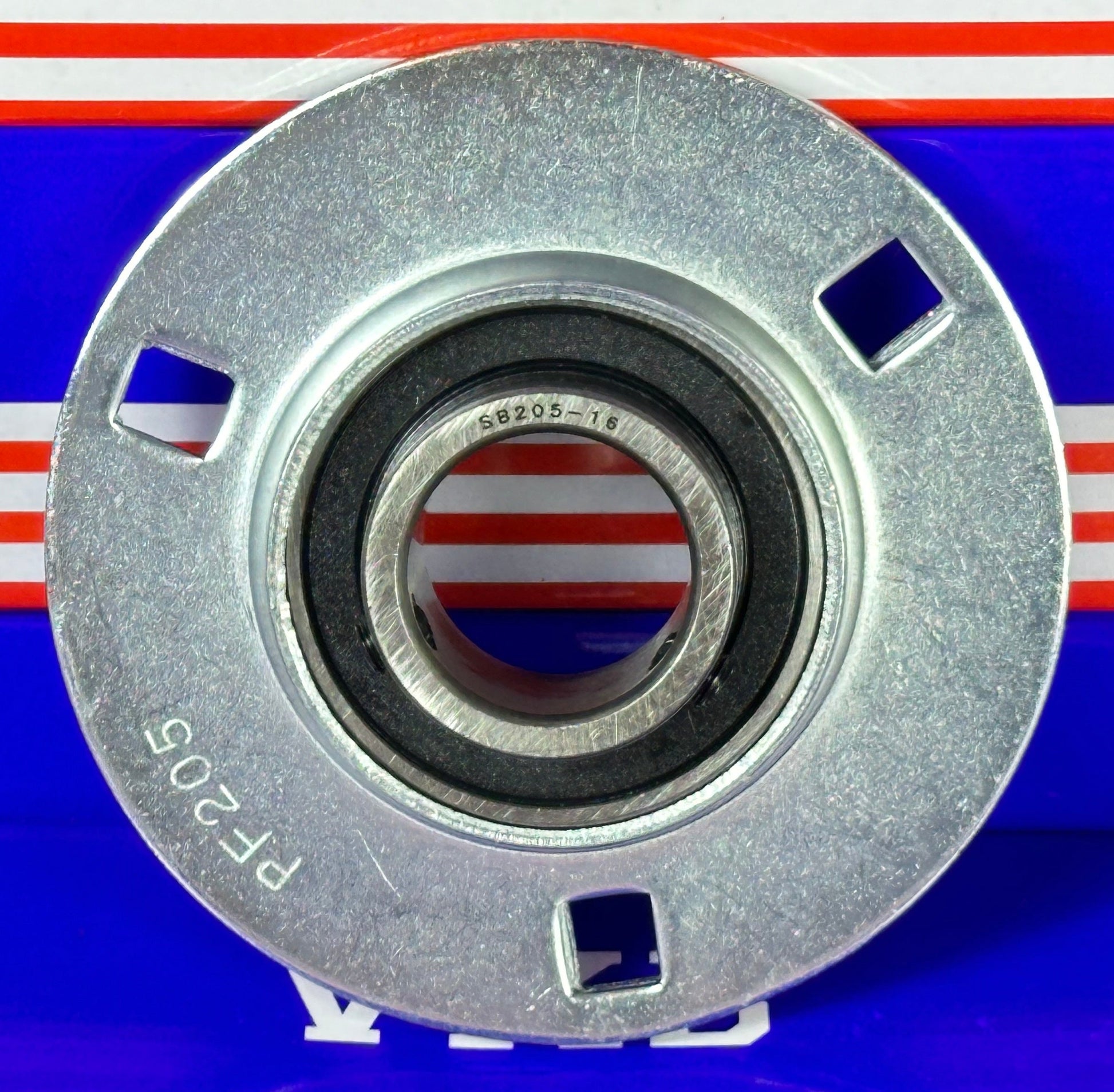

✅ Bearing number: SB205-16
✅ Housing number: PF205
✅ Bolt size: 5/16" inch
✅ Basic dynamic load (Cr): 14 kN
✅ Basic static load (Cor): 7.85 kN
✅ Quantity: 1 bearing unit

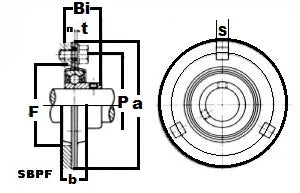

Dimensions (in inches):
| a (Flange Dia.) | p (Bolt Circle) | t (Flange Thickness) | b | s | F | Bi | n |
|---|---|---|---|---|---|---|---|
| 3-3/4" | 3" | 0.079" | 51/64" | 23/64" | 2-3/8" | 1-1/16" | 0.295" |
💡 Why use a pressed steel flanged bearing unit?
Pressed steel flange units like the SBPF205-16 are lightweight, economical, and easy to install, making them ideal for light-duty conveyor systems, agriculture tools, and compact motors.
If your setup needs a reliable, space-saving solution - this is it! Add it to your cart now and keep your equipment moving smoothly!
