1" 2-Bolt Stainless Steel Mounted Bearing Unit SSUCFL205-16

SSUCFL205-16 Mounted Bearing Unit
✔️ 1" Inch ID - 2-Bolt Stainless Steel Flange - One Bearing

The SSUCFL205-16 is a stainless steel mounted bearing unit with a 1" inner diameter and a 2-bolt flange housing. It’s built to resist corrosion and ideal for use in food-grade, washdown, or outdoor environments where strength and hygiene matter.

✅ Inner diameter: 1 inch
✅ 2-bolt flange housing made of stainless steel
✅ Bolt size: M10
✅ Basic dynamic load rating: 14,000 N
✅ Basic static load rating: 7,850 N
✅ Durable and corrosion-resistant for harsh conditions
✅ Sold as one complete mounted unit

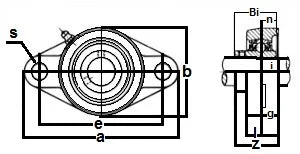

Dimensions (in inches):
✅ a: 5-1/8"
✅ e: 3-57/64"
✅ i: 5/8"
✅ g: 1/2"
✅ l: 1-1/16"
✅ s: 5/8"
✅ b: 2-11/16"
✅ z: 1-5/32"
✅ Bi: 1-21/64"
✅ n: 9/16"

💡 What are mounted bearing units used for?
Mounted bearing units combine a bearing and housing into one easy-to-install assembly. They’re used to support shafts and ensure smooth rotation, especially in environments where cleanliness, moisture resistance, or structural support is critical.

A strong choice for conveyor systems, food processing equipment, or any application exposed to water or chemicals.
